OIL PUMP ('76-'78 A3/A4/A5)
S3 MACH II 1974 USA CANADA

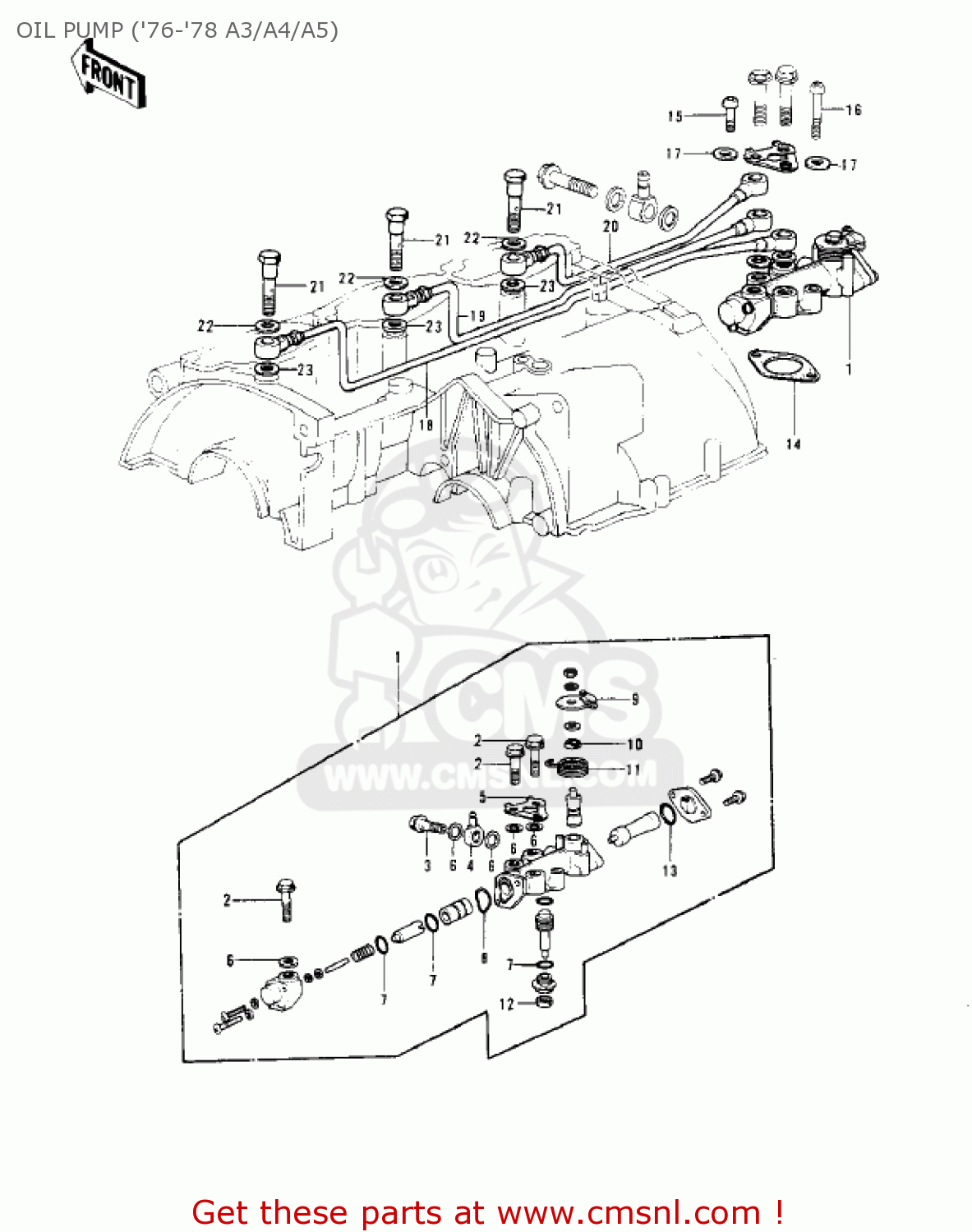

Oil pump ('76-'78 a3/a4/a5) diagram S3 MACH II 1974 USA CANADA
OIL PUMP ('76-'78 A3/A4/A5) S3 MACH II 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
160821009
ref: 1
PUMP ASSY,OIL
€ 152.50
2
92060008
ref: 2
BOLT-BANJO
€ 11.50
3
92060009
ref: 3
BOLT-BANJO
€ 13.50
4
92061015
ref: 4
FITTING,BANJO
€ 12.50
5
92024058
ref: 5
WASHER,LOCK,OIL PUMP
€ 6.00
6
92022077
ref: 6
WASHER,6.1X12X1
€ 0.50
7
16090002
ref: 7
RING-O,OIL PUMP SHAFT
€ 4.50
8
16088002
ref: 8
RING-O,CAP,BANJO SIDE
€ 6.50
9
16096011
ref: 9
LEVER,OIL PUMP CABLE
€ 9.50
10
920491294
ref: 10
SEAL-OIL,CAMSHAFT,"X"
€ 7.50
11
16093002
ref: 11
SPRING-OIL PUMP LEVER
€ 2.50
12
16091001
ref: 12
OIL SEAL-OIL PUMP SHT
€ 4.50
13
16090003
ref: 13
RING-O,CAP,LWR
€ 7.50
14
110601160
ref: 14
GASKET,OIL PUMP (NAS)
€ 3.00
15
220B0514
ref: 15
ACREW-PAN HEAD,5X14
€ 2.50
16
220B0528
ref: 16
SCREW-PAN-CROS
€ 0.50
17
92022037
ref: 17
WASHER,5.5X10.5X0.8
€ 2.50
18
16134012
ref: 18
PIPE-OIL,L.H
€ 37.50
19
16134013
ref: 19
PIPE-OIL,CENTER
€ 37.50
20
16134014
ref: 20
PIPE-OIL,R.H
€ 34.00
21
9206001079
ref: 21
BOLT-BANJO,CR
€ 19.00
22
92065058
ref: 22
GASKET, 10,5X16X1 (NAS)
€ 2.50
23
92065023
ref: 23
GASKET-CHECK VALVE (NAS)
€ 3.00
