CHASSIS ELECTRICAL EQUIPMENT ('7

S3 MACH II 1974 USA CANADA

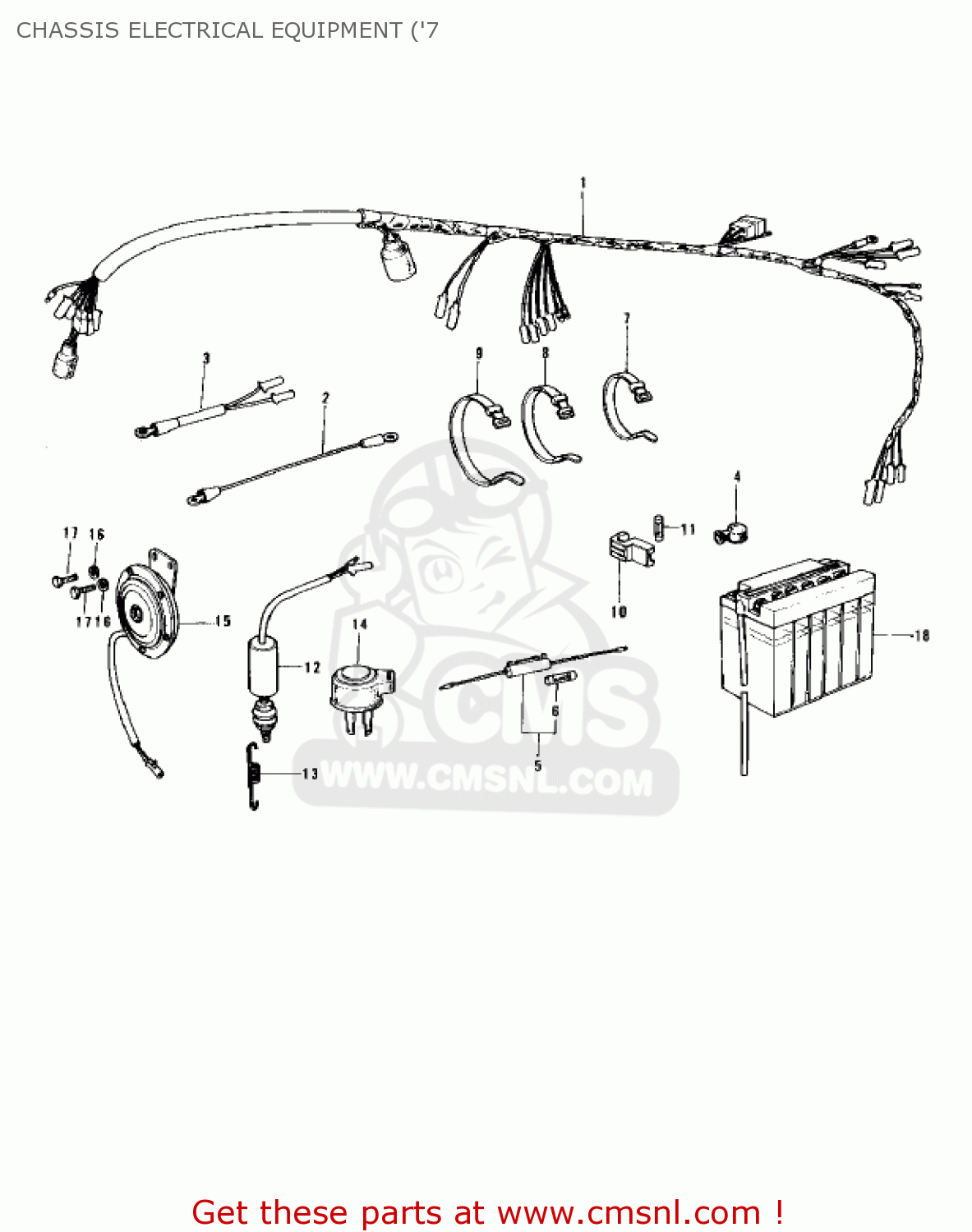

Chassis electrical equipment ('7 diagram S3 MACH II 1974 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 S3 MACH II 1974 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('7 S3 MACH II 1974 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('7 S3 MACH II 1974 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
26001104
ref: 1
WIRING HARNES,MAIN
€ 161.50
2
26010107
ref: 2
S3
UNAVAILABLE IN PRICE BOOK
€ 0.00
2
26011084
ref: 2
S3-A
WIRE,GROUND LEAD
€ 10.50
3
26010033
ref: 3
WIRE,LEAD
26010033
€ 10.00
4
92073001
ref: 4
CAP-BAT TERMINAL RUBB
€ 8.50
5
26004013
ref: 5
FUSE-ASSY
€ 6.50
6
26006002
ref: 6
FUSE 20A
26006002
€ 2.00
7
92072030
ref: 7
BAND,SHORT
92072030
€ 3.00
8
92072031
ref: 8
BAND,MIDDLE
92072031
€ 3.00
9
92072056
ref: 9
BAND,RUBBER
92072056
€ 3.00
10
26016002
ref: 10
HOLDER-SPARE FUSE
26016002
€ 5.50
11
26006002
ref: 11
FUSE 20A
26006002
€ 2.00
12
27010020
ref: 12
S3
SWITCH,BRAKE LAMP
27010020
€ 29.50
12
27010015
ref: 12
S3-A
SWITCH,BRAKE LAMP
27010015
€ 23.00
13
27011013
ref: 13
SPRING-BRAKE LAMP SW
27011013
€ 9.50
14
27002011
ref: 14
RELAY-ASSY,TURN SIGNA
27002011
€ 69.50
15
27003042
ref: 15
HOON
€ 110.50
16
461F0800
ref: 16
WASHER-SPRING,8MM
461F0800
€ 0.50
17
115G0816
ref: 17
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
18
26012022
ref: 18
12N5.5-4A
BATTERY 12V 6AH
€ 58.00
