CLUTCH ('76-'78 A3/A4/A5)
S3 MACH II 1974 USA CANADA

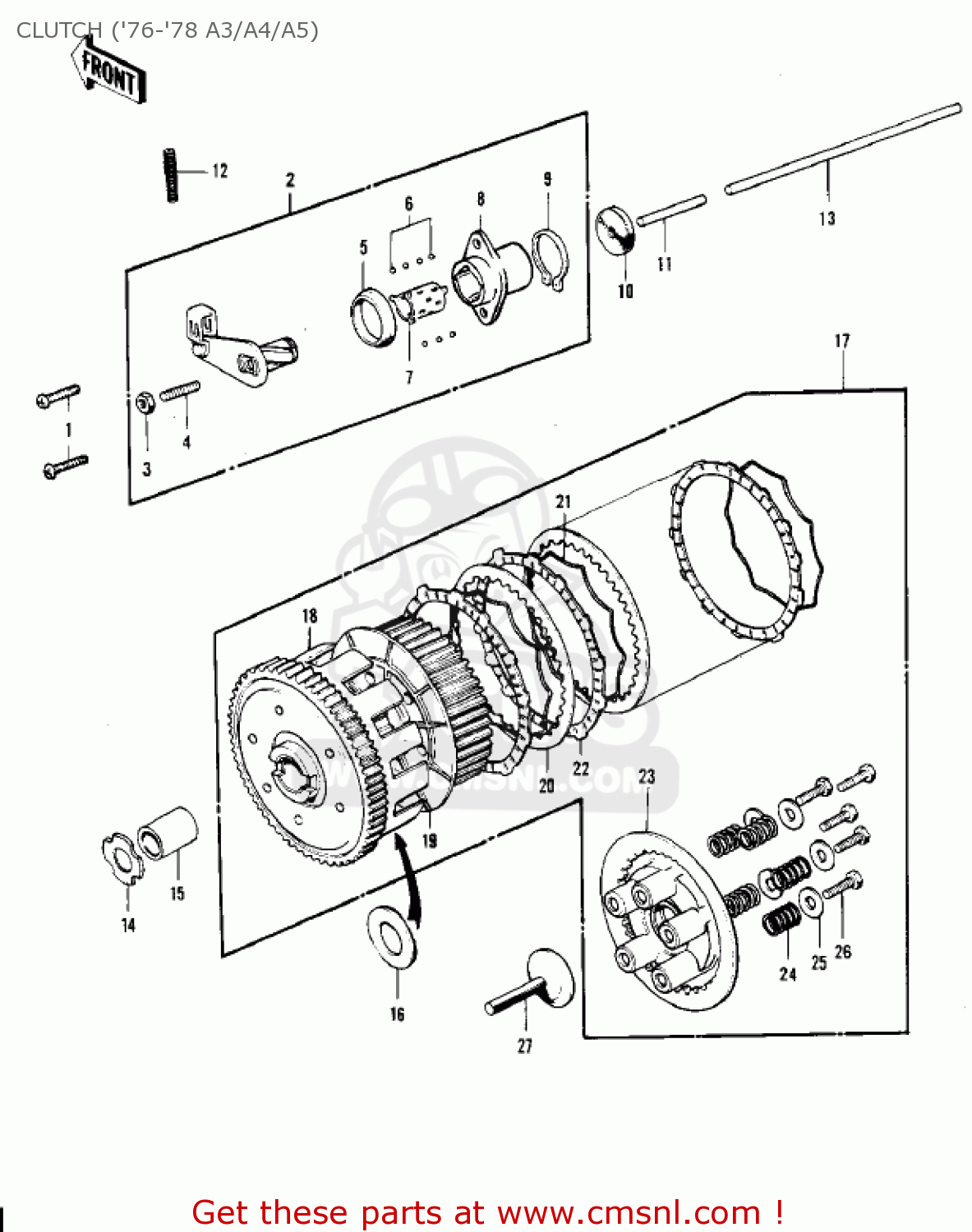

Clutch ('76-'78 a3/a4/a5) diagram S3 MACH II 1974 USA CANADA
CLUTCH ('76-'78 A3/A4/A5) S3 MACH II 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0616
ref: 1
SCREW-PAN HEAD,6X16
€ 2.50
2
132311001
ref: 2
RELEASE ASSY,CLUTCH
€ 34.00
3
311B0600
ref: 3
NUT,6MM
€ 0.50
4
291Z0625
ref: 4
SCREW-SLOTTED,6X25
€ 3.50
5
92056007
ref: 5
OIL SEAL
€ 7.00
6
600A0400
ref: 6
BALL-STEEL,1/8
€ 2.00
7
13197006
ref: 7
RETAINER
€ 6.50
8
13118015
ref: 8
OUTER,CLUTCH RELEASE
€ 20.50
9
480J1500
ref: 9
CIRCLIP-TYPE-C,15MM
€ 1.00
10
92050040
ref: 10
OIL SEAL,TC7297
€ 15.00
11
13116010
ref: 11
ROD-CLUTCH PUSH SHORT
€ 10.50
12
92081096
ref: 12
SPRING-CLUTCH RELEASE
€ 3.50
13
13116019
ref: 13
ROD-CLUTCH PUSH,LONG
€ 7.50
14
92022119
ref: 14
WASHER-THRUST
€ 4.50
15
92028045
ref: 15
BUSH-CLUTCH
€ 5.50
16
92022189
ref: 16
WASHER-PLAIN,20MM
€ 4.00
17
130811070
ref: 17
CLUTCH-ASSY
€ 359.50
18
130951040
ref: 18
HOUSING COMP CLUTCH
€ 203.50
19
13087036
ref: 19
HUB,CLUTCH
€ 57.00
20
13089003
ref: 20
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
21
13229002
ref: 21
SPRING,CLUTCH STEEL
€ 7.50
22
130881015
ref: 22
PLATE-FRICTION (NAS)
€ 11.50
23
13187004
ref: 23
PLATE-CLUTCH OPERATIN (NAS)
€ 24.50
24
92081095
ref: 24
SPRING-CLUTCH
€ 8.50
25
92022167
ref: 25
WASHER-PLAIN,5MM
€ 1.50
26
92003078
ref: 26
BOLT,5X18
€ 2.00
27
13116016
ref: 27
ROD-PUSH,CLUTCH SPRIN
€ 11.50
