TRANSMISSION/CHANGE DRUM
S2A MACH II 1973 USA

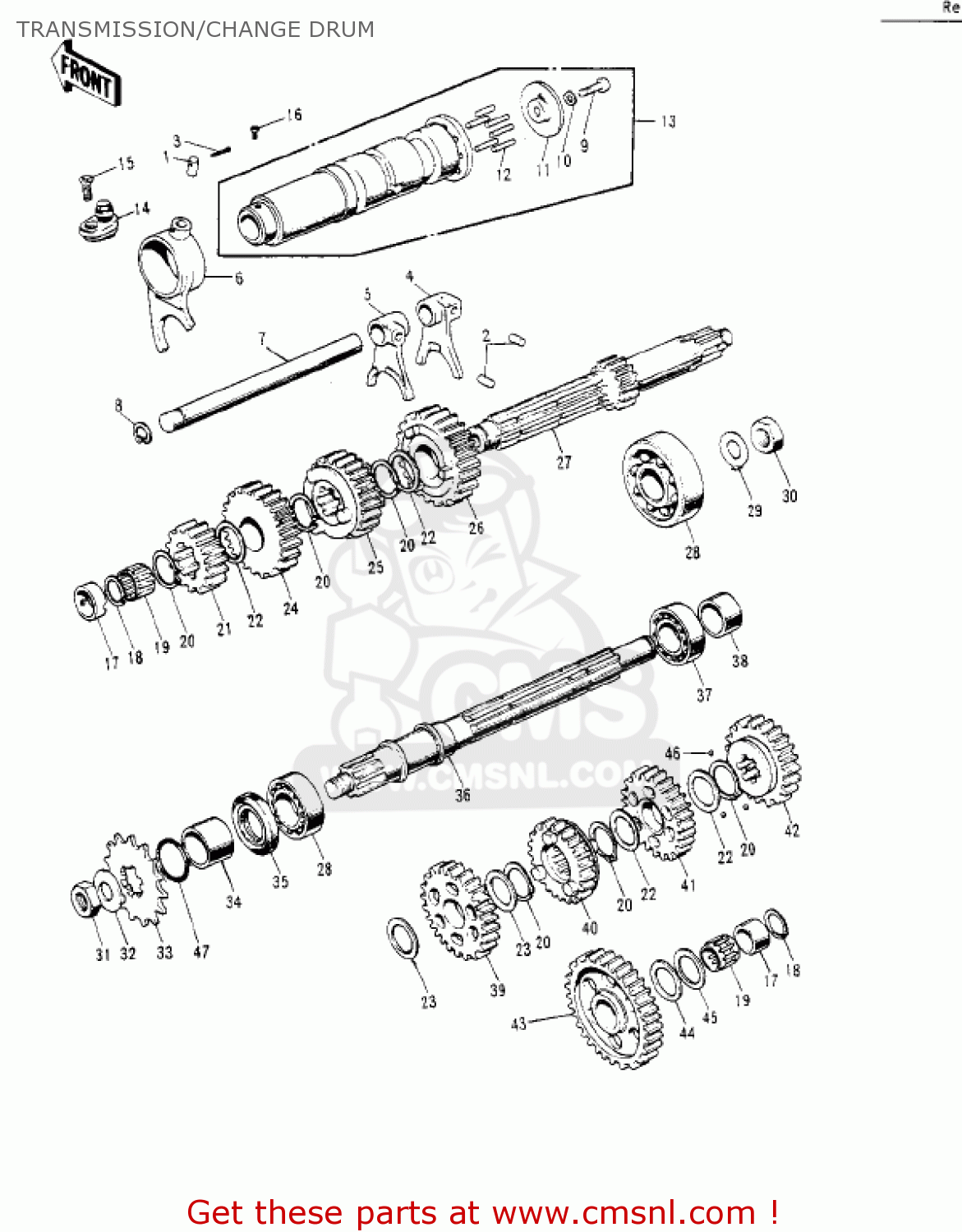

Transmission/change drum diagram S2A MACH II 1973 USA
TRANSMISSION/CHANGE DRUM S2A MACH II 1973 USA
×
prices are in EUR
ref
part #
description
quantity
1
92042021
ref: 1
PIN,DOWEL,8X18
€ 7.00
2
92042022
ref: 2
DOWEL PIN,8X16
€ 1.00
3
550D3020
ref: 3
PIN-COTTER,3.0X20
€ 2.00
4
13140053
ref: 4
FORK-SELECTOR,LOW
€ 71.50
5
13140054
ref: 5
FORK-SELECTOR,2ND&3RD
€ 59.00
6
13140037
ref: 6
FORK-SELECTOR,4TH&TOP
€ 105.00
7
13209006
ref: 7
ROD-SHIFT
€ 8.00
8
482J0100
ref: 8
CIRCLIP-TYPE-E,10MM
€ 0.50
9
220B0614
ref: 9
SCREW-PAN HEAD,6X14
€ 2.00
10
464H0600
ref: 10
WASHER-LOCK,6MM
€ 0.50
11
13142008
ref: 11
PLATE-CHANGE DRUM PIN
€ 4.00
12
92042014
ref: 12
PIN-GEAR CHANGE DRUM
€ 0.50
13
13239003
ref: 13
DRUM ASSY-GEAR CHANGE
€ 129.00
14
13151021
ref: 14
SWITCH,NEUTRAL
€ 16.50
15
221B0616
ref: 15
SCREW-CNTSNK HD,6X16
€ 0.50
16
211B0406A
ref: 16
SCREW-PAN HEAD,4X6
€ 1.50
17
92028043
ref: 17
BUSH-TRANSMISSION
€ 18.00
18
92033009
ref: 18
CIRCLIP,17MM
€ 2.00
19
92046005
ref: 19
BEARING,#KT172113
€ 13.00
20
92033025
ref: 20
CIRCLIP,25MM
€ 3.00
21
13130028
ref: 21
2ND GEAR-DRIVE SHAFT
€ 61.50
22
92024034
ref: 22
WASHER,TOOTHED,25.5X2
€ 2.50
23
92024035
ref: 23
WASHER-LOCK
€ 6.00
24
13136038
ref: 24
TOP GEAR-DRIVE SHAFT
€ 54.50
25
13132027
ref: 25
3RD GEAR-DRIVE SHAFT
€ 88.00
26
13134013
ref: 26
4TH GEAR-DRIVE SHAFT
€ 73.50
27
13127034
ref: 27
SHAFT-DRIVE
€ 192.00
28
92045010
ref: 28
BEARING-BALL,#6205NX3
€ 23.00
29
92024046
ref: 29
WASHER,LOCK,14MM
€ 2.00
30
315B1400
ref: 30
NUT,14MM
€ 1.00
31
92015019
ref: 31
NUT,18MM
€ 4.00
32
92024067
ref: 32
WASHER,LOCK
€ 2.00
33
13144035
ref: 33
ENGINE SPROCKET,14T
€ 29.50
33
13144030
ref: 33
SPROCKET-OUTPUT,15T
€ 29.50
34
920261024
ref: 34
SPACER-ENG SPROCKET
€ 13.00
35
92050024
ref: 35
OIL SEAL SC325210
€ 5.00
36
131285004
ref: 36
SHAFT,OUTPUT
€ 98.50
37
601B6005
ref: 37
BEARING-BALL,#6005C3
€ 11.50
38
92027135
ref: 38
COLLAR
€ 3.50
39
13131034
ref: 39
2ND GEAR-OUTPUT SHAFT
€ 57.00
40
13137022
ref: 40
TOP GEAR-OUTPUT SHAFT
€ 98.50
41
13133027
ref: 41
3RD GEAR-OUTPUT SHAFT
€ 71.00
42
13135017
ref: 42
4TH GEAR-OUTPUT SHAFT
€ 61.00
43
13129038
ref: 43
LOW GEAR-OUTPUT SHAFT
€ 107.00
44
92026021
ref: 44
WASHER-THRUST
€ 9.00
45
92022075
ref: 45
WASHER,17MM
€ 4.50
46
600A0500
ref: 46
BALL-STEEL,5/32
€ 0.50
47
92055035
ref: 47
O RING
€ 3.00
