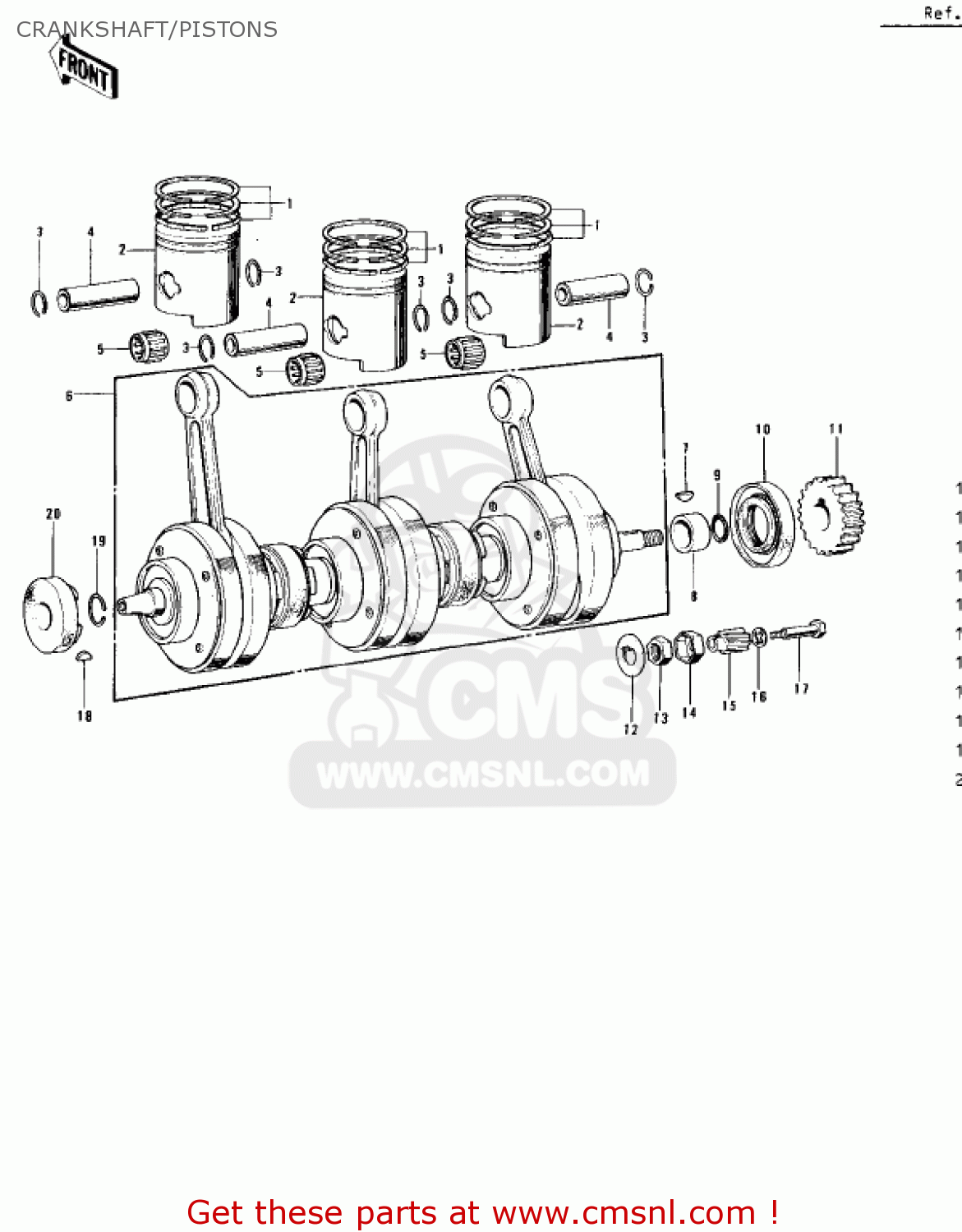

CRANKSHAFT/PISTONS

ref

part #

description

quantity

1

13008039
ref: 1

RING-SET-PISTON,STD

€ 66.50

1

13025043
ref: 1

RING-SET-PISTON L,O/S

€ 75.00

1

13024047
ref: 1

RING SET,0.040" O.S

€ 45.50

2

13001043
ref: 2

PISTON,STD

€ 57.00

2

13029052
ref: 2

PISTON,0.020' O.S

€ 42.00

2

13027050
ref: 2

PISTON,0.040' O.S

€ 51.00

3

92036005
ref: 3

CIRCLIP-PISTON PIN

€ 2.50

4

13002002A
ref: 4

PISTON PIN

€ 6.00

5

13033007
ref: 5

BEARING-NEEDLE,KTV151

€ 30.00

6

130311008
ref: 6

CRANK & CONROD ASSY

€ 598.00

7

92038015
ref: 7

WOODRUFF KEY

€ 3.50

8

92027031
ref: 8

COLLAR-CRANK OIL SEAL

€ 17.50

9

92055018
ref: 9

RING-O,22MM

€ 2.50

10

92050052
ref: 10

OIL SEAL,TC326210

€ 28.00

11

13121021
ref: 11

PINION-PRIMARY

€ 89.50

12

92024067
ref: 12

WASHER,LOCK

€ 2.00

13

92015019
ref: 13

NUT,18MM

€ 4.00

14

92024021
ref: 14

WASHER-LOCK

€ 8.50

15

16084014
ref: 15

PINION-OIL PUMP

€ 27.50

16

463H0600
ref: 16

WASHER-LOCK,6MM

€ 0.50

17

92003068
ref: 17

BOLT-OIL PUMP GEAR

€ 3.00

18

92038001
ref: 18

WOODRUFF KEY

€ 3.00

19

92036013
ref: 19

CIRCLIP

€ 2.00

20

92050041
ref: 20

OIL SEAL,TCY256210

€ 17.50

all assemblies
