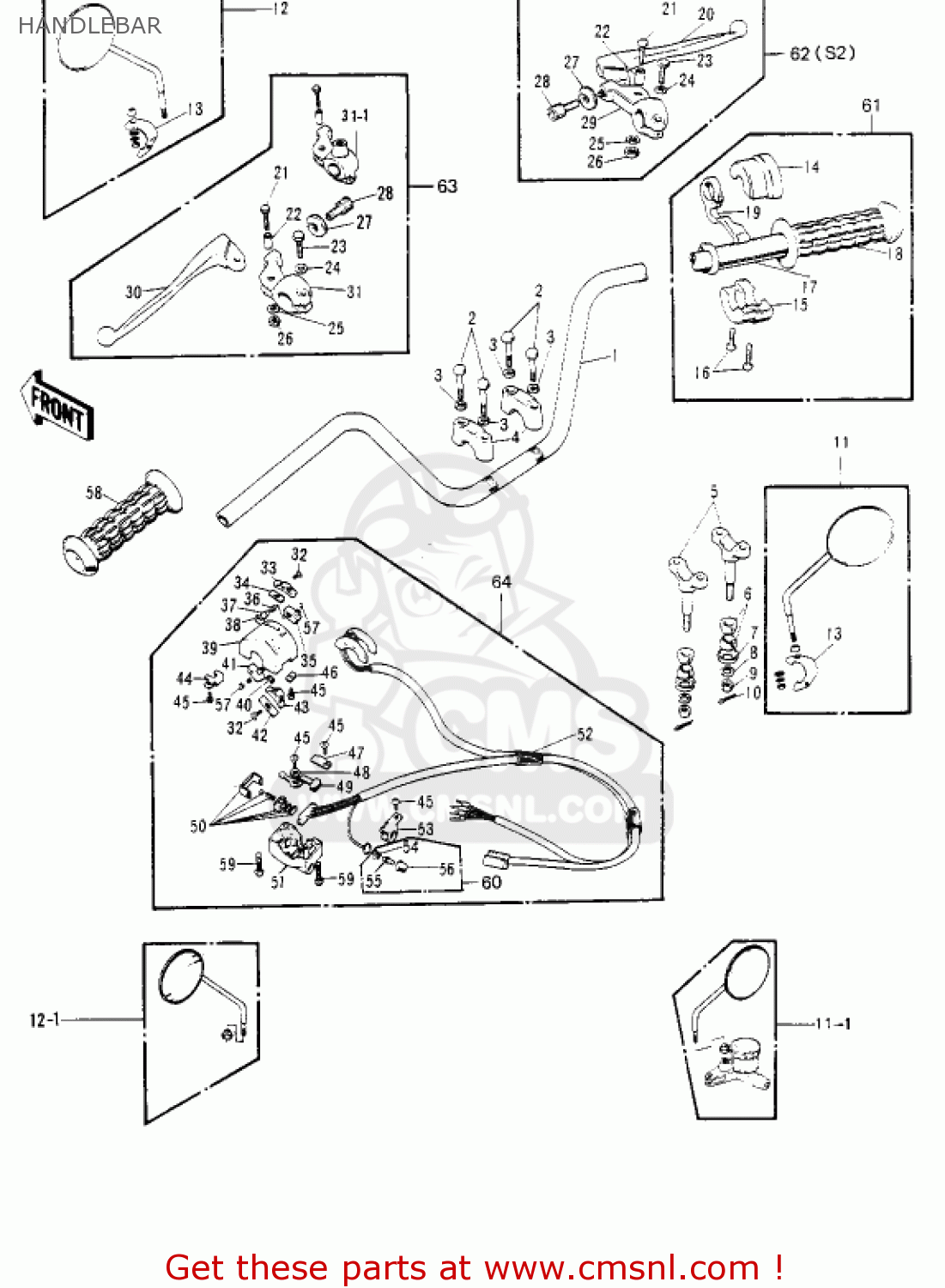

HANDLEBAR

ref

part #

description

quantity

1

46003026
ref: 1
S2

HANDLEBAR

€ 38.50

1

46003030
ref: 1
S2-A

HANDLE

€ 136.00

2

920011405
ref: 2

BOLT,8X38

€ 10.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

46012008
ref: 4

HOLDER-HANDLE,UPP

€ 23.00

5

46012010
ref: 5

HOLDER-HANDLE,LWR

€ 20.00

6

92075039
ref: 6

DAMPER RUBBER-HANDLE

€ 3.00

7

46016003
ref: 7

PLATE,HANDLE HOLDER

€ 3.50

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

9

31381000
ref: 9

UNAVAILABLE IN PRICE BOOK

€ 0.00

10

554A0800
ref: 10

PIN-SNAP,8MM

€ 1.00

11

56002024
ref: 11
S2

MIRROR-ASSY,RH

€ 60.00

11-1

56002020
ref: 11-1
S2-A

MIRROR-ASSY,RH

€ 47.50

12

56003016
ref: 12
S2

REAR VIEW MIRROR,L.H

€ 54.00

12-1

56003009
ref: 12-1
S2-A

MIRROR-ASSY,LH

€ 50.00

13

56006001
ref: 13
S2

PLATE,MIRROR

€ 8.50

14

46041006
ref: 14

CASE-R.H UPPER

€ 10.50

15

46023006
ref: 15

CASE-R.H LOWER

€ 10.00

16

220B0522
ref: 16

SCREW-PAN-CROS

€ 0.50

17

46019017
ref: 17
S2

GRIP ASSY-THROTTLE

€ 9.50

17

46019023
ref: 17
S2-A

GRIP ASSY-THROTTLE

€ 13.50

18

46061012
ref: 18

GRIP,RUBBER,RH

€ 18.50

19

46096007
ref: 19

LEVER-STARTER

€ 7.50

20

46058004
ref: 20
S2

LEVER-GRIP,FRONT BRAK

€ 24.00

21

92007020
ref: 21
USE 1 OF EACH FOR S2

BOLT-HEX HEAD,5X20

€ 2.50

22

46059011
ref: 22
USE 1 OF EACH FOR S2

COLLAR,LEVER

€ 3.50

23

110N0622
ref: 23
S2

BOLT,6X22

€ 2.00

23

110N0625
ref: 23
S2-A

BOLT-HEX HEAD,6X25

€ 3.50

24

410B0600
ref: 24
USE 1 OF EACH FOR S2

WASHER-PLAIN-SMALL,6M

€ 0.50

25

464H0500
ref: 25
USE 1 OF EACH FOR S2

WASHER-LOCK,5MM

€ 0.50

26

312B0500
ref: 26
USE 1 OF EACH FOR S2

NUT-HEX,5MM

€ 0.50

27

46056005
ref: 27
USE 1 OF EACH FOR S2

NUT-LOCK

€ 6.00

28

46055006
ref: 28
USE 1 OF EACH FOR S2

SCREW-CABLE ADJUST

€ 15.50

29

46060006
ref: 29
S2

HOLDER-FR BRAKE LEVER

€ 26.00

30

46092015
ref: 30
S2

LEVER-GRIP,CLUTCH

€ 11.50

30

46092015
ref: 30
S2-A

LEVER-GRIP,CLUTCH

€ 11.50

31

46094010
ref: 31
S2

HOLDER,CLUTCH LEVER

€ 31.50

31

4609401121
ref: 31
S2-A

HOLDER-CLUTCH LEV,BLK

€ 23.00

32

221B0308A
ref: 32

SCREW-CNTSNK HD,3X8

€ 2.50

33

46044008
ref: 33

KNOB-L.H SWITCH,B

€ 3.00

34

46031006
ref: 34

SPRING-L.H SW KNOB,B

€ 3.50

35

46089005
ref: 35

SWITCH-L.H A

€ 4.50

36

46031007
ref: 36

SPRING-L.H SWITCH

€ 1.50

37

46079004
ref: 37

CONTACT-L.H SWITCH

€ 1.50

38

46080004
ref: 38

PLATE-L.H SW CNTACT,B

€ 3.00

39

46086014
ref: 39

CASE-L.H UPPER

€ 12.00

40

46080003
ref: 40

PLATE-L.H SW CNTACT,A

€ 3.00

41

46089006
ref: 41

SWITCH-L.H,B

€ 4.50

42

46031003
ref: 42

SPRING-L.H SW KNOB

€ 1.50

43

46044011
ref: 43

KNOB-L.H SWITCH

€ 6.00

44

46085018
ref: 44

HOLDER-L.H SW UPPER,A

€ 1.00

45

220B0305A
ref: 45

SCREW-PAN HEAD,3X5

€ 1.00

46

46085019
ref: 46

HOLDER-L.H SW UPPER,B

€ 0.50

47

46085016
ref: 47

HOLDER-L.H SW LOWER,A

€ 2.00

48

92095010
ref: 48

WASHER

€ 2.50

49

46044007
ref: 49

KNOB-SWITCH

€ 8.00

50

46089007
ref: 50

SLIDE BLOCK AY-L.H SW

€ 10.00

51

46077016
ref: 51

CASE-L.H LOWER

€ 17.50

52

46082018
ref: 52

WIRING HARNESS-L.H SW

€ 31.00

53

46085017
ref: 53

HOLDER-L.H SW LOWER,B

€ 1.00

54

270101009
ref: 54

SWITCH ASSY,HORN BUTN

€ 5.50

55

270101009
ref: 55

SWITCH ASSY,HORN BUTN

€ 5.50

56

270101009
ref: 56

SWITCH ASSY,HORN BUTN

€ 5.50

57

46079004
ref: 57

CONTACT-L.H SWITCH

€ 1.50

58

46075017
ref: 58

GRIP,LH

€ 15.50

59

220B0522
ref: 59

SCREW-PAN-CROS

€ 0.50

60

270101009
ref: 60

SWITCH ASSY,HORN BUTN

€ 5.50

61

46018018
ref: 61

CASE ASSY,R.H

€ 52.00

62

46021025
ref: 62
S2

LEVER-ASSY-GRIP,BRAKE

€ 55.00

63

46076026
ref: 63
S2

LEVER ASSY-CLUTCH

€ 35.00

63

46076044
ref: 63
S2-A

LEVER-ASSY-GRIP,CLUTC

€ 48.00

64

46091005
ref: 64

CASE ASSY-L.H

€ 59.50

all assemblies
