CYLINDER HEADS/CYLINDERS
H2C MACH IV 1975 CANADA

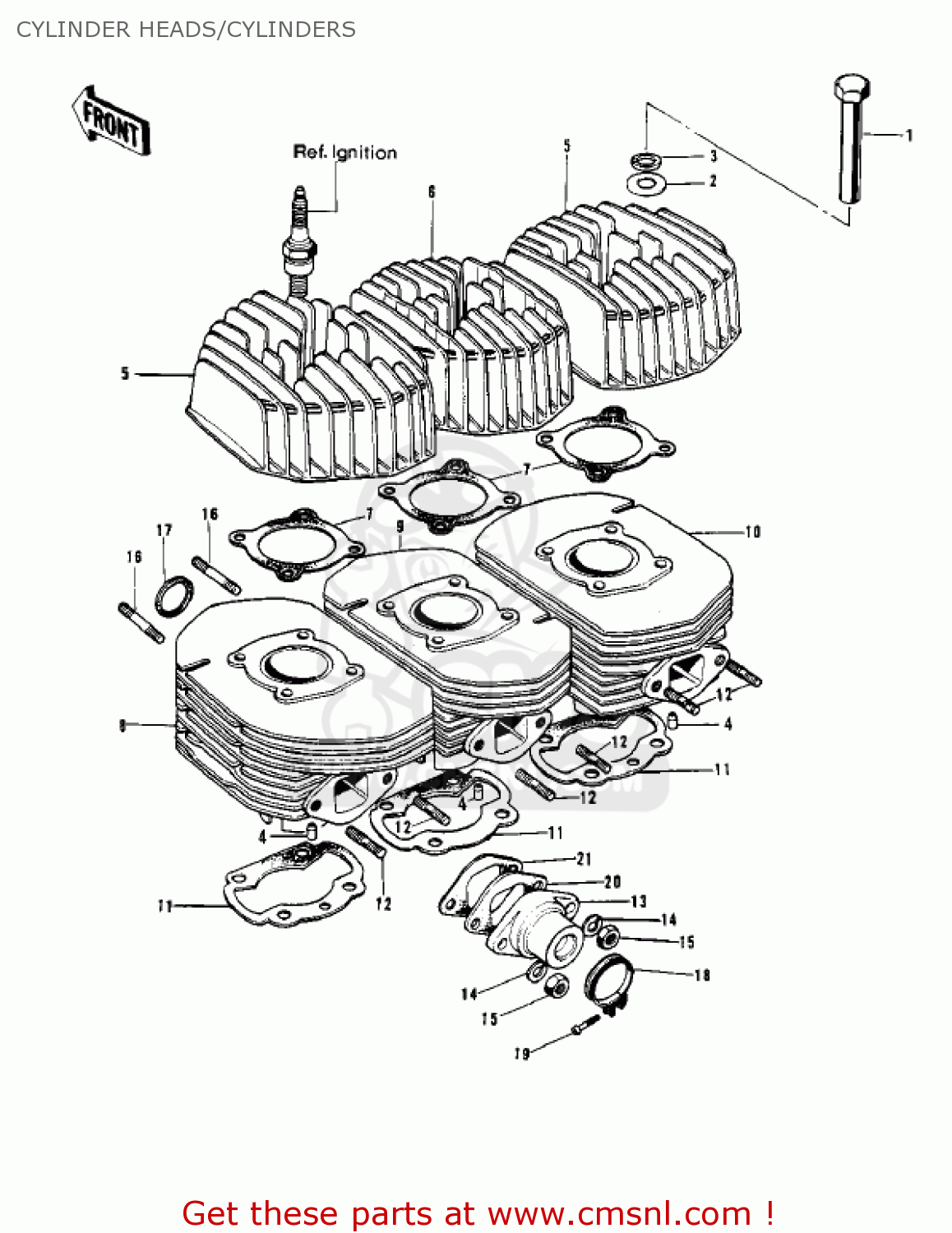

Cylinder heads/cylinders diagram H2C MACH IV 1975 CANADA
CYLINDER HEADS/CYLINDERS H2C MACH IV 1975 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92015049
ref: 1
NUT-CYLINDER HEAD
€ 12.00
2
410B1400
ref: 2
410B1400
3
461F1400
ref: 3
WASHER-SPRING,14MM
€ 0.50
4
92062008
ref: 4
NOZZLE
€ 7.00
5
11001066
ref: 5
H2/A
CYLINDER HEAD,L.H&R.H
€ 146.00
5
110010962H
ref: 5
H2-B/C
CYLINDER HEAD,R.H-L.H
€ 188.00
6
11001067
ref: 6
H2/A
CYLINDER HEAD,CENTER
€ 165.00
6
110010972H
ref: 6
H2-B/C
CYLINDER HEAD,CNT
€ 98.50
7
11004049
ref: 7
GASKET-HEAD,CYLINDER (NAS)
€ 10.50
8
11005109
ref: 8
H2/A
CYLINDER,L.H
€ 242.50
8
110051282H
ref: 8
H2-B/C
CYLINDER,L.H BARREL
€ 476.50
9
11005110
ref: 9
H2/A
CYLINDER,CENTER
€ 370.50
9
110051292H
ref: 9
H2-B/C
CYLINDER,CNT BARREL
€ 323.00
10
11005111
ref: 10
H2/A
CYLINDER,R.H
€ 481.50
10
110051302H
ref: 10
H2-B/C
CYLINDER,R.H BARREL
€ 547.50
11
11009028
ref: 11
GASKET-CYLINDER BASE (MCA)
€ 7.00
12
172G0816
ref: 12
STUD,8X16
€ 1.00
13
16060013
ref: 13
PIPE-INTAKE
€ 67.50
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
311B0800
ref: 15
NUT,8MM
€ 0.50
16
920041008
ref: 16
STUD, 8X25
€ 3.50
17
18067008
ref: 17
GASKET-EXHAUST PIPE (NAS)
€ 10.50
18
92037061
ref: 18
CLAMP
€ 10.50
19
220B0535
ref: 19
SCREW-PAN-CROS
€ 2.00
20
16061014
ref: 20
INSULATOR
€ 13.50
21
16062016
ref: 21
GASKET-AIR INLET (MCA)
€ 4.00
