CARBURETORS
H2C MACH IV 1975 CANADA

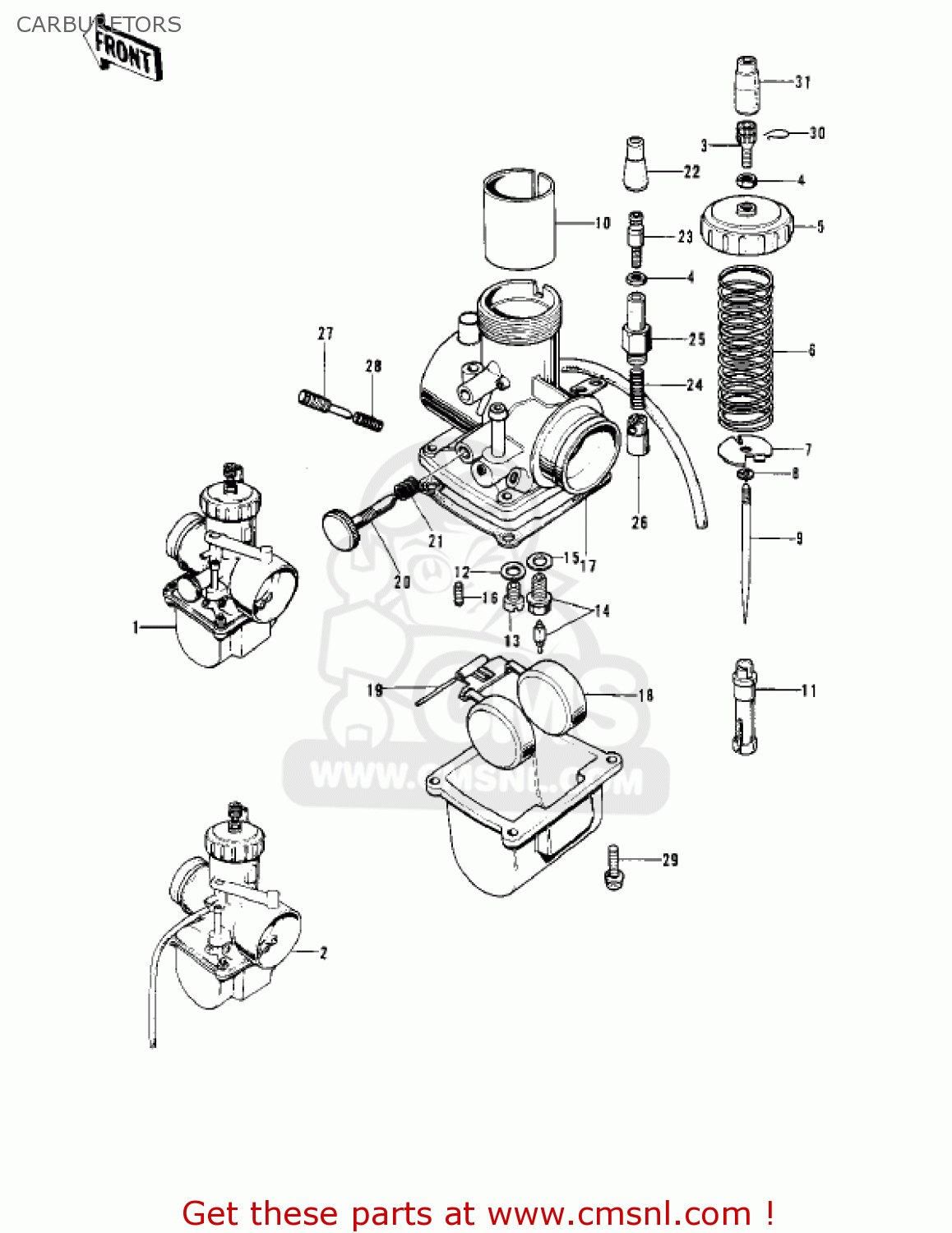

Carburetors diagram H2C MACH IV 1975 CANADA
CARBURETORS H2C MACH IV 1975 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16001192
ref: 1
H2/A
CARBURETOR ASY,L.H&C
€ 566.00
1
16001214
ref: 1
H2-B/C
CARBURTOR ASY,L.H-CNT
€ 146.00
2
16001193
ref: 2
H2/A
CARBURETOR ASSY,R.H
€ 146.00
2
16001216
ref: 2
H2-B/C
CARBURETOR ASSY,R.H
€ 325.50
3
16002011
ref: 3
CABLE ADJUSTER
€ 9.50
4
16003006
ref: 4
NUT-CABLE ADJUST LOCK
€ 4.50
5
16004018
ref: 5
CAP-CHAMBER,MIXING
€ 15.00
6
16006021
ref: 6
SPRING,THROTTLE VALV
€ 4.00
7
16007021
ref: 7
SPRING SEAT,THRTL VL
€ 10.50
8
16008010
ref: 8
CLAMP,E-TYPE
€ 5.00
9
16009054
ref: 9
JET NEEDLE 5EJ15
€ 11.50
10
16025058
ref: 10
VALVE,THROTTLE CA2.5
€ 39.00
11
16017063
ref: 11
NEEDLE JET,O-6
€ 17.50
12
16034001
ref: 12
WASHER-MAIN JET
€ 2.50
13
920631035
ref: 13
STD-H2/A
MAIN JET,#97.5R
€ 10.00
13
920631028
ref: 13
STD-H2-B/C
JET-MAIN,#A102.5R
€ 10.00
13
92063068
ref: 13
H2/A
MAIN JET,#92.5R
€ 15.50
13
920631031
ref: 13
H2/A
MAIN JET,#95R
€ 10.00
13
920631033
ref: 13
JET-MAIN,#A100R
€ 17.00
13
920631042
ref: 13
H2-B/C
JET-MAIN,#A105R
€ 10.50
13
92063073
ref: 13
H2-B/C
JET-MAIN,#107.5R
€ 9.50
14
16030005
ref: 14
VALVE-FLOAT,2.5
€ 43.00
15
16029004
ref: 15
WASHER-FLOAT VLV SEAT
€ 2.50
16
92064023
ref: 16
JET-PILOT,#35
€ 13.00
16
92064024
ref: 16
H2-B/C
JET-PILOT,#40
€ 14.00
17
16019008
ref: 17
GASKET,FLOAT CHAMBER (NAS)
€ 27.00
18
16031023
ref: 18
FLOAT
€ 22.50
19
16032003
ref: 19
FLOAT PIN
€ 4.00
20
16021015
ref: 20
SCREW-THROTTLE STOP
€ 16.50
21
16022005
ref: 21
SPRING-THR STOP SCREW
€ 5.50
22
16036007
ref: 22
BOOT,CABLE ADJUSTER
€ 10.50
23
16002002
ref: 23
ADJUSTER-CABLE,STARTE
€ 8.00
24
16013003
ref: 24
SPRING-STARTER PLUNG
€ 4.00
25
16012008
ref: 25
CAP-STARTER PLUNGER
€ 4.00
26
16016002
ref: 26
PLUNGER,STARTER
€ 20.00
27
16014006
ref: 27
SCREW-PILOT AIR
€ 9.00
28
16022007
ref: 28
SPRING-THR STOP SCREW
€ 5.50
29
16033009
ref: 29
SCREW-FLOAT CHAMBER
€ 0.50
30
92036018
ref: 30
CIRCLIP
€ 2.50
31
16036008
ref: 31
CAP-CABLE ADJUSTER
€ 2.00
