HANDLEBAR (H2/A)
H2 MACH IV 1972 CANADA

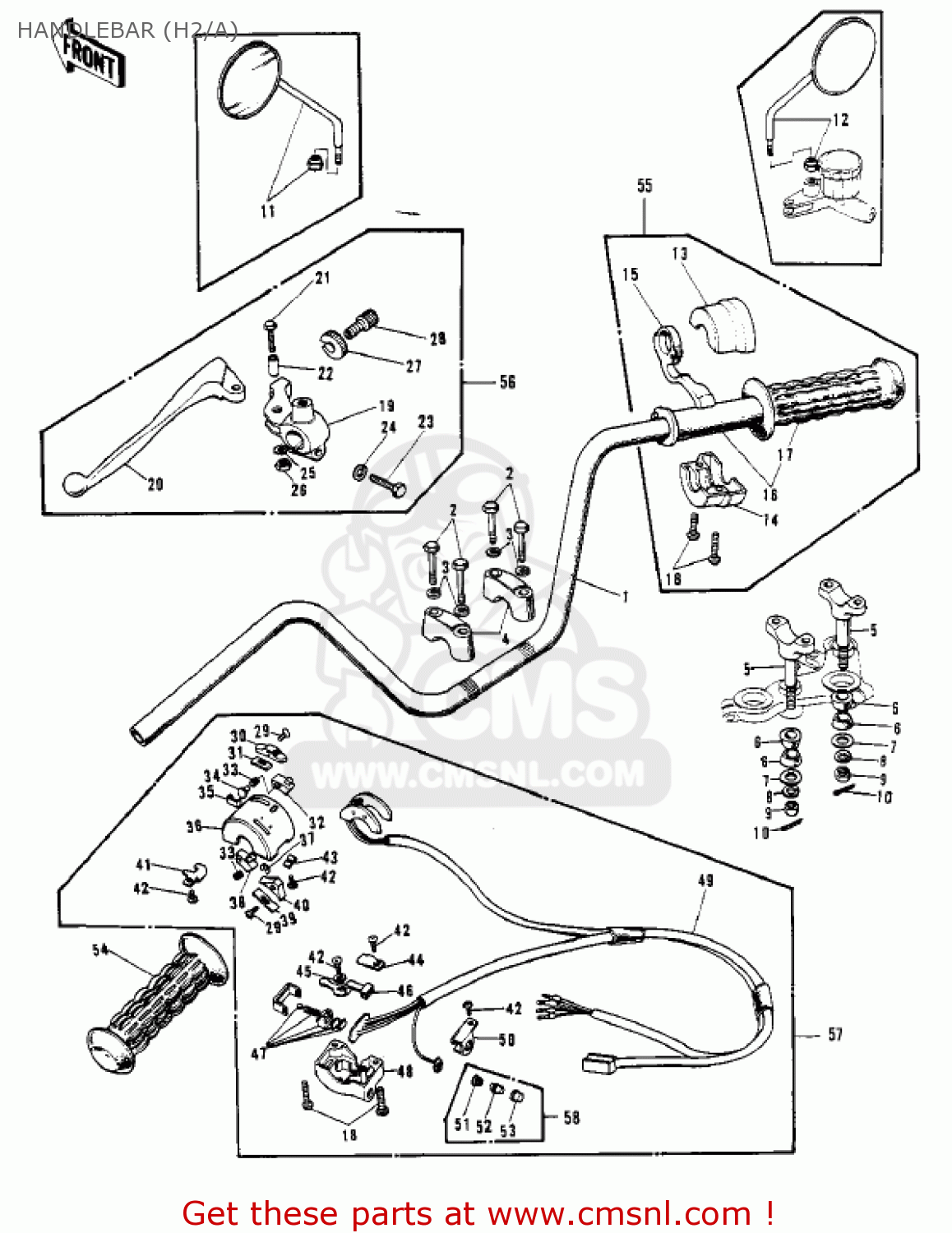

Handlebar (h2/a) diagram H2 MACH IV 1972 CANADA
HANDLEBAR (H2/A) H2 MACH IV 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
46003025
ref: 1
HANDLEBAR
€ 43.50
2
920011405
ref: 2
BOLT,8X38
€ 10.00
2
920011405
ref: 2
BOLT,8X38
€ 10.00
3
461F0800
ref: 3
WASHER-SPRING,8MM
€ 0.50
4
46012008
ref: 4
HOLDER-HANDLE,UPP
€ 23.00
5
46012010
ref: 5
HOLDER-HANDLE,LWR
€ 20.00
6
92075275
ref: 6
DAMPER,HANDLE
€ 6.00
7
92022196
ref: 7
WASHER,10.5X30X2
€ 2.00
8
314B1000
ref: 8
NUT,10MM
€ 0.50
9
314B1000
ref: 9
NUT,10MM
€ 0.50
10
550D2520
ref: 10
PIN-COTTER,2.5X20
€ 1.00
11
56003009
ref: 11
MIRROR-ASSY,LH
€ 50.00
12
56002020
ref: 12
MIRROR-ASSY,RH
€ 47.50
13
46023006
ref: 13
CASE-R.H LOWER
€ 10.00
14
46023006
ref: 14
CASE-R.H LOWER
€ 10.00
15
46096007
ref: 15
LEVER-STARTER
€ 7.50
16
46019021
ref: 16
H2
GRIP ASSY-THROTTLE
€ 14.00
16
46019023
ref: 16
H2-A
GRIP ASSY-THROTTLE
€ 13.50
17
46061012
ref: 17
GRIP,RUBBER,RH
€ 18.50
18
20B0522A
ref: 18
UNAVAILABLE IN PRICE BOOK
€ 0.00
19
4609401121
ref: 19
H2
HOLDER-CLUTCH LEV,BLK
€ 23.00
19
4609401121A
ref: 19
H2-A
UNAVAILABLE IN PRICE BOOK
€ 0.00
20
46092015
ref: 20
LEVER-GRIP,CLUTCH
€ 11.50
21
92007020
ref: 21
BOLT-HEX HEAD,5X20
€ 2.50
22
46059011
ref: 22
COLLAR,LEVER
€ 3.50
23
110N0625
ref: 23
BOLT-HEX HEAD,6X25
€ 3.50
24
410B0600
ref: 24
WASHER-PLAIN-SMALL,6M
€ 0.50
25
464H0500
ref: 25
WASHER-LOCK,5MM
€ 0.50
26
312B0500
ref: 26
NUT-HEX,5MM
€ 0.50
27
46056005
ref: 27
NUT-LOCK
€ 6.00
28
46055006
ref: 28
SCREW-CABLE ADJUST
€ 15.50
29
221B0308A
ref: 29
SCREW-CNTSNK HD,3X8
€ 2.50
30
46044008
ref: 30
KNOB-L.H SWITCH,B
€ 3.00
31
46031006
ref: 31
SPRING-L.H SW KNOB,B
€ 3.50
32
46089005
ref: 32
SWITCH-L.H A
€ 4.50
33
46031007
ref: 33
SPRING-L.H SWITCH
€ 1.50
34
46079004
ref: 34
CONTACT-L.H SWITCH
€ 1.50
35
46080004
ref: 35
PLATE-L.H SW CNTACT,B
€ 3.00
36
46086014
ref: 36
CASE-L.H UPPER
€ 12.00
37
46080003
ref: 37
PLATE-L.H SW CNTACT,A
€ 3.00
38
46089006
ref: 38
SWITCH-L.H,B
€ 4.50
39
46031003
ref: 39
SPRING-L.H SW KNOB
€ 1.50
40
46044011
ref: 40
KNOB-L.H SWITCH
€ 6.00
41
46085018
ref: 41
HOLDER-L.H SW UPPER,A
€ 1.00
42
220B0305A
ref: 42
SCREW-PAN HEAD,3X5
€ 1.00
43
46085019
ref: 43
HOLDER-L.H SW UPPER,B
€ 0.50
44
46085016
ref: 44
HOLDER-L.H SW LOWER,A
€ 2.00
45
92095010
ref: 45
WASHER
€ 2.50
46
46044007
ref: 46
KNOB-SWITCH
€ 8.00
47
46089007
ref: 47
SLIDE BLOCK AY-L.H SW
€ 10.00
48
46077016
ref: 48
CASE-L.H LOWER
€ 17.50
49
46082018
ref: 49
WIRING HARNESS-L.H SW
€ 31.00
50
46085017
ref: 50
HOLDER-L.H SW LOWER,B
€ 1.00
51
270101009
ref: 51
SWITCH ASSY,HORN BUTN
€ 5.50
52
270101009
ref: 52
SWITCH ASSY,HORN BUTN
€ 5.50
53
270101009
ref: 53
SWITCH ASSY,HORN BUTN
€ 5.50
54
46075017
ref: 54
GRIP,LH
€ 15.50
55
46018018
ref: 55
H2
CASE ASSY,R.H
€ 52.00
55
46018024
ref: 55
H2-A
CASE ASSY,R.H
€ 101.50
56
46076026
ref: 56
LEVER ASSY-CLUTCH
€ 35.00
57
46091005
ref: 57
CASE ASSY-L.H
€ 59.50
58
270101009
ref: 58
SWITCH ASSY,HORN BUTN
€ 5.50
