GEAR CHANGE MECHANISM
H2 MACH IV 1972 CANADA

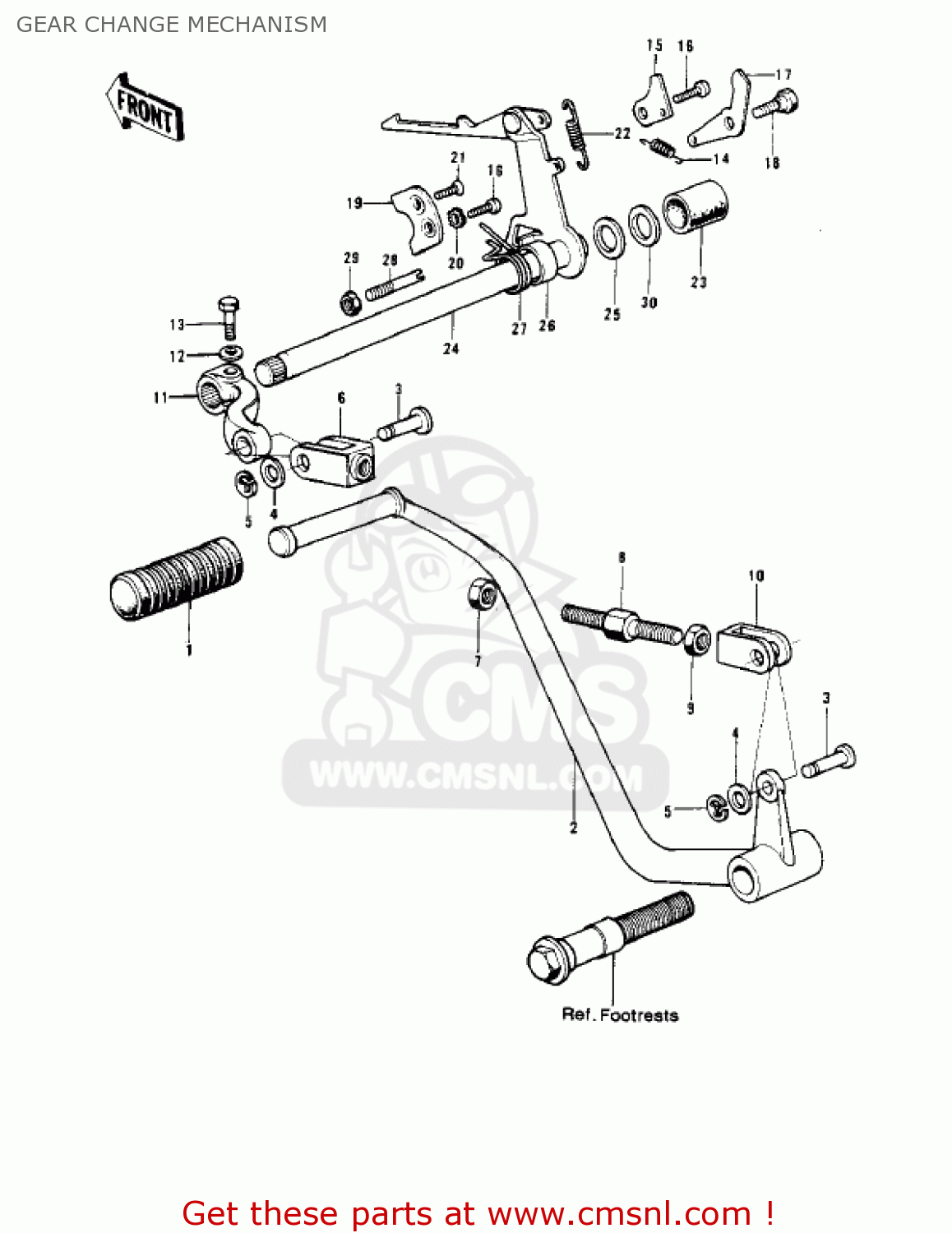

Gear change mechanism diagram H2 MACH IV 1972 CANADA
GEAR CHANGE MECHANISM H2 MACH IV 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13157004
ref: 1
RUBBER-CHANGE PEDAL
€ 4.00
2
13156039
ref: 2
PEDAL-GEAR CHANGE
€ 28.00
3
92043069
ref: 3
PIN,8X15.4
€ 7.00
4
410B0800
ref: 4
H2/A
WASHER-PLAIN-SMALL,8M
€ 0.50
4
920221028
ref: 4
H2-B/C
WASHER,8.5X13X1
€ 2.50
5
482K5000
ref: 5
CIRCLIP,5MM
€ 2.00
6
13159008
ref: 6
CONNECTOR,B
€ 51.50
7
92017010
ref: 7
NUT,8MM
€ 3.50
8
92003072
ref: 8
BOLT-HEX HEAD,8MM
€ 15.50
9
318N0800
ref: 9
NUT,8MM
€ 2.50
10
13159007
ref: 10
CONNECTOR,A
€ 14.00
11
13158011
ref: 11
LEVER-GEAR CHANGE
€ 106.50
12
461F0800
ref: 12
WASHER-SPRING,8MM
€ 0.50
13
115G0820
ref: 13
H2/A
BOLT,8X20
€ 2.00
13
115B0822
ref: 13
H2-B/C
BOLT-SMALL-UPSET,8X22
€ 2.00
14
920811045
ref: 14
SPRING,CHNG DRUM LEVR
€ 4.50
15
13170004
ref: 15
PLATE-CHANGE DRUM LEV
€ 1.50
16
220B0616
ref: 16
SCREW-PAN HEAD,6X16
€ 2.50
17
13168012
ref: 17
LEVER-GEAR CHNG DRUM
€ 2.50
18
921501450
ref: 18
BOLT,CHANGE DRUM LEVE
€ 2.50
19
13169005
ref: 19
PLATE-CHNG DRUM PSTON
€ 2.00
20
464H0600
ref: 20
WASHER-LOCK,6MM
€ 0.50
21
212B0616
ref: 21
SCREW-CNTSNK HD,6X16
€ 2.00
22
921441720
ref: 22
SPRING,CHANGE LEVER
€ 3.00
23
13080004
ref: 23
RUBBER CAP
€ 3.50
24
13161035
ref: 24
H2/A
LEVER ASSY,GEAR CHNG
€ 38.00
24
13161035
ref: 24
H2-B/C
LEVER ASSY,GEAR CHNG
€ 38.00
25
92026068
ref: 25
SPACER
€ 3.50
26
92027121
ref: 26
COLLAR
€ 5.50
27
920811129
ref: 27
SPRING,TENTION
€ 6.50
28
920011401
ref: 28
BOLT,RETURN SPRING
€ 3.00
29
312B0800
ref: 29
NUT,8MM
€ 0.50
30
92022150
ref: 30
H2/A
SHIM-KICK SHAFT,0.5T
€ 2.00
