CLUTCH
H2 MACH IV 1972 CANADA

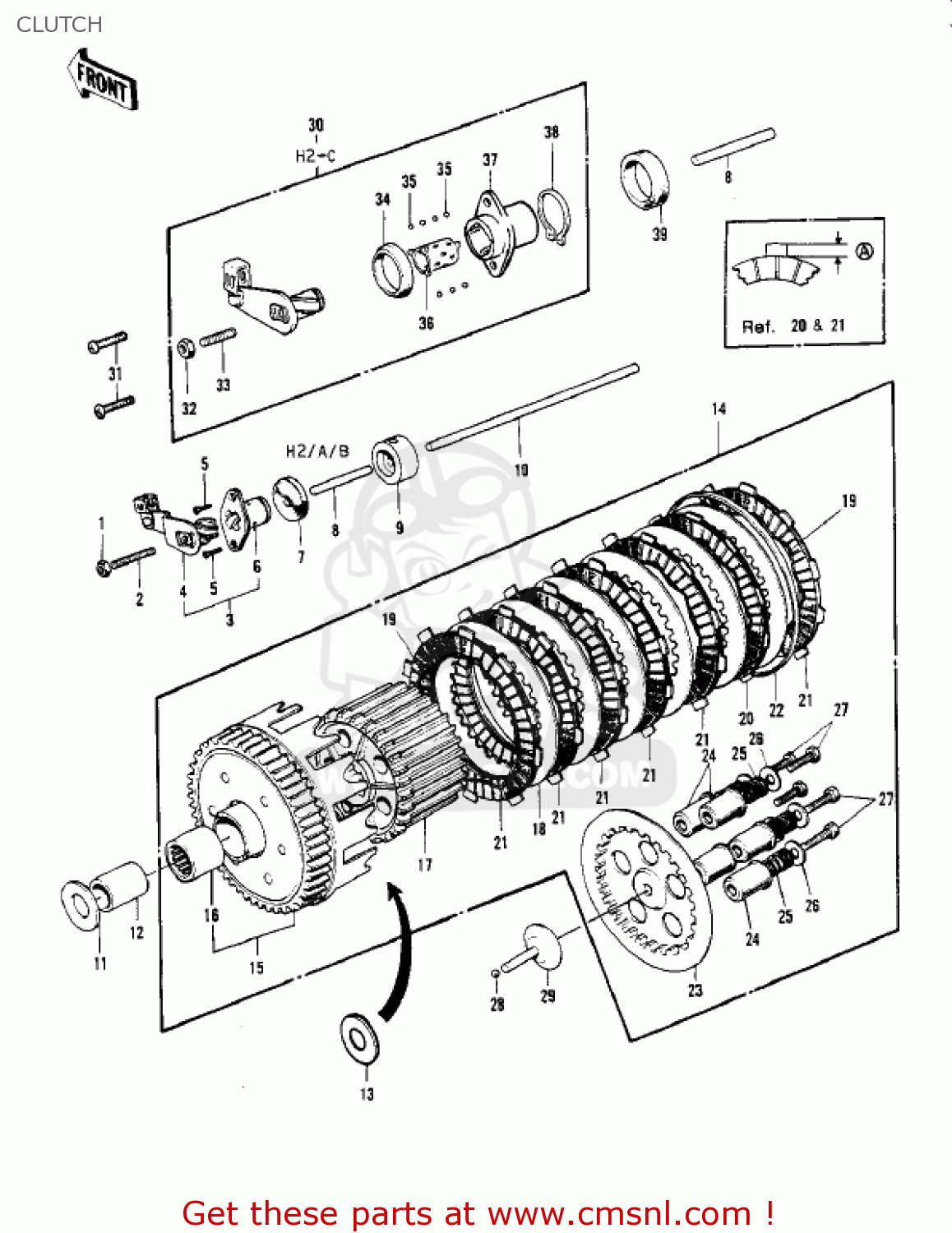

Clutch diagram H2 MACH IV 1972 CANADA
CLUTCH H2 MACH IV 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
311B0600
ref: 1
H2/A/B
NUT,6MM
€ 0.50
2
291Z0625
ref: 2
H2/A/B
SCREW-SLOTTED,6X25
€ 3.50
3
13231010
ref: 3
H2/A/B
RELEASE ASSY,CLUTCH
€ 35.00
4
13102017
ref: 4
H2/A/B
INNER,CLUTCH RELEASE
€ 29.00
5
221B0616
ref: 5
H2/A/B
SCREW-CNTSNK HD,6X16
€ 0.50
6
13118008
ref: 6
H2/A/B
OUTER,CLUTCH RELEASE
€ 16.00
7
92050025
ref: 7
H2/A/B
OIL SEAL SC7317
€ 8.50
8
13116010
ref: 8
ROD-CLUTCH PUSH SHORT
€ 10.50
9
92028070
ref: 9
BUSH-CLUTCH PUSH ROD
€ 18.50
10
13116009
ref: 10
ROD-CLUTCH PUSH LONG
€ 4.50
11
92022186
ref: 11
WASHER-PLAIN
€ 10.00
12
92028045
ref: 12
BUSH-CLUTCH
€ 5.50
13
92026022
ref: 13
SPACER,25.5X47X2.5
€ 6.50
14
13081073
ref: 14
H2/A
CLUTCH ASSY
€ 480.00
14
13081073
ref: 14
H2-B/C
CLUTCH ASSY
€ 480.00
15
13095029
ref: 15
HOUSING-CLUTCH
€ 198.00
16
92046004
ref: 16
BEARING,#TLA3030ZC
€ 12.50
17
13081073
ref: 17
CLUTCH ASSY
€ 480.00
18
130891073
ref: 18
PLATE-CLUTCH (NAS)
€ 7.50
19
13229003
ref: 19
RING-CLUTCH STEEL
€ 7.50
20
13088028
ref: 20
H2/A
PLATE-CLUTCH FRICTION (MCA)
€ 10.50
20
130881063
ref: 20
H2-B/C
PLATE-FRICTION (MCA)
€ 10.00
21
13088021
ref: 21
H2/A
PLATE-CLUTCH FRICTION (MCA)
€ 11.50
21
13088015
ref: 21
H2-B/C
PLATE-CLUTCH FRICTION
€ 11.50
21
130881008
ref: 21
H2-B/C
PLATE,CLUTCH FRICTION (MCA)
€ 11.50
22
13238001
ref: 22
HOLDER-CLUTCH HOUSING
€ 7.00
23
13187005
ref: 23
PLATE-CLUTCH SPRING (NAS)
€ 26.50
24
13092005
ref: 24
GUIDE-CLUTCH SPRING
€ 7.50
25
92081100
ref: 25
SPRING-CLUTCH
€ 8.50
26
13091009
ref: 26
HOLDER-CLUTCH SPRING
€ 2.50
27
112G0618
ref: 27
BOLT-UPSET
€ 0.50
28
600A1000
ref: 28
BALL-STEEL,5/16
€ 0.50
29
13116011
ref: 29
PUSHER-CLTCH SPRG PLT
€ 23.00
30
132311001
ref: 30
H2-C
RELEASE ASSY,CLUTCH
€ 34.00
31
220B0616
ref: 31
H2-C
SCREW-PAN HEAD,6X16
€ 2.50
32
311B0600
ref: 32
H2-C
NUT,6MM
€ 0.50
33
291Z0625
ref: 33
H2-C
SCREW-SLOTTED,6X25
€ 3.50
34
92056007
ref: 34
H2-C
OIL SEAL
€ 7.00
35
600A0400
ref: 35
H2-C
BALL-STEEL,1/8
€ 2.00
36
13197006
ref: 36
H2-C
RETAINER
€ 6.50
37
13118015
ref: 37
H2-C
OUTER,CLUTCH RELEASE
€ 20.50
38
480J1500
ref: 38
H2-C
CIRCLIP-TYPE-C,15MM
€ 1.00
39
92050070
ref: 39
OIL SEAL
€ 15.00
