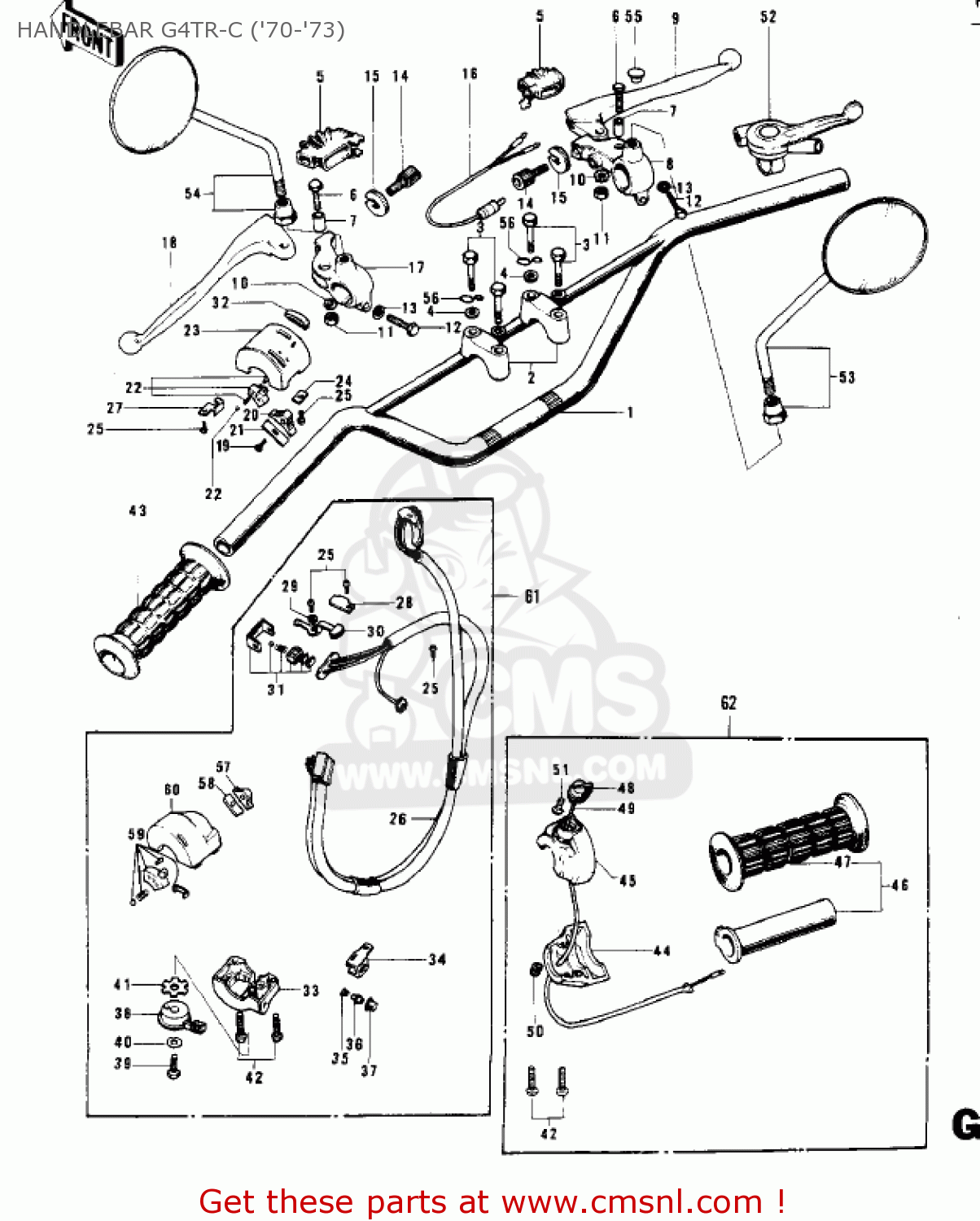

HANDLEBAR G4TR-C ('70-'73)

ref

part #

description

quantity

1

46004004
ref: 1

HANDLEBAR

€ 236.50

2

46012008
ref: 2

HOLDER-HANDLE,UPP

€ 23.00

3

920011405
ref: 3

BOLT,8X38

€ 10.00

4

461F0800
ref: 4

WASHER-SPRING,8MM

€ 0.50

5

46071002
ref: 5

DUST COVER

€ 12.50

6

92007020
ref: 6

BOLT-HEX HEAD,5X20

€ 2.50

7

46059011
ref: 7

COLLAR,LEVER

€ 3.50

8

4606000921
ref: 8

HOLDER,BRAKE LEVER,FR

€ 27.00

9

46058004
ref: 9

LEVER-GRIP,FRONT BRAK

€ 24.00

10

464H0500
ref: 10

WASHER-LOCK,5MM

€ 0.50

11

312B0500
ref: 11

NUT-HEX,5MM

€ 0.50

12

110N0625
ref: 12

BOLT-HEX HEAD,6X25

€ 3.50

13

410B0600
ref: 13

WASHER-PLAIN-SMALL,6M

€ 0.50

14

46055009
ref: 14

SCREW,CABLE ASJUST

€ 13.00

15

46056005
ref: 15

NUT-LOCK

€ 6.00

16

27021004
ref: 16

SWITCH,FR BRAKE LAMP

€ 23.00

17

4609401121
ref: 17

HOLDER-CLUTCH LEV,BLK

€ 23.00

18

46092015
ref: 18

LEVER-GRIP,CLUTCH

€ 11.50

19

221B0308A
ref: 19
EARLY PRODUCTION

SCREW-CNTSNK HD,3X8

€ 2.50

20

46044009
ref: 20
EARLY PRODUCTION

KNOB-L.H SWITCH

€ 3.00

21

46031006
ref: 21
EARLY PRODUCTION

SPRING-L.H SW KNOB,B

€ 3.50

22

46089008
ref: 22
EARLY PRODUCTION

SWITCH-L.H

€ 8.00

23

46086015
ref: 23
EARLY PRODUCTION

CASE,UPPER,LH

€ 31.50

24

46085019
ref: 24
EARLY PRODUCTION

HOLDER-L.H SW UPPER,B

€ 0.50

25

220B0305A
ref: 25
EARLY PRODUCTION

SCREW-PAN HEAD,3X5

€ 1.00

26

46082020
ref: 26

WIRING HARNESS-L.H SW

€ 18.50

27

46085020
ref: 27
EARLY PRODUCTION

HOLDER-L.H SW UPPER,A

€ 1.50

28

46085016
ref: 28

HOLDER-L.H SW LOWER,A

€ 2.00

29

92095010
ref: 29

WASHER

€ 2.50

30

46044010
ref: 30

KNOB-SWITCH

€ 6.00

31

46089007
ref: 31

SLIDE BLOCK AY-L.H SW

€ 10.00

32

46089009
ref: 32
EARLY PRODUCTION

CAP-L.H SWITCH

€ 1.50

33

46077017
ref: 33

CASE-L.H LOWER

€ 7.50

34

46085017
ref: 34

HOLDER-L.H SW LOWER,B

€ 1.00

35

270101009
ref: 35

SWITCH ASSY,HORN BUTN

€ 5.50

36

270101009
ref: 36

SWITCH ASSY,HORN BUTN

€ 5.50

37

270101009
ref: 37

SWITCH ASSY,HORN BUTN

€ 5.50

37

270101009
ref: 37
INCLUDES REF #'S 35-

SWITCH ASSY,HORN BUTN

€ 5.50

38

4609600810
ref: 38

LEVER,STARTER,BLACK

€ 17.00

39

110B0608
ref: 39

BOLT-HEX HEAD,6X8

€ 0.50

40

410B0600
ref: 40

WASHER-PLAIN-SMALL,6M

€ 0.50

41

92095012
ref: 41

WASHER-LOCK

€ 3.50

42

220B0525
ref: 42

SCREW-PAN-CROS,5X25

€ 2.50

43

46075018
ref: 43

RUBBER-L.H GRIP

€ 10.00

44

46023008
ref: 44

CASE-R.H LOWER

€ 17.50

45

46041008
ref: 45

CASE-R.H UPPER

€ 23.50

46

46019020
ref: 46

GRIP ASSY-THROTTLE

€ 14.00

47

46061013
ref: 47

RUBBER-R.H GRIP

€ 9.50

48

46027008
ref: 48

SWITCH-ENGINE STOP

€ 15.50

49

46082021
ref: 49

WIRING HARNESS-STP SW

€ 2.00

50

92071060
ref: 50

GROMMET-WIRING HARNES

€ 0.50

51

220B0305A
ref: 51

SCREW-PAN HEAD,3X5

€ 1.00

52

46131002
ref: 52

LEVER ASSY-CHANGE

€ 37.00

53

56002020
ref: 53

MIRROR-ASSY,RH

€ 47.50

54

56003009
ref: 54

MIRROR-ASSY,LH

€ 50.00

55

92102009
ref: 55

CAP-RR VIEW MIRROR

€ 3.00

56

92037075
ref: 56

CLAMP-CABLE

€ 1.50

57

46044011
ref: 57
LATE PRODUCTION

KNOB-L.H SWITCH

€ 6.00

58

46031003
ref: 58
LATE PRODUCTION

SPRING-L.H SW KNOB

€ 1.50

59

46089012
ref: 59
LATE PRODUCTION

SWITCH ASSY,L.H

€ 8.00

60

4608601621
ref: 60
LATE PRODUCTION

CASE-L.H UPPER,BLACK

€ 12.50

61

4609101910
ref: 61

CASE ASSY,L.H,BLACK

€ 40.00

62

4601802010
ref: 62

CASE ASSY,R.H.

€ 59.50

all assemblies
