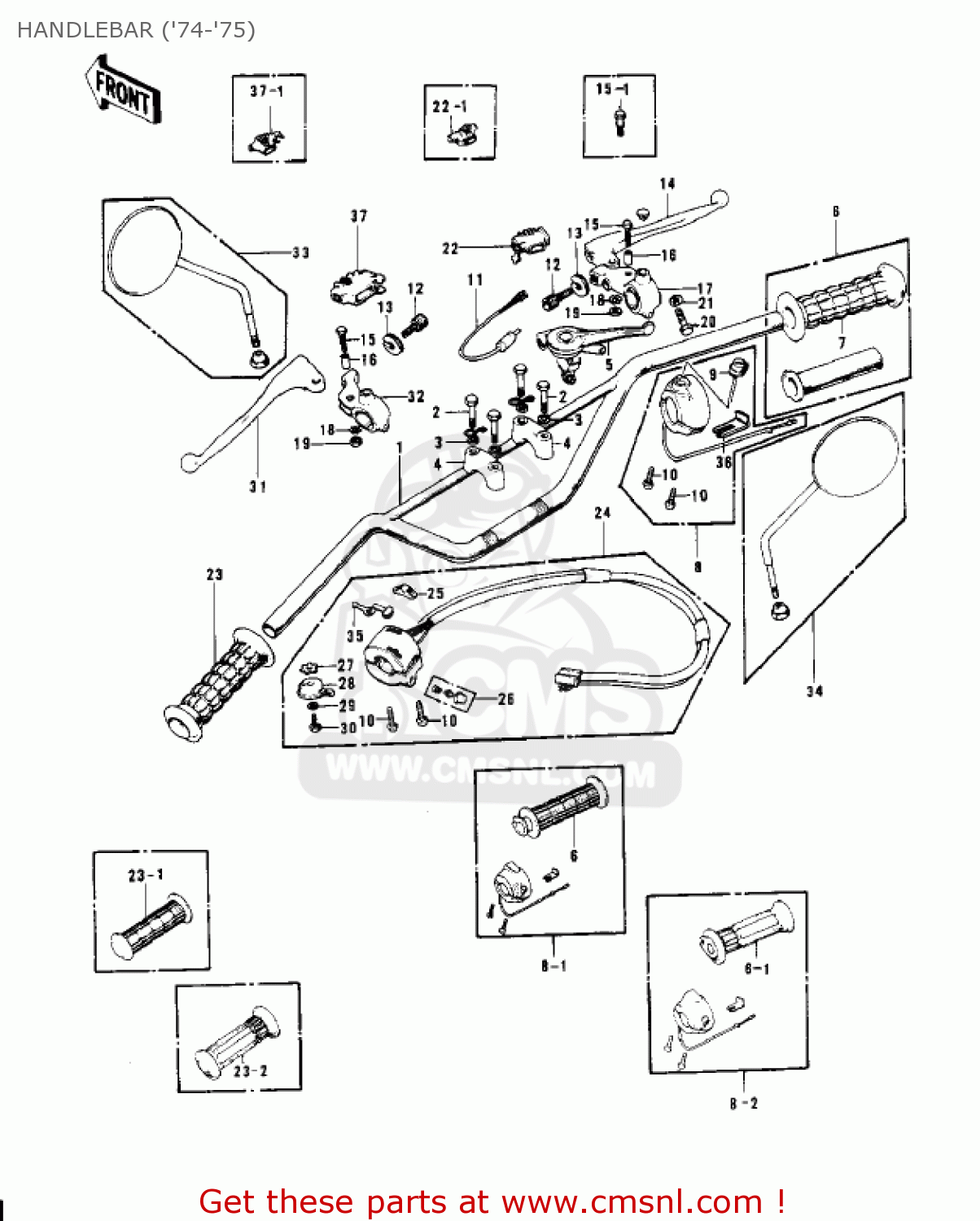

HANDLEBAR ('74-'75)

ref

part #

description

quantity

1

46004004
ref: 1

HANDLEBAR

€ 236.50

2

920011405
ref: 2

BOLT,8X38

€ 10.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

46012008
ref: 4

HOLDER-HANDLE,UPP

€ 23.00

5

46131002
ref: 5

LEVER ASSY-CHANGE

€ 37.00

6

46019020
ref: 6
G4TR-D

GRIP ASSY-THROTTLE

€ 14.00

6

46019034
ref: 6
G4TR-E

GRIP ASSY,THROTTLE

€ 29.00

6-1

46019039
ref: 6-1
KV100-A7

GRIP-ASSY,THROTTLE

€ 30.00

7

46061013
ref: 7

RUBBER-R.H GRIP

€ 9.50

8

4601802010
ref: 8
G4TR-D

CASE ASSY,R.H.

€ 59.50

8-1

46018036
ref: 8-1
G4TR-E

CASE ASSY,R.H

€ 128.50

8-2

46018047
ref: 8-2
KV100-A7

CASE ASSY,R.H

€ 74.50

9

46027008
ref: 9
G4TR-D

SWITCH-ENGINE STOP

€ 15.50

10

220B0525
ref: 10

SCREW-PAN-CROS,5X25

€ 2.50

11

27021004
ref: 11

SWITCH,FR BRAKE LAMP

€ 23.00

12

46055009
ref: 12

SCREW,CABLE ASJUST

€ 13.00

13

46056005
ref: 13

NUT-LOCK

€ 6.00

14

46058004
ref: 14

LEVER-GRIP,FRONT BRAK

€ 24.00

15

92007020
ref: 15
G4TR-D

BOLT-HEX HEAD,5X20

€ 2.50

15-1

92007046
ref: 15-1
G4TR-E, KV100-A7

BOLT,HEX HEAD,5X22

€ 4.50

16

46059011
ref: 16
G4TR-D

COLLAR,LEVER

€ 3.50

17

4606000921
ref: 17

HOLDER,BRAKE LEVER,FR

€ 27.00

18

464H0500
ref: 18

WASHER-LOCK,5MM

€ 0.50

19

312B0500
ref: 19
G4TR-D

NUT-HEX,5MM

€ 0.50

19

92019014
ref: 19
G4TR-E, KV100-A7

NUT-LOCK,5M/M

€ 2.50

20

110N0625
ref: 20

BOLT-HEX HEAD,6X25

€ 3.50

21

411B0600
ref: 21

WASHER-PLAIN,6MM

€ 0.50

22

46071002
ref: 22
G4TR-D

DUST COVER

€ 12.50

22-1

490061017
ref: 22-1
G4TR-E, KV100A7

BOOTS,LEVER HOLDER

€ 13.00

23

46075018
ref: 23
G4TR-D

RUBBER-L.H GRIP

€ 10.00

23-1

46075019
ref: 23-1
G4TR-E

RUBBER-L.H GRIP

€ 6.00

23-2

46075029
ref: 23-2
KV100-A7

RUBBER,L.H GRIP

€ 9.50

24

4609101910
ref: 24
G4TR-D

CASE ASSY,L.H,BLACK

€ 40.00

24

46091040
ref: 24
G4TR-E, KV100-A7

HOUSING-ASSY-CONTROL,

€ 93.50

25

46044011
ref: 25

KNOB-L.H SWITCH

€ 6.00

26

46078003
ref: 26

SWITCH ASSY LH BUTTON

€ 5.50

27

92095012
ref: 27

WASHER-LOCK

€ 3.50

28

4609600810
ref: 28

LEVER,STARTER,BLACK

€ 17.00

29

411B0600
ref: 29

WASHER-PLAIN,6MM

€ 0.50

30

110B0608
ref: 30

BOLT-HEX HEAD,6X8

€ 0.50

31

46092015
ref: 31

LEVER-GRIP,CLUTCH

€ 11.50

32

4609401121
ref: 32

HOLDER-CLUTCH LEV,BLK

€ 23.00

33

56003009
ref: 33

MIRROR-ASSY,LH

€ 50.00

34

56002020
ref: 34

MIRROR-ASSY,RH

€ 47.50

35

46044010
ref: 35

KNOB-SWITCH

€ 6.00

36

46037023
ref: 36

HOLDER,CONTROL CABLE

€ 4.50

37

46071002
ref: 37
G4TR-D

DUST COVER

€ 12.50

37-1

490061017
ref: 37-1
G4TR-E, KV100-A7

BOOTS,LEVER HOLDER

€ 13.00

all assemblies
