TURN SIGNALS ('74-'75)
G3TR BUSHMASTER 1970 USA

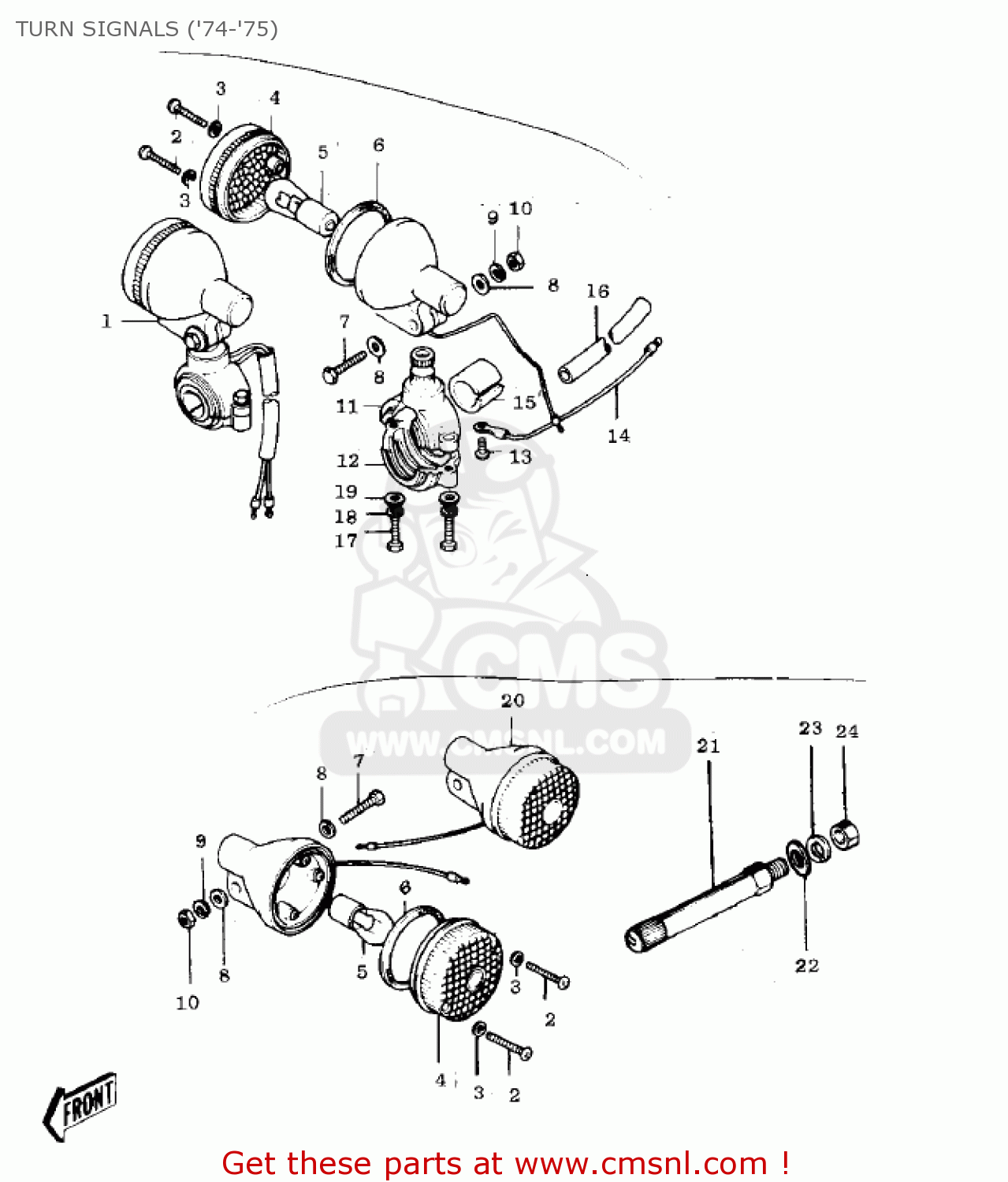

Turn signals ('74-'75) diagram G3TR BUSHMASTER 1970 USA
TURN SIGNALS ('74-'75) G3TR BUSHMASTER 1970 USA
×
prices are in EUR
ref
part #
description
quantity
1
23037005
ref: 1
LAMP ASY-FR TURN SIG
€ 53.50
2
220E0420A
ref: 2
SCREW-PAN HEAD,4X20
€ 2.50
3
23058002
ref: 3
WASHER,PLAIN,4MM
€ 2.00
4
230481001
ref: 4
LENS-SIGNAL LAMP,045-
€ 10.50
5
92069056
ref: 5
BULB,6V 21CP
€ 4.50
6
23050003
ref: 6
GASKET,SIGNAL LAMP (NAS)
€ 3.50
7
112G0630
ref: 7
BOLT-UPSET
€ 1.00
8
411D0600
ref: 8
WASHER-PLAIN,6MM
€ 1.50
9
461F0600
ref: 9
WASHER-SPRING,6MM
€ 0.50
10
311B0600
ref: 10
NUT,6MM
€ 0.50
11
230511004
ref: 11
BRACKET-SIGNAL LAMP,F
€ 23.00
12
230511013
ref: 12
BRACKET-SIGNAL LAMP,F
€ 11.50
13
220B0305A
ref: 13
SCREW-PAN HEAD,3X5
€ 1.00
14
26011061
ref: 14
WIRE-LEAD,SIGNAL LAMP
€ 2.50
15
23066003
ref: 15
DAMPER
€ 3.50
16
26009004
ref: 16
COVER-WIRING HARNESS
€ 1.00
17
110N0516
ref: 17
BOLT,5X16
€ 2.00
18
461F0500
ref: 18
WASHER-SPRING,5MM
€ 0.50
19
410D0500
ref: 19
WASHER-PLAIN,5MM
€ 1.50
20
23040038
ref: 20
TURN SIGNAL LAMP ASSEMBLY
€ 202.00
21
23051047
ref: 21
BRACKET-SIGNAL LAMP
€ 53.50
22
411B1200
ref: 22
WASHER-PLAIN,12MM
€ 0.50
23
461F1200
ref: 23
WASHER-SPRING,12MM
€ 0.50
24
311B1200
ref: 24
NUT,12MM
€ 0.50
