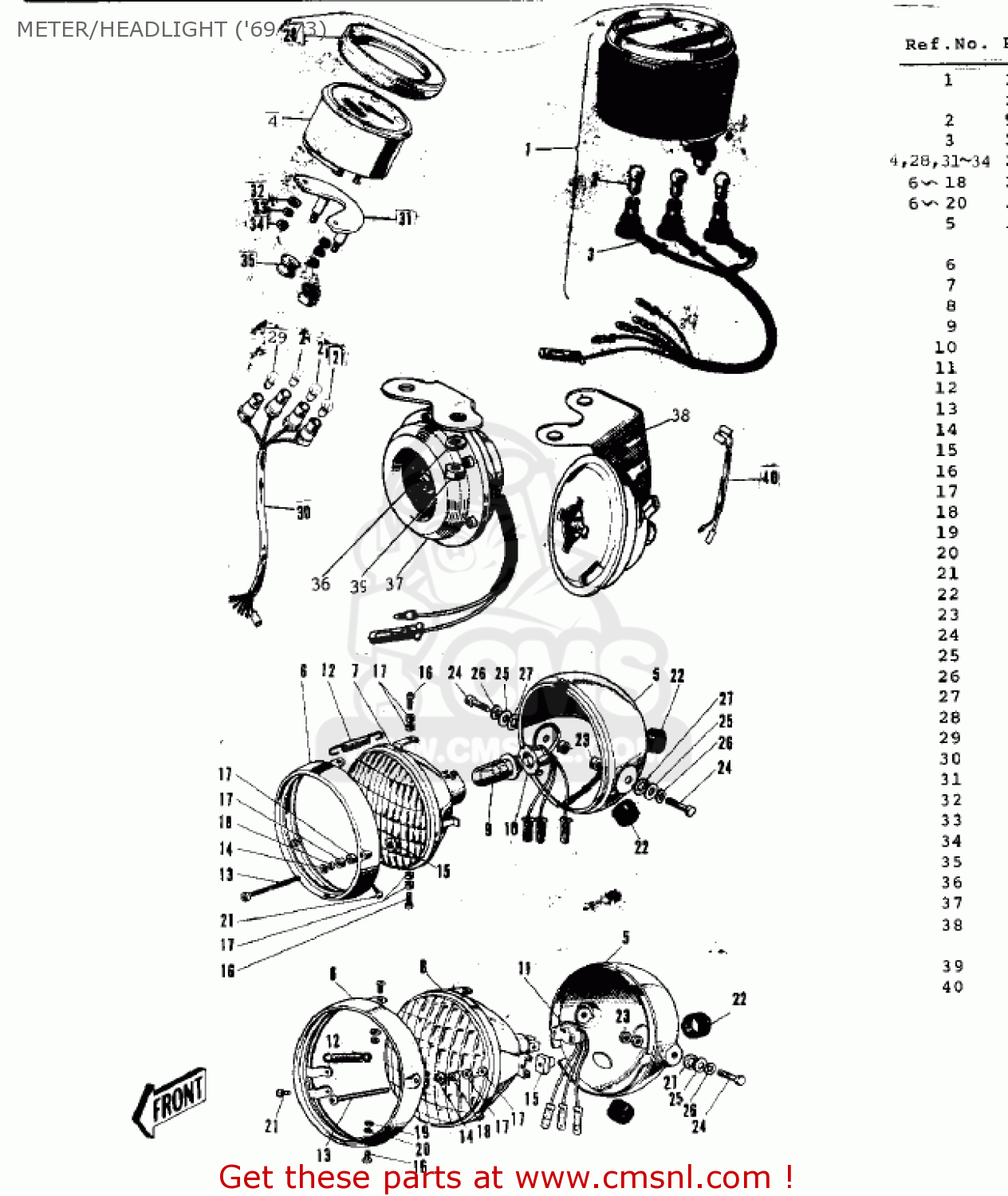

METER/HEADLIGHT ('69-'73)

ref

part #

description

quantity

1

25001008
ref: 1
MILE/H INDICATOR

SPEEDOMETER ASSY MPH

€ 149.50

1

25001050
ref: 1
G3SS-C

SPEEDOMETER ASSEMBLY,MPH

€ 228.00

2

92069024
ref: 2

BULB 6V 1.5W

€ 3.00

3

25011008
ref: 3

SOCKET,SPEEDO METER

€ 27.00

?

25001050
ref: ?
Includes items 4, 28

SPEEDOMETER ASSEMBLY,MPH

€ 228.00

?

23004011
ref: ?
Includes items 6 - 1

HEADLAMP,UNIT

€ 72.50

?

23003009
ref: ?
Includes items 6 - 2

LAMP UNIT-HEAD

€ 103.50

5

23005021
ref: 5

UNAVAILABLE IN PRICE BOOK

€ 0.00

5

2300502121
ref: 5
G3-A

BODY-HEAD LAMP,BLACK

€ 39.00

6

23006020
ref: 6

RIM-HEAD LAMP

€ 43.00

7

23007017
ref: 7

HEADLAMP UNIT LENS

€ 54.50

8

23007023
ref: 8

SEALED BEAM UNIT

€ 205.00

9

92069031
ref: 9

BULB 6V 25/25W

€ 6.50

10

23008009
ref: 10

SOCKET-ASSY,HEAD LAMP

€ 12.50

11

23008044
ref: 11

SOCKET-ASSY,HEAD LAMP

€ 15.00

12

23014008
ref: 12

SPRING-LENS FITTING

€ 1.00

13

23019013
ref: 13
I.S.O. THREAD

SCREW-ADJUST

€ 1.00

14

23021007
ref: 14

WASHER-ADJUST

€ 1.00

15

23020012
ref: 15
I.S.O. THREAD

NUT,ADJUSTING

€ 2.50

16

23019014
ref: 16
I.S.O. THREAD

SCREW-FITTING

€ 0.50

17

23020013
ref: 17
I.S.O. THREAD

NUT-ADJUST

€ 1.50

18

23058001
ref: 18

WASHER-FITTING

€ 1.00

19

311B0400
ref: 19
I.S.O. THREAD

NUT-HEX,4MM

€ 0.50

20

461F0400
ref: 20

WASHER-SPRING,4MM

€ 0.50

21

222E0508A
ref: 21

SCREW-OVL CNTSNK,5X8

€ 2.00

22

23023007
ref: 22

GROMMET

€ 2.00

23

92016027
ref: 23

NUT,10MM

€ 2.00

24

113N1020
ref: 24

BOLT-SMALL-FINE,10X20

€ 3.50

25

411B1000
ref: 25

WASHER-PLAIN,10MM

€ 0.50

26

461F1000
ref: 26

WASHER-SPRING,10MM

€ 0.50

27

463H1000
ref: 27

WASHER-LOCK,10MM

€ 0.50

28

25012003
ref: 28
G3SS-C

COVER

€ 23.50

29

92069053
ref: 29
G3SS-C

BULB 6V 3W

€ 3.00

30

25011025
ref: 30
G3SS-

SPEEDOMETER SOCKET

€ 56.50

31

25008021
ref: 31
G3SS-C

SPEEDOMETER BRACKET

€ 18.50

32

410B0500
ref: 32
G3SS-C

WASHER-PLAIN-SMALL,5M

€ 0.50

33

461F0500
ref: 33
G3SS-C

WASHER-SPRING,5MM

€ 0.50

34

311B0500
ref: 34
G3SS-C

NUT-HEX

€ 0.50

35

92075024
ref: 35
G3SS-C

DAMPER

€ 2.50

36

461F0600
ref: 36

WASHER-SPRING,6MM

€ 0.50

37

27003009
ref: 37

HORN

€ 40.00

38

27003055
ref: 38

HORN

€ 40.00

39

311B0600
ref: 39

NUT,6MM

€ 0.50

40

26002023
ref: 40
G3SS-C

LEAD WIRE-HORN

€ 2.00

all assemblies
