AIR CLEANER/MUFFLER ('74-'75)
G3TR BUSHMASTER 1970 USA

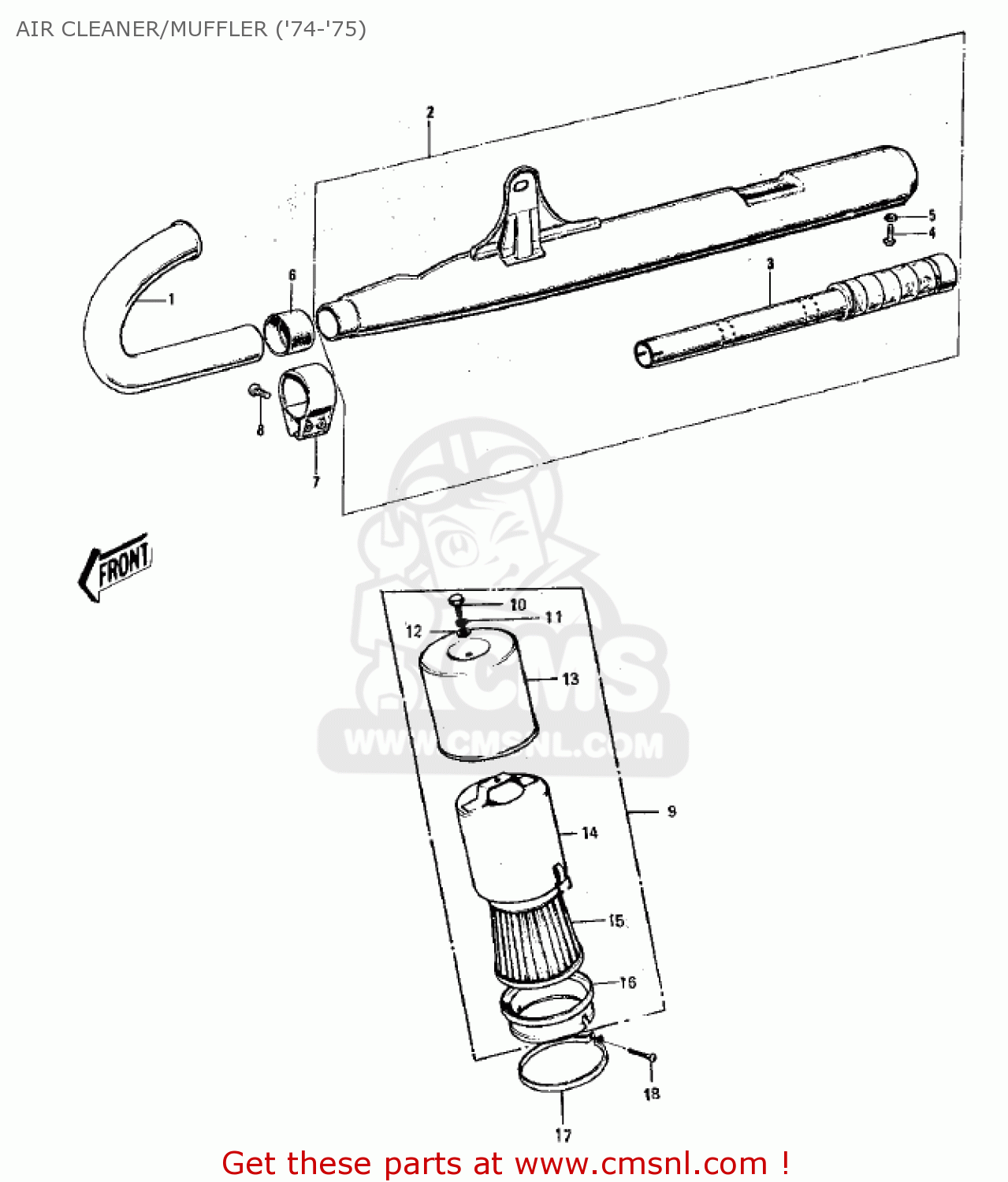

Air cleaner/muffler ('74-'75) diagram G3TR BUSHMASTER 1970 USA
AIR CLEANER/MUFFLER ('74-'75) G3TR BUSHMASTER 1970 USA
×
prices are in EUR
ref
part #
description
quantity
1
18049021
ref: 1
PIPE-EXHAUST
€ 59.50
2
18001116
ref: 2
MUFFLER ASSY
€ 175.50
3
18033057
ref: 3
BAFFLE TUBE
€ 43.00
4
220B0608
ref: 4
SCREW-PAN HEAD,6X8
€ 0.50
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
18043008
ref: 6
SEAL,MUFFLER
€ 27.00
7
1804400479
ref: 7
HOLDER,MUFFLER CONECT
€ 19.00
8
220B0625
ref: 8
SCREW-PAN HEAD,6X25
€ 1.50
9
11010036
ref: 9
AIR CLEANER ASSY
€ 101.00
10
112G0612
ref: 10
BOLT-UPSET
€ 2.50
11
461F0600
ref: 11
WASHER-SPRING,6MM
€ 0.50
12
410B0600
ref: 12
WASHER-PLAIN-SMALL,6M
€ 0.50
13
11012012
ref: 13
CAP A,AIR CLEANER
€ 18.00
14
11011009
ref: 14
BODY-AIR CLEANER
€ 16.00
15
11013027
ref: 15
ELEMENT-AIR FILTER
€ 15.00
16
11012013
ref: 16
CAP,AIR FILTER
€ 16.00
17
92037018
ref: 17
CLAMP-AIR CLEANER
€ 3.50
18
220B0625
ref: 18
SCREW-PAN HEAD,6X25
€ 1.50
