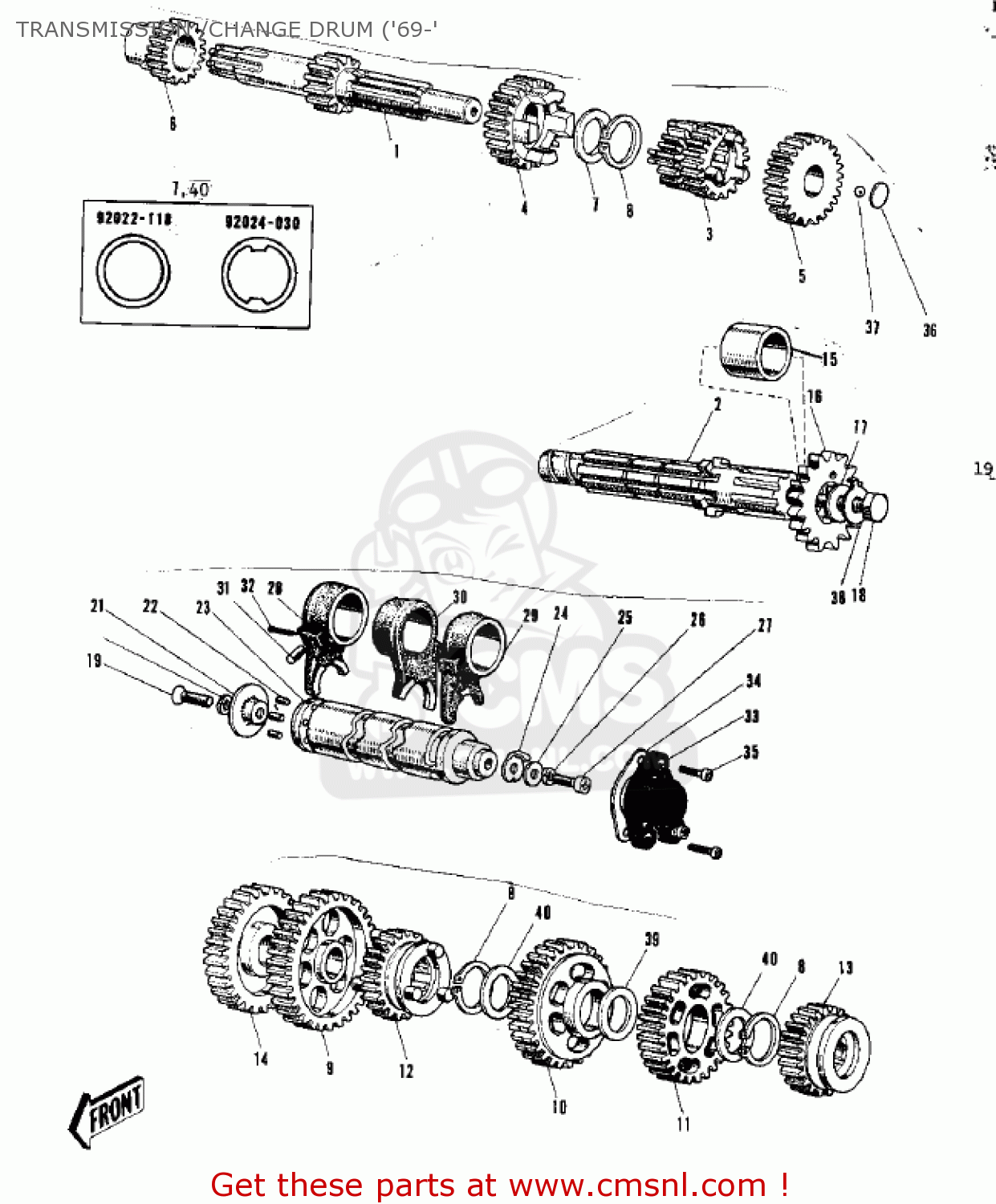

TRANSMISSION /CHANGE DRUM ('69-'

ref

part #

description

quantity

1

13127032
ref: 1
12 TEETH

SHAFT,DRIVE

€ 76.00

2

13128021
ref: 2

SHAFT-OUTPUT

€ 160.50

3

131291052
ref: 3
17/20 TEETH

GEAR,INPUT 2ND&3RD,17

€ 55.00

4

131291053
ref: 4
22 TEETH

GEAR,INPUT 4TH,16T

€ 23.50

5

131291927
ref: 5
24 TEETH

GEAR, INPUT TOP 24T

€ 25.00

6

13075004
ref: 6
16 TEETH

GEAR-SPUR,KICKSTARTER

€ 40.50

7

92022118
ref: 7
T=1.2 M/M

WASHER,18.5X23X1.2

€ 3.00

8

92033014
ref: 8

RING-SNAP,16MM

€ 3.50

9

13129010
ref: 9
35 TEETH

GEAR,OUTPUT LOW,35T

€ 66.50

10

13131008
ref: 10
30 TEETH

GEAR,OUTPUT 2ND,30T

€ 40.50

11

13133005
ref: 11
26 TEETH

GEAR,OUTPUT 3RD,26T

€ 46.50

12

131291708
ref: 12
24 TEETH

GEAR,OUTPUT 4TH,24T

€ 70.00

13

13137012
ref: 13
23 TEETH

TOP GEAR-OUTPUT SHAFT

€ 28.50

14

13073004
ref: 14
30 TEETH

GEAR-SPUR,KICKSTARTER

€ 55.50

15

92027009
ref: 15

SPACER-ENG SPROCKET

€ 12.50

15

92027179
ref: 15
E/NO 297482 & UP

COLLAR,ENG SPROCKET

€ 12.50

16

131441058
ref: 16
14 TEETH

SPROCKET-OUTPUT,14T

€ 20.00

17

92022130
ref: 17

WASHER-ENG SPROCKET

€ 2.00

18

115G0816
ref: 18

BOLT-HEX,HEAD 8X16

€ 0.50

?

13239005
ref: ?
Includes items 19 -

DRUM ASSY-GEAR CHANGE

€ 165.00

19

220B0612
ref: 19

SCREW-PAN HEAD,6X12

€ 1.00

20

464H0600
ref: 20

WASHER-LOCK,6MM

€ 0.50

21

13142008
ref: 21

PLATE-CHANGE DRUM PIN

€ 4.00

22

92042014
ref: 22

PIN-GEAR CHANGE DRUM

€ 0.50

23

13239005
ref: 23

DRUM ASSY-GEAR CHANGE

€ 165.00

24

210071003
ref: 24

ROTOR,TOP & NEUTRAL

€ 4.50

25

410B0600
ref: 25

WASHER-PLAIN-SMALL,6M

€ 0.50

26

461F0600
ref: 26

WASHER-SPRING,6MM

€ 0.50

27

92011003
ref: 27

SCREW PAN HEAD 6X16

€ 2.50

28

13140010
ref: 28

FORK-SHIFT,LOW&2ND

€ 81.50

29

13140009
ref: 29

FORK-SELECTOR,3RD

€ 46.50

30

13140017
ref: 30

FORK-SELECTOR,4TH-TOP

€ 120.00

31

92043005
ref: 31

PIN,DOWEL,8X15

€ 4.50

32

550D3020
ref: 32

PIN-COTTER,3.0X20

€ 2.00

33

131511001
ref: 33

SWITCH-COMP,NEUTRAL

€ 9.50

34

13146002
ref: 34

GASKET,NEUTRAL SWITCH (NAS)

€ 2.50

35

220B0616
ref: 35

SCREW-PAN HEAD,6X16

€ 2.50

36

92022115
ref: 36

WASHER,THRUST

€ 2.50

37

600A0700
ref: 37

BALL-STEEL,7/32

€ 2.50

38

92030007
ref: 38

WASHER-LOCK,8MM

€ 1.00

39

92022146
ref: 39
T=1.6 M/M

WASHER,THRUST,18.5X23

€ 4.50

40

92024030
ref: 40

WASHER,TOOTHED,18.5X2

€ 4.00

all assemblies
