TAILIGHT ('74-'75)
G3SSC 1973 USA CANADA

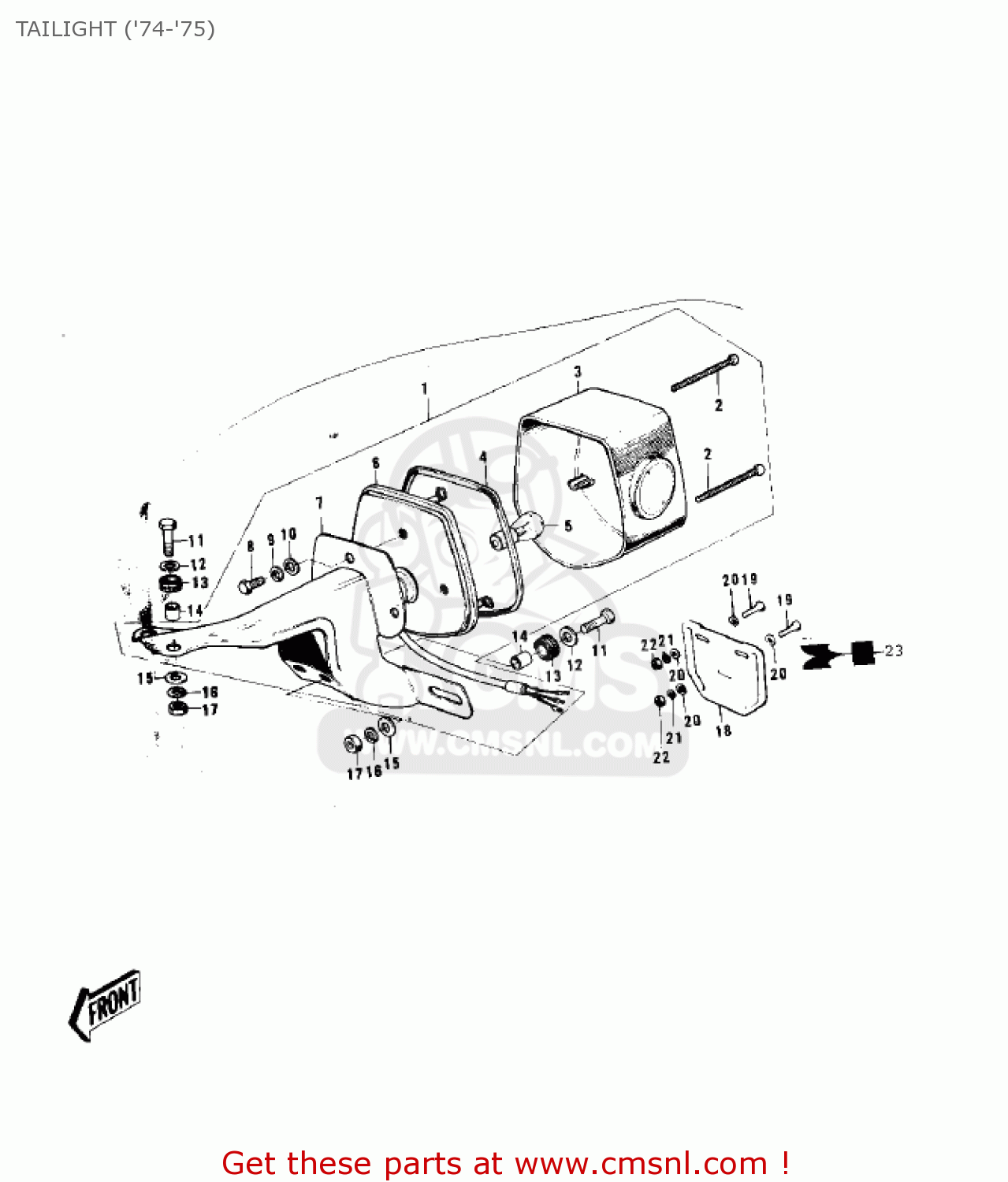

Tailight ('74-'75) diagram G3SSC 1973 USA CANADA
TAILIGHT ('74-'75) G3SSC 1973 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
2302404910
ref: 1
BLACK
TAIL LAMP ASSEMBLY,BLACK
€ 228.00
2
220R0455
ref: 2
SCREW-PAN-CROS
€ 3.50
3
23026028
ref: 3
LENS,TAIL LAMP,W/REFL
€ 48.50
4
23028019
ref: 4
GASKET,TAIL LAMP LENS (NAS)
€ 5.50
5
92069074
ref: 5
BULB,6V-32X3CP
€ 4.50
6
230271018
ref: 6
TAIL LAMP BODY,COMPLETE
€ 55.00
7
2303603010
ref: 7
BLACK
BRACKET,LICENSE PLATE
€ 64.00
8
112B0614
ref: 8
BOLT-UPSET 6X14
€ 2.50
9
461F0600
ref: 9
WASHER-SPRING,6MM
€ 0.50
10
411B0600
ref: 10
WASHER-PLAIN,6MM
€ 0.50
11
112B0622
ref: 11
BOLT, 6X22
€ 2.50
12
92022125
ref: 12
WASHER,6.5X20X1.6
€ 1.00
13
92075076
ref: 13
DAMPER
€ 3.00
14
92027129
ref: 14
COLLAR,6.8X10X8.5
€ 3.00
15
411B0600
ref: 15
WASHER-PLAIN,6MM
€ 0.50
16
461F0600
ref: 16
WASHER-SPRING,6MM
€ 0.50
17
311B0600
ref: 17
NUT,6MM
€ 0.50
18
110341117
ref: 18
BRACKET,LICENSE PLATE
€ 12.50
19
112G0620
ref: 19
BOLT 6X20
€ 1.00
20
411B0600
ref: 20
WASHER-PLAIN,6MM
€ 0.50
21
461F0600
ref: 21
WASHER-SPRING,6MM
€ 0.50
22
311B0600
ref: 22
NUT,6MM
€ 0.50
23
56018176
ref: 23
EMBLEM,LICENSE PLATE
€ 8.50
