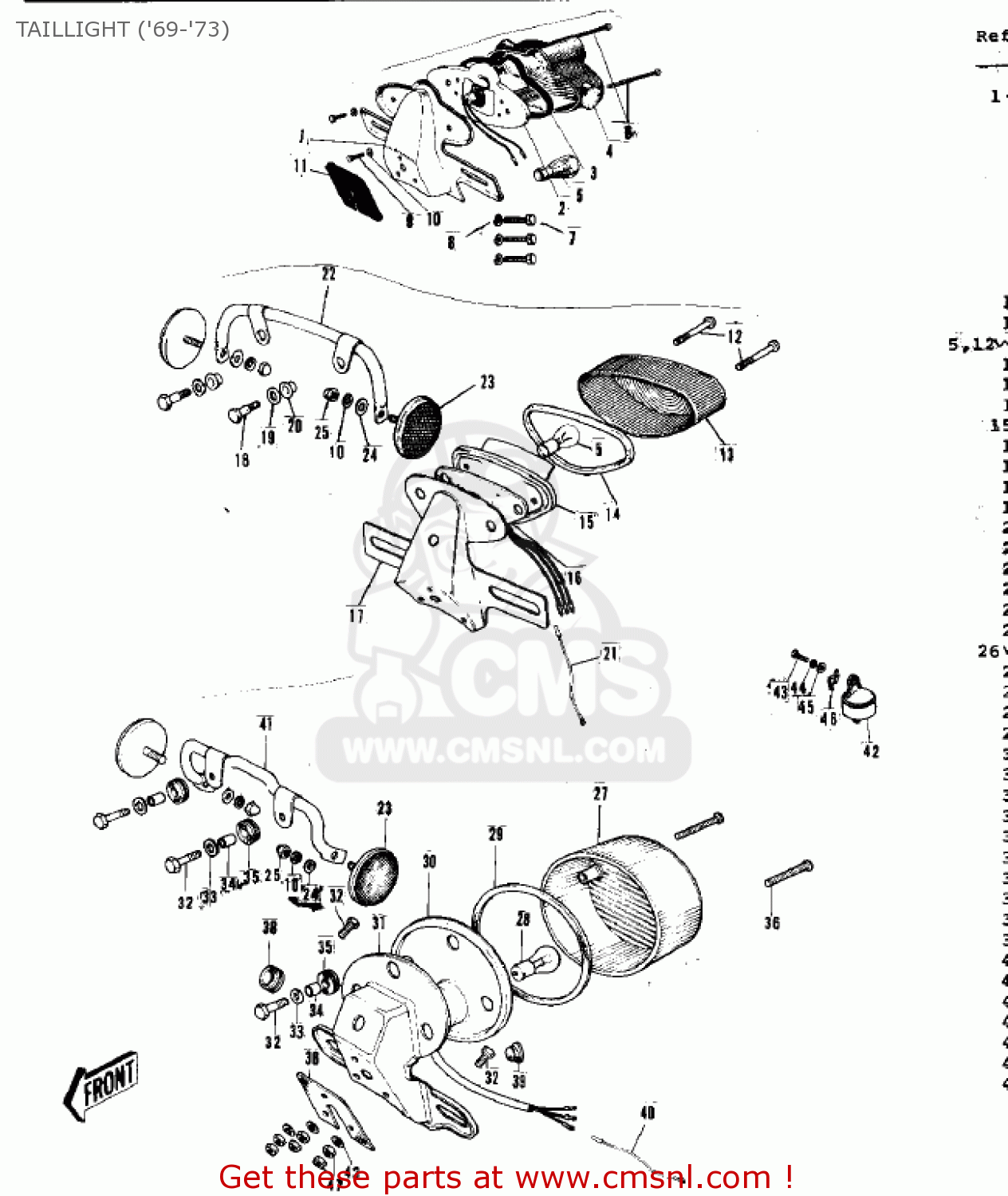

TAILLIGHT ('69-'73)

ref

part #

description

quantity

?

2302401921
ref: ?
Includes items 1 - 1

LAMP ASSY-TAIL,BLACK

€ 99.00

1

2303600710
ref: 1

BKT-LICENSE PLT,BLACK

€ 33.00

2

23027009
ref: 2

SOCKET-TAIL LAMP

€ 18.00

3

23028008
ref: 3

GASKET-TAIL LAMP (NAS)

€ 4.00

4

23026010
ref: 4

LENS,TAIL LAMP

€ 64.50

5

92069023
ref: 5

BULB 6V 3/21CP

€ 4.00

6

220E0450
ref: 6

SCREW-PAN HEAD,4X50

€ 3.00

7

112G0612
ref: 7

BOLT-UPSET

€ 2.50

8

461F0600
ref: 8

WASHER-SPRING,6MM

€ 0.50

9

110B0510
ref: 9

BOLT-HEX HEAD,5X10

€ 0.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

35039002
ref: 11

TAIL LAMP SHOCK DAMPER

€ 1.50

?

2302401921
ref: ?
Includes item 5 and

LAMP ASSY-TAIL,BLACK

€ 99.00

12

220R0455
ref: 12
G3SS-B

SCREW-PAN-CROS

€ 3.50

13

23026022
ref: 13
G3SS-B

LENS,TAIL LAMP

€ 47.50

14

23028016
ref: 14
G3SS-B

GASKET-TAIL LAMP LENS (NAS)

€ 7.00

?

23027029
ref: ?
Includes items 15 an

CASE-TAIL LAMP

€ 24.50

16

23028015
ref: 16
G3SS-B

GASKET-TAIL LAMP CASE (NAS)

€ 6.50

17

2303601421
ref: 17
G3SS-B

BKT-LICENSE PLT,BLACK

€ 25.50

18

92001111
ref: 18
G3SS-B

BOLT

€ 6.50

19

920221561
ref: 19
G3SS-B

WASHER,8.5X20X1.6

€ 2.50

20

92075091
ref: 20
G3SS-B

DAMPER RUBBER

€ 1.50

21

26011014
ref: 21
G3SS-B

WIRE-IGNITION LEAD

€ 1.00

22

28013002
ref: 22
G3SS-B

BRACKET-REFLECTOR

€ 8.50

23

28012008
ref: 23
G3SS-B

REFLECTOR-REFLEX,REAR

€ 8.50

24

411B0500
ref: 24
G3SS-B

WASHER-PLAIN,5MM

€ 0.50

25

322N0500
ref: 25
G3SS-B

NUT-CAP,5MM

€ 2.00

?

23024024
ref: ?
Includes items 26 -

TAIL LAMP ASSEMBLY

€ 159.50

26

220E0435A
ref: 26
G3SS-C

SCREW-PAN HEAD,4X35

€ 4.50

27

23026023
ref: 27
G3SS-C

LENS,TAIL LAMP

€ 91.50

28

92069028
ref: 28
G3SS-C

BULB 6V 17/5.3W

€ 4.50

29

23028018
ref: 29
G3SS-C

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

30

23027030
ref: 30
G3SS-C

BODY-COMP-TAIL LAMP

€ 76.00

31

23036021
ref: 31
G3SS-C

LICENSE PLATE BRACKET

€ 118.50

32

112G0620
ref: 32
G3SS-C

BOLT 6X20

€ 1.00

33

92022125
ref: 33
G3SS-C

WASHER,6.5X20X1.6

€ 1.00

34

92027129
ref: 34
G3SS-C

COLLAR,6.8X10X8.5

€ 3.00

35

92075076
ref: 35
G3SS-C

DAMPER

€ 3.00

36

35039005
ref: 36
G3SS-C

DAMPER,TAIL LAMP

€ 6.50

37

312B0600
ref: 37
G3SS-C

NUT,6MM

€ 0.50

38

92071019
ref: 38
G3SS-C

GROMMET,10MM

€ 2.50

39

92074006
ref: 39
G3SS-C

PLUG,FENDER,RR,12X1

€ 4.00

40

26011014
ref: 40
G3SS-C

WIRE-IGNITION LEAD

€ 1.00

41

28012006
ref: 41
G3SS-C

REFLECTOR-REFLEX,FRNT

€ 16.00

42

27002015
ref: 42
G3SS-C

RELAY-ASSY,TURN SIGNA

€ 33.50

43

220B0616
ref: 43
G3SS-C

SCREW-PAN HEAD,6X16

€ 2.50

44

461F0600
ref: 44
G3SS-C

WASHER-SPRING,6MM

€ 0.50

45

92022125
ref: 45
G3SS-C

WASHER,6.5X20X1.6

€ 1.00

46

35024002
ref: 46
G3SS-C

CLAMP,WIRING HARNESS

€ 2.00

all assemblies
