FUEL TANK ('74-'75)

G3SS 1969 USA CANADA

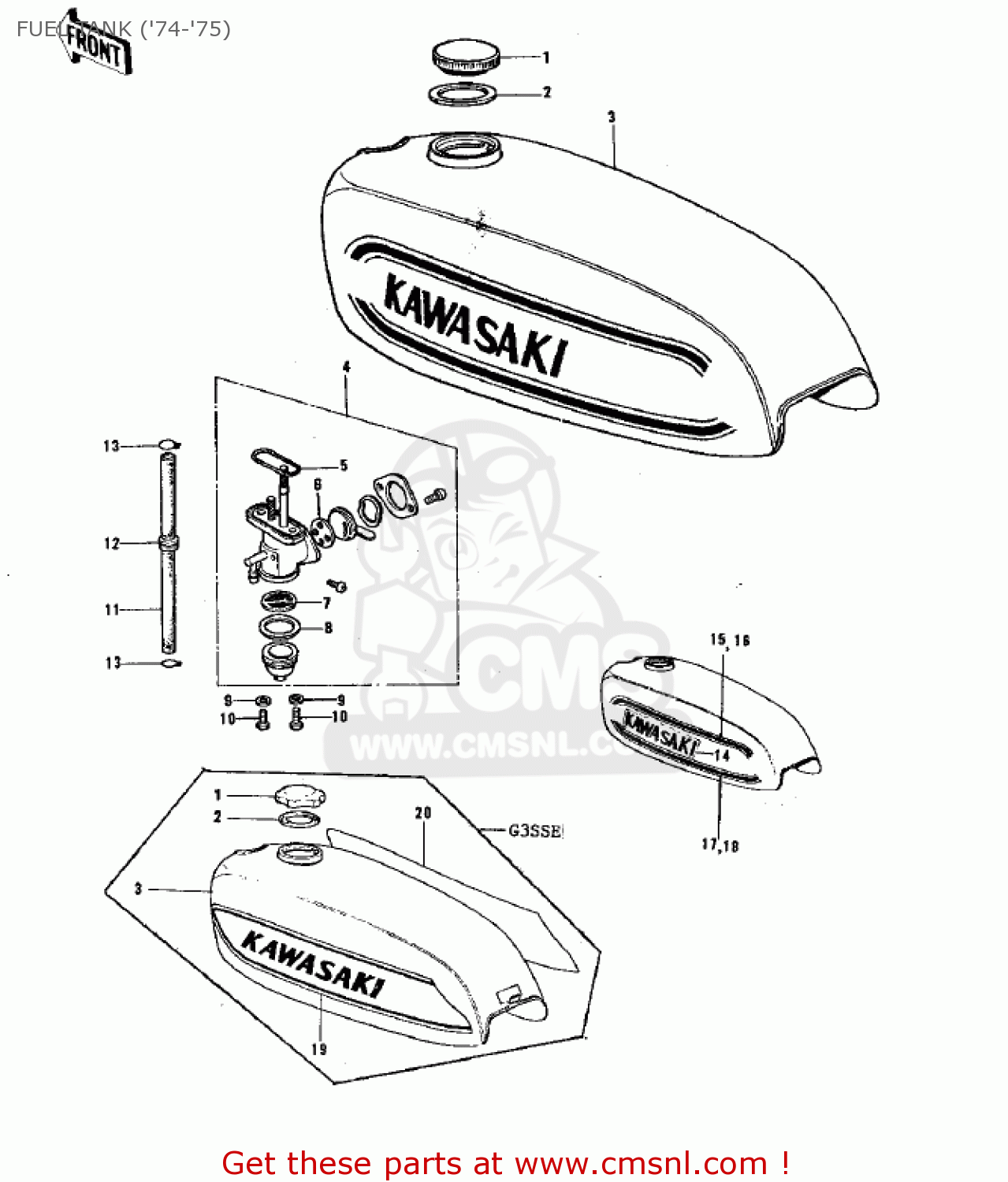

Fuel tank ('74-'75) diagram G3SS 1969 USA CANADA

FUEL TANK ('74-'75) G3SS 1969 USA CANADA

FUEL TANK ('74-'75) G3SS 1969 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

51048006
ref: 1

CAP-ASSY-TANK,FUEL

€ 67.00

1

510481013
ref: 1
G3SSE

CAP-ASSY-TANK,FUEL

€ 37.50

2

51059003
ref: 2

GASKET-FUEL TANK CAP (NAS)

€ 4.00

2

51059011
ref: 2
G3SSE

GASKET,FUEL TANK CAP (NAS)

€ 5.50

3

510010941Q
ref: 3

FUEL TANK,CANDY LIME

€ 570.50

3

510010942K
ref: 3
G3SSE

FUEL TANK,HALIBUT RED

€ 570.50

4

510231020
ref: 4

TAP-ASSY,FUEL

€ 41.00

4

510231001
ref: 4
G3SSE

TAP-ASSY,FUEL

€ 43.50

5

51039003
ref: 5

'O' RING

€ 4.00

6

92065094
ref: 6

GASKET,FUEL COCK LEV (NAS)

€ 8.50

7

51038008
ref: 7

STRAINER,FUEL

€ 8.50

8

51037011
ref: 8

GASKET,FUEL COCK CUP (NAS)

€ 3.00

9

92022183
ref: 9

WASHER,6.2X11X1.5

€ 2.50

10

92001114
ref: 10

BOLT-HEX HEAD,6X16

€ 2.50

11

92059072
ref: 11

TUBE,4.5X9X545

€ 22.00

11

92059100
ref: 11
G3SSE

FUEL PIPE

€ 8.00

12

92071038
ref: 12

GROMMET,PIPE

€ 2.50

13

92037010
ref: 13

CLAMP-FUEL PIPE

€ 2.50

14

56014048
ref: 14
TRANSFER TYPE SPECIA

FUEL TANK DECAL

€ 9.50

15

56027175
ref: 15
TRANSFER TYPE SPECIA

FUEL TANK DECAL STRIPE,LH

€ 9.50

16

56027176
ref: 16
TRANSFER TYPE SPECIA

FUEL TANK DECAL STRIPE,RH

€ 9.50

17

56027187
ref: 17
TRANSFER TYPE SPECIA

FUEL TANK DECAL STRIPE,LH

€ 9.50

18

56027188
ref: 18
TRANSFER TYPE SPECIA

FUEL TANK DECAL STRIPE,RH

€ 9.50

19

56027298SP
ref: 19
G3SSE

UNAVAILABLE IN PRICE BOOK

€ 0.00

20

56027299SP
ref: 20
G3SSE

UNAVAILABLE IN PRICE BOOK

€ 0.00
