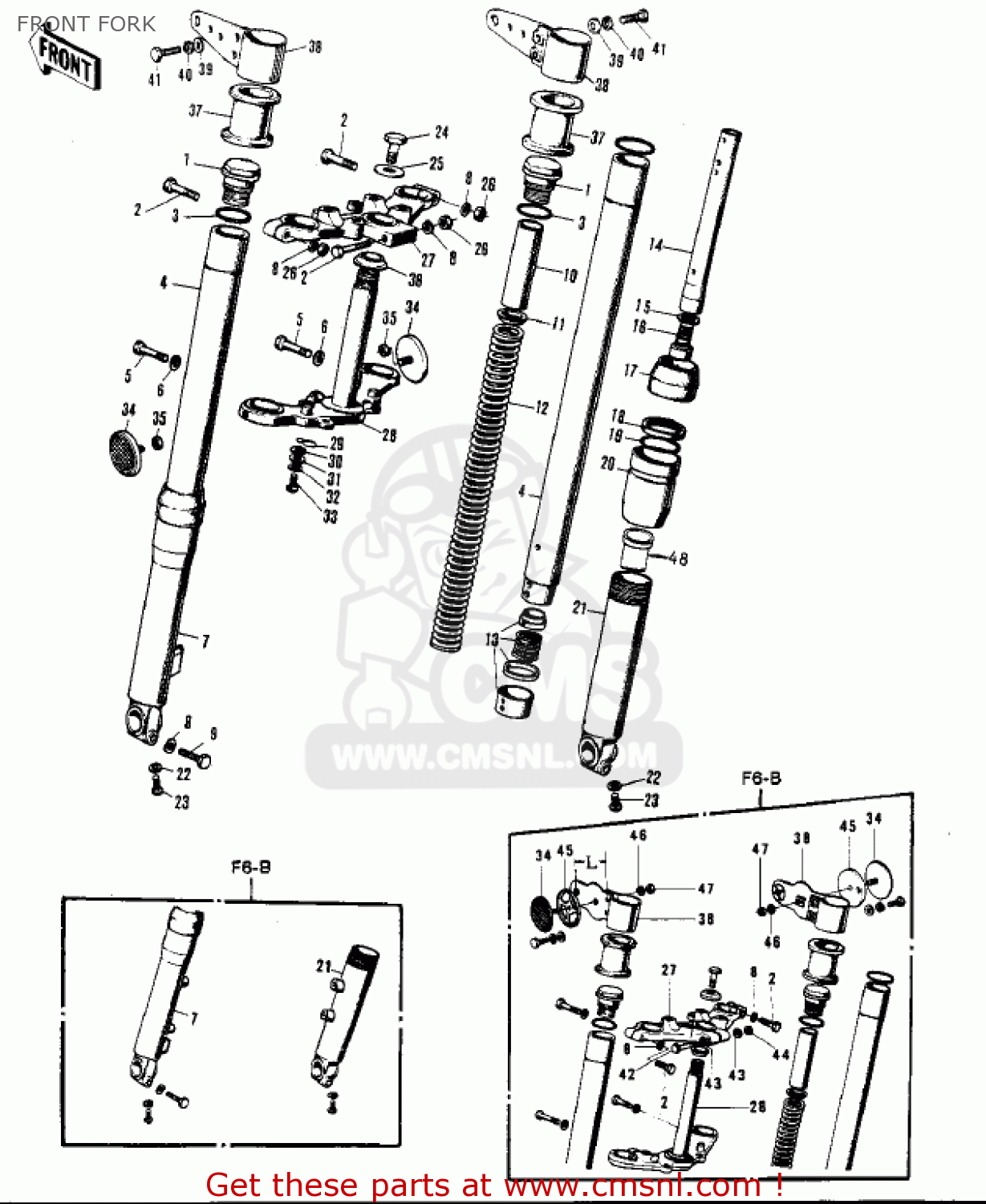

FRONT FORK

ref

part #

description

quantity

1-28

44001069
ref: 1-28
F6

FRONT FORK ASSEMBLY

€ 985.00

1-28

44001086
ref: 1-28
F6-A

FRONT FORK ASSY

€ 382.00

1-28

44001101
ref: 1-28
F6-B

FRONT FORK

€ 1,396.00

1

44041036
ref: 1

BOLT-FORK TOP

€ 9.50

2

920011578
ref: 2
F6/A

BOLT,FLANGED,8X40

€ 4.00

2

44041044
ref: 2
F6-B

BOLT-STEERING STEM HD

€ 6.50

3

44046014
ref: 3

'O' RING-INNER TUBE

€ 4.00

4

44013028
ref: 4

TUBE-FORK INNER

€ 85.00

5

113B1032
ref: 5

BOLT-HEX HEAD,10X32

€ 3.50

6

461F1000
ref: 6

WASHER-SPRING,10MM

€ 0.50

7

44005037
ref: 7

TUBE-L.H OUTER

€ 93.50

8

461F0800
ref: 8
F6/A

WASHER-SPRING,8MM

€ 0.50

8

461F0800
ref: 8
F6-B

WASHER-SPRING,8MM

€ 0.50

9

116B0825
ref: 9

BOLT-HEX HEAD,8X25

€ 3.00

10

44028106
ref: 10

UNAVAILABLE IN PRICE BOOK

€ 0.00

11

44029012
ref: 11

GUIDE-FORK SPRING

€ 1.00

12

44026036
ref: 12

SPRING-FORK

€ 11.50

13&14

44022006
ref: 13&14

CYLINDER-FORK

€ 94.00

15

44045030
ref: 15

GASKET,FORK CYLINDER

€ 2.50

16

44041027
ref: 16

BOLT-FORK CYLINDER

€ 2.50

17

44010006
ref: 17

SEAL,FORK

€ 24.00

18

920491049
ref: 18

SEAL-OIL

€ 14.50

19

44046012
ref: 19

RING-O,OUTER PIPE

€ 4.00

20

44007007
ref: 20

NUT-FORK OUTER TUBE

€ 41.50

21

44006035
ref: 21

TUBE-R.H OUTER

€ 113.50

22

44045002
ref: 22

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

23

220B0408
ref: 23

SCREW-PAN-CROS

€ 0.50

24

44041007
ref: 24

BOLT-STRNG STEM HEAD

€ 11.50

25

44043016
ref: 25

WASHER,FORK UPPER HOL

€ 7.00

26

311B0800
ref: 26

NUT,8MM

€ 0.50

27

44039035
ref: 27
F6 A

HEAD-STEERING STEM

€ 98.00

27

44039049
ref: 27
F6-B

HEAD-STEERING STEM

€ 91.50

28

44037035
ref: 28
F6

STEERING STEM

€ 267.00

28

44037039
ref: 28
F6-A

STEM-STEERING

€ 129.00

28

44037054
ref: 28
F6-B

STEM-STEERING

€ 133.50

29

92037046
ref: 29

CLAMP,CABLE

€ 3.00

30

464H0600
ref: 30

WASHER-LOCK,6MM

€ 0.50

31

411B0600
ref: 31

WASHER-PLAIN,6MM

€ 0.50

32

461F0600
ref: 32

WASHER-SPRING,6MM

€ 0.50

33

112G0610
ref: 33

BOLT,6X10

€ 0.50

34

28001007
ref: 34
F6 A

REFLECTOR-REFLEX

€ 3.00

34

28012006
ref: 34
F6-B

REFLECTOR-REFLEX,FRNT

€ 16.00

35

311B0500
ref: 35

NUT-HEX

€ 0.50

36

92047004
ref: 36

CONE-LOWER BEARING

€ 13.00

37

92075064
ref: 37

DAMPER RUBBER

€ 5.50

38

2306400421
ref: 38
F6 A

BRACKET-HEAD LAMP,BLK

€ 4.00

38

2306401221
ref: 38
F6-B

BRACKET-HEAD LAMP,BLK

€ 5.00

39

410B0600
ref: 39

WASHER-PLAIN-SMALL,6M

€ 0.50

40

461F0600
ref: 40

WASHER-SPRING,6MM

€ 0.50

41

112G0618
ref: 41

BOLT-UPSET

€ 0.50

42

44041042
ref: 42
F6-B

BOLT-STEERING STEM HD

€ 3.00

43

410B0800
ref: 43
F6-B

WASHER-PLAIN-SMALL,8M

€ 0.50

44

920151124
ref: 44
F6-B

NUT,LOCK,8MM

€ 3.50

45

92075137
ref: 45
F6-B

DAMPER RUBBER

€ 3.00

46

461F0500
ref: 46

WASHER-SPRING,5MM

€ 0.50

47

311B0500
ref: 47

NUT-HEX

€ 0.50

48

44015012
ref: 48

FORK INNER TUBE GUIDE

€ 22.00

all assemblies
