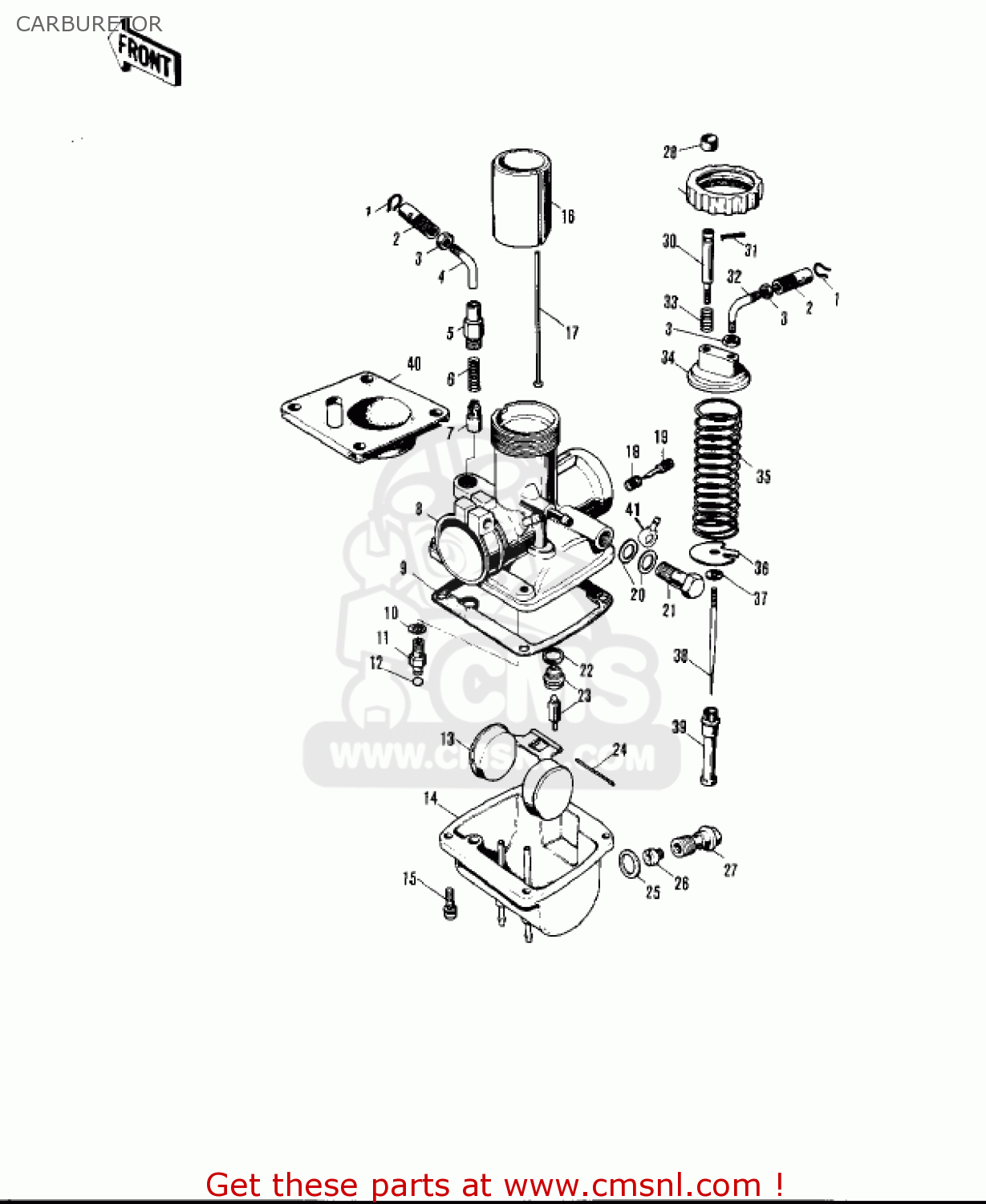

CARBURETOR

ref

part #

description

quantity

1

92036018
ref: 1

CIRCLIP

€ 2.50

2

16002007
ref: 2

ADJUSTER-CABLE,THROTT

€ 7.50

3-39

16001126
ref: 3-39

CARBURETOR ASSY

€ 90.00

3-39

16001212
ref: 3-39

CARBURETOR ASSY

€ 90.00

3

16003004
ref: 3

NUT-CABLE ADJUST LOCK

€ 4.50

4

16077005
ref: 4

CABLE GUIDE

€ 3.50

5

16012014
ref: 5

CAP-STARTER PLUNGER

€ 3.00

6

16013003
ref: 6

SPRING-STARTER PLUNG

€ 4.00

7

16016002
ref: 7

PLUNGER,STARTER

€ 20.00

9

16019013
ref: 9

GASKET-FLOAT CHAMBER (NAS)

€ 16.50

10

16034001
ref: 10

WASHER-MAIN JET

€ 2.50

11

16065008
ref: 11

HOLDER,JET NEEDLE

€ 12.00

12

92055044
ref: 12

'O' RING

€ 7.00

13

16031016
ref: 13

FLOAT

€ 88.00

15

16033009
ref: 15

SCREW-FLOAT CHAMBER

€ 0.50

16

16025069
ref: 16
CA 2.5

VALVE,THROTTLE CA2.5

€ 42.50

17

16024009
ref: 17

ROD-THROTTLE VLV STOP

€ 4.00

18

16022007
ref: 18

SPRING-THR STOP SCREW

€ 5.50

19

16014002
ref: 19

SCREW-PILOT AIR

€ 11.00

20

92065078
ref: 20

GASKET-BANJO BOLT (NAS)

€ 1.00

21

92001014
ref: 21

BOLT-BANJO

€ 11.50

22

16029004
ref: 22

WASHER-FLOAT VLV SEAT

€ 2.50

23

16030025
ref: 23

VALVE-FLOAT,#2.6

€ 82.00

24

16032003
ref: 24

FLOAT PIN

€ 4.00

25

16034005
ref: 25
ASBESTOS

WASHER,BANJO BOLT (MCA)

€ 3.00

26

92063055
ref: 26
S.T.D.

MAIN JET,#125R

€ 9.50

26

920631100
ref: 26
OPTION

JET-MAIN,#A127.5

€ 9.50

26

92063057
ref: 26
OPTION

MAIN JET,#130R

€ 9.50

26

920631101
ref: 26
OPTION

JET-MAIN,#A122.5

€ 9.50

26

92063078
ref: 26
OPTION

MAIN JET,#120R

€ 11.50

27

92001097
ref: 27

BOLT-BANJO

€ 15.50

28

16037002
ref: 28

CAP,PILOT SCREW

€ 4.50

29

16004011
ref: 29

CAP-MIXING CHAMBER

€ 6.00

30

16021010
ref: 30

SCREW-THROTTLE STOP

€ 12.00

31

550D1210
ref: 31

PIN-COTTER,1.2X10

€ 1.50

32

16077001
ref: 32

GUIDE,CABLE

€ 6.50

33

16022008
ref: 33

SPRING-THR STOP SCREW

€ 1.50

34

16005020
ref: 34

TOP-MIXING CHAMBER

€ 6.50

35

16006014
ref: 35

SPRING-THROTTLE VALVE

€ 10.00

36

16007024
ref: 36

SPRING SEAT,THRTL VL

€ 5.50

37

16008010
ref: 37

CLAMP,E-TYPE

€ 5.00

38

16009012
ref: 38
4J13

JET NEEDLE 4J13

€ 5.50

39

16017055
ref: 39
O-2

NEEDLE JET,0-2

€ 17.50

40

14038027
ref: 40

CAP-CARBURETOR

€ 6.50

41

92061016
ref: 41

UNAVAILABLE IN PRICE BOOK

€ 0.00

all assemblies
