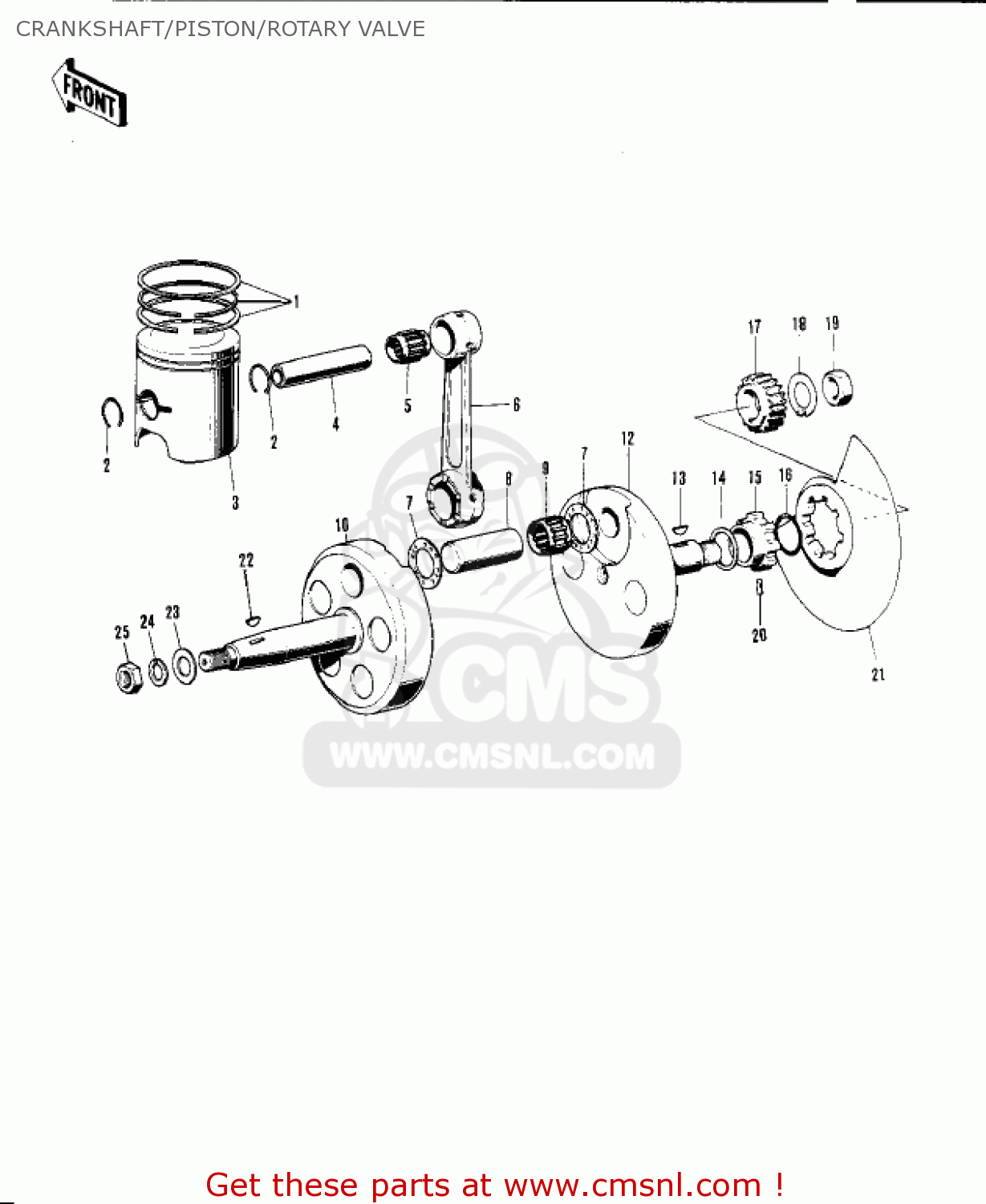

CRANKSHAFT/PISTON/ROTARY VALVE

ref

part #

description

quantity

1

13008028
ref: 1

RING SET,STD

€ 45.00

2

92036003
ref: 2

CIRCLIP-PISTON PIN

€ 0.50

3

13001045
ref: 3

PISTON,STD

€ 28.00

4

13002005A
ref: 4

PISTON PIN

€ 10.00

5

13033035
ref: 5

BEARING-NEEDLE,UR1412

€ 16.00

6-9

13044039
ref: 6-9

CONNECTING ROD SET

€ 186.00

6-12

13036028
ref: 6-12

CRANK&CONROD ASSY

€ 287.00

7

92026011
ref: 7

SPACER,22.5X37X1.0

€ 6.50

8

13035022
ref: 8

CRANK PIN

€ 17.50

9

13034042
ref: 9

BEARING-NEEDLE,22VS29

€ 18.00

10

13037040
ref: 10

CTANKSHAFT,L.H

€ 111.00

12

13038034
ref: 12

CRANKSHAFT,R.H

€ 287.00

13

92038003
ref: 13

WOODRUFF KEY-PRY PINI

€ 1.50

14

92027118
ref: 14

COLLAR-CRANKSHAFT

€ 2.50

15

92027100
ref: 15

COLLAR-R.H CRNK SHFT

€ 37.00

16

92055018
ref: 16

RING-O,22MM

€ 2.50

17

13121027
ref: 17

PINION,PRIMARY

€ 58.50

18

92024067
ref: 18

WASHER,LOCK

€ 2.00

19

92015019
ref: 19

NUT,18MM

€ 4.00

20

610A0412
ref: 20

ROLLER,4X12

€ 2.50

21

12002022
ref: 21

VALVE-ROTARY DISC

€ 64.00

22

510A3200
ref: 22

KEY-WOODRUFF

€ 1.50

23

92022176
ref: 23

WASHER,10X22X3.2

€ 3.00

24

461F1000
ref: 24

WASHER-SPRING,10MM

€ 0.50

25

314B1000
ref: 25

NUT,10MM

€ 0.50
