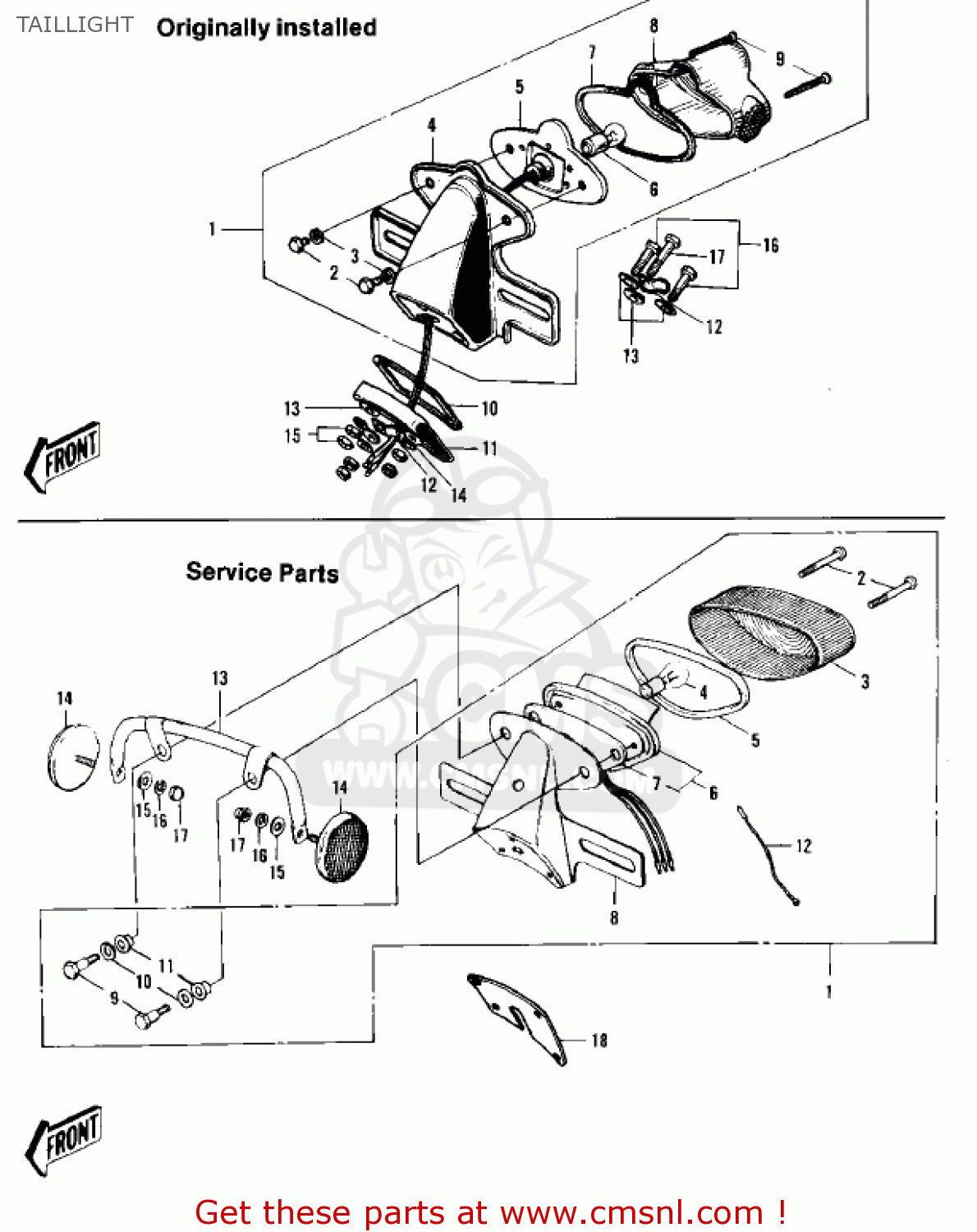

TAILLIGHT

ref

part #

description

quantity

1

2302401921
ref: 1
ORIGINALLY INSTALLED

LAMP ASSY-TAIL,BLACK

€ 99.00

2

110N0510A
ref: 2
ORIGINALLY INSTALLED

BOLT-HEX HEAD,5X10

€ 2.00

3

461F0500
ref: 3
ORIGINALLY INSTALLED

WASHER-SPRING,5MM

€ 0.50

4

2303600710
ref: 4
ORIGINALLY INSTALLED

BKT-LICENSE PLT,BLACK

€ 33.00

5

23027009
ref: 5
ORIGINALLY INSTALLED

SOCKET-TAIL LAMP

€ 18.00

6

92069023
ref: 6
ORIGINALLY INSTALLED

BULB 6V 3/21CP

€ 4.00

7

23028008
ref: 7
ORIGINALLY INSTALLED

GASKET-TAIL LAMP (NAS)

€ 4.00

8

23026010
ref: 8
ORIGINALLY INSTALLED

LENS,TAIL LAMP

€ 64.50

9

220E0450
ref: 9
ORIGINALLY INSTALLED

SCREW-PAN HEAD,4X50

€ 3.00

10

35016004
ref: 10
ORIGINALLY INSTALLED

DAMPER RUBBER

€ 1.50

11

35031005
ref: 11
ORIGINALLY INSTALLED

STAY-TAIL LAMP

€ 7.00

12

35024002
ref: 12
ORIGINALLY INSTALLED

CLAMP,WIRING HARNESS

€ 2.00

13

92022125
ref: 13
ORIGINALLY INSTALLED

WASHER,6.5X20X1.6

€ 1.00

14

461F0600
ref: 14
ORIGINALLY INSTALLED

WASHER-SPRING,6MM

€ 0.50

15

312B0600
ref: 15
ORIGINALLY INSTALLED

NUT,6MM

€ 0.50

16

110N0632
ref: 16
ORIGINALLY INSTALLED

BOLT,6X32

€ 2.50

17

112G0640
ref: 17
ORIGINALLY INSTALLED

BOLT-UPSET,6X40

€ 2.50

1

2302401921
ref: 1
SERVICE PARTS ONLY

LAMP ASSY-TAIL,BLACK

€ 99.00

2

220R0455
ref: 2
SERVICE PARTS ONLY

SCREW-PAN-CROS

€ 3.50

2

220R0455
ref: 2
SERVICE PARTS ONLY

SCREW-PAN-CROS

€ 3.50

3

23026022
ref: 3
SERVICE PARTS ONLY

LENS,TAIL LAMP

€ 47.50

4

92069023
ref: 4
SERVICE PARTS ONLY

BULB 6V 3/21CP

€ 4.00

5

23028016
ref: 5
SERVICE PARTS ONLY

GASKET-TAIL LAMP LENS (NAS)

€ 7.00

6

23027029
ref: 6
SERVICE PARTS ONLY

CASE-TAIL LAMP

€ 24.50

7

23028015
ref: 7
SERVICE PARTS ONLY

GASKET-TAIL LAMP CASE (NAS)

€ 6.50

8

2303601421
ref: 8
SERVICE PARTS ONLY

BKT-LICENSE PLT,BLACK

€ 25.50

9

92001111
ref: 9
SERVICE PARTS ONLY

BOLT

€ 6.50

10

920221561
ref: 10
SERVICE PARTS ONLY

WASHER,8.5X20X1.6

€ 2.50

11

92075091
ref: 11
SERVICE PARTS ONLY

DAMPER RUBBER

€ 1.50

12

26011014
ref: 12
SERVICE PARTS ONLY

WIRE-IGNITION LEAD

€ 1.00

13

28013002
ref: 13
SERVICE PARTS ONLY

BRACKET-REFLECTOR

€ 8.50

14

28012008
ref: 14
SERVICE PARTS ONLY

REFLECTOR-REFLEX,REAR

€ 8.50

15

411B0500
ref: 15
SERVICE PARTS ONLY

WASHER-PLAIN,5MM

€ 0.50

16

461F0500
ref: 16
SERVICE PARTS ONLY

WASHER-SPRING,5MM

€ 0.50

17

322N0500
ref: 17
SERVICE PARTS ONLY

NUT-CAP,5MM

€ 2.00

18

35039005
ref: 18
SERVICE PARTS ONLY

DAMPER,TAIL LAMP

€ 6.50
