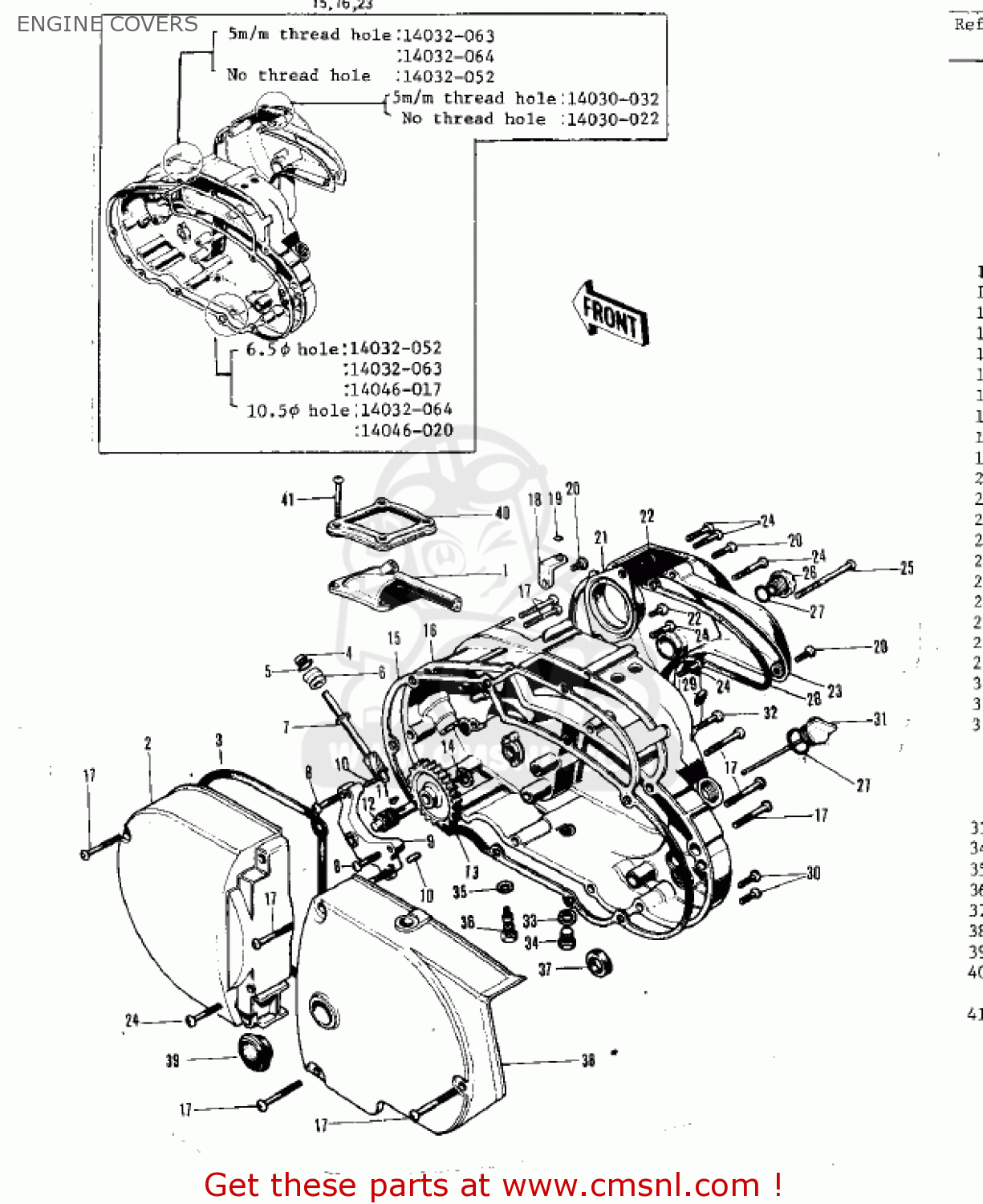

ENGINE COVERS

ref

part #

description

quantity

1

14038034
ref: 1

CAP,CARBURETOR

€ 12.50

2

1403103880
ref: 2

ENGINE COVER,LH,BUFF

€ 212.00

3

14045008
ref: 3

GASKET-L.H ENG COVER (MCA)

€ 7.00

4

92054004
ref: 4

OIL SEAL

€ 14.50

5

92055025
ref: 5

'O' RING

€ 3.00

6

92028075
ref: 6

BUSH

€ 14.50

7

13223004
ref: 7

GEAR-TACHOMETER

€ 20.50

8

220B0625
ref: 8

SCREW-PAN HEAD,6X25

€ 1.50

9

14018004
ref: 9

HOLDER-TACHOMETER GR

€ 12.50

10

610A0512
ref: 10

ROLLER,5X12

€ 3.00

11

510A3100
ref: 11

KEY-WOODRUFF

€ 1.50

12

13224006
ref: 12

PINION-TACHOMETER

€ 34.00

13

16085014
ref: 13
33T

GEAR-OIL PUMP

€ 12.50

14

92026025
ref: 14

WASHER-THRUST

€ 7.00

15

14046020
ref: 15

GASKET-R.H ENG COVER (MCA)

€ 8.00

16

14032064
ref: 16

COVER-R.H ENGINE

€ 142.50

17

220B0655
ref: 17

SCREW-PAN HEAD,6X55

€ 2.50

18

14044005
ref: 18

HOLDER-OIL PUMP CABLE

€ 3.00

19

92036017
ref: 19

CIRCLIP

€ 2.00

20

220B0620
ref: 20

SCREW-PAN HEAD,6X20

€ 2.50

21

16065005
ref: 21

HOLDER-CARBURETOR

€ 18.00

22

220B0612
ref: 22

SCREW-PAN HEAD,6X12

€ 1.00

23

14030032
ref: 23

COVER-CARBURETOR

€ 70.00

24

220B0635
ref: 24

SCREW-PAN HEAD,6X35

€ 1.00

25

220B0670
ref: 25

SCREW-PAN HEAD,6X70

€ 2.50

26

92067006
ref: 26

PLUG-CARBURETOR COVER

€ 12.00

27

670B2020
ref: 27

O RING,20MM

€ 1.00

28

14048002
ref: 28

GASKET-CARBURETOR COV (MCA)

€ 23.50

29

14064001
ref: 29

STOPPER-CARBURETOR

€ 1.00

30

220B0630
ref: 30

SCREW-PAN HEAD,6X30

€ 2.50

31

16115017
ref: 31

PLUG-OIL FILLER

€ 12.00

32

220B0635
ref: 32
USE FOR 14003-054

SCREW-PAN HEAD,6X35

€ 1.00

32

220B0655
ref: 32
USE FOR 14003-055 14

SCREW-PAN HEAD,6X55

€ 2.50

33

92065058
ref: 33

GASKET, 10,5X16X1 (NAS)

€ 2.50

34

92067001
ref: 34

PLUG-OIL DRAIN

€ 3.00

35

92065037
ref: 35

OIL PIPE BANJO GASKET

€ 8.00

36

92067007
ref: 36

FUEL DRAIN PLUG

€ 18.50

37

92049012
ref: 37

OIL SEAL SB20285

€ 8.50

38

14026005E8
ref: 38

CHAIN CASE COVER

€ 175.50

39

14040003
ref: 39

CAP-CLUTCH HOLE

€ 2.50

40

14065001
ref: 40
USE FOR 14030-032, 1

HOLDER-CARBURETOR CAP

€ 6.50

41

220B0512
ref: 41
USE FOR 14030-032, 1

SCREW-PAN-CROS

€ 0.50

all assemblies
