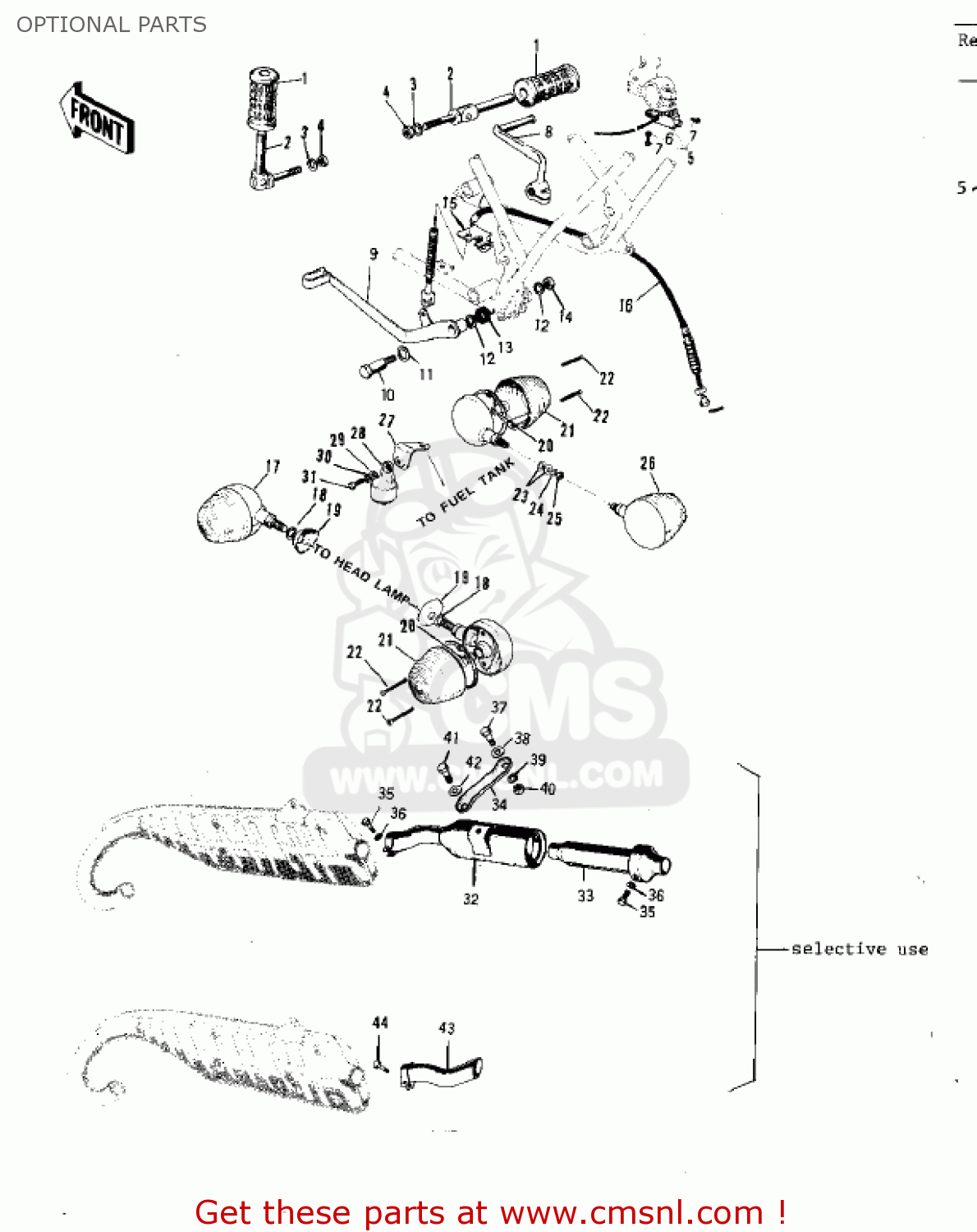

OPTIONAL PARTS

ref

part #

description

quantity

1

92076008
ref: 1

RUBBER-REAR FOOTREST

€ 5.50

2

34027013
ref: 2

BAR-REAR FOOTREST

€ 7.00

3

461F1000
ref: 3

WASHER-SPRING,10MM

€ 0.50

4

314B1000
ref: 4

NUT,10MM

€ 0.50

?

46027006
ref: ?
Includes items 5 - 7

SWITCH ASSY-ENG STOP

€ 6.50

6

461F0300
ref: 6

WASHER-SPRING,3MM

€ 0.50

7

220B0306
ref: 7

SCREW-PAN-CROS

€ 0.50

8

13156037
ref: 8

PEDAL-GEAR CHANGE

€ 25.50

9

43001034
ref: 9

BRAKE PEDAL

€ 69.50

10

92001092
ref: 10

BOLT-BRAKE PEDAL

€ 8.50

11

92022085
ref: 11

WASHER,15.3X24X1.2

€ 2.50

12

411B1000
ref: 12

WASHER-PLAIN,10MM

€ 0.50

13

43005014
ref: 13

BRAKE PEDAL SPRING

€ 12.00

14

315B1000
ref: 14

NUT,10MM

€ 0.50

15

32067012
ref: 15

BRACKET-CABLE

€ 2.00

16

54022019
ref: 16

REAR BRAKE CABLE

€ 38.00

17

23040032
ref: 17

LAMP-FRNT TURN SIGNAL

€ 26.00

18

411B1000
ref: 18

WASHER-PLAIN,10MM

€ 0.50

19

92075058
ref: 19

DAMPER RUBBER

€ 1.50

20

92069042
ref: 20

BULB,6V 8W

€ 3.00

21

23048011
ref: 21

LENS-SIGNAL LAMP

€ 15.50

22

222B0315A
ref: 22

SCREW-OVL CNTSNK,3X15

€ 2.50

23

410B1000
ref: 23

WASHER-PLAIN-SMALL,10

€ 0.50

24

461F1000
ref: 24

WASHER-SPRING,10MM

€ 0.50

25

315B1000
ref: 25

NUT,10MM

€ 0.50

26

23043030
ref: 26

LAMP-REAR TURN SIGNA

€ 22.50

27

27023001
ref: 27

BRACKET-SIGNAL RELAY

€ 2.00

28

27002009
ref: 28
USE FOR 26001-054

RELAY-TURN SIGNAL

€ 23.50

29

410B0600
ref: 29

WASHER-PLAIN-SMALL,6M

€ 0.50

30

461F0600
ref: 30

WASHER-SPRING,6MM

€ 0.50

31

220B0616
ref: 31

SCREW-PAN HEAD,6X16

€ 2.50

32

18048013
ref: 32

TAIL PIECE

€ 21.00

33

18033044
ref: 33

SPARK ARRESTER COMP

€ 33.00

34

18024016
ref: 34

BRACKET-MUFFLER

€ 4.00

35

112G0610
ref: 35

BOLT,6X10

€ 0.50

36

464H0600
ref: 36

WASHER-LOCK,6MM

€ 0.50

37

110B1035
ref: 37

BOLT,HEX HEAD,10X35

€ 2.00

38

410B1000
ref: 38

WASHER-PLAIN-SMALL,10

€ 0.50

39

461F1000
ref: 39

WASHER-SPRING,10MM

€ 0.50

40

312B1000
ref: 40

NUT,10MM

€ 0.50

41

115B0814
ref: 41

BOLT SMALL UPSET 8X14

€ 1.00

42

461F0800
ref: 42

WASHER-SPRING,8MM

€ 0.50

43

18048016
ref: 43

TAIL PIECE

€ 9.00

44

220B0620
ref: 44

SCREW-PAN HEAD,6X20

€ 2.50

all assemblies
