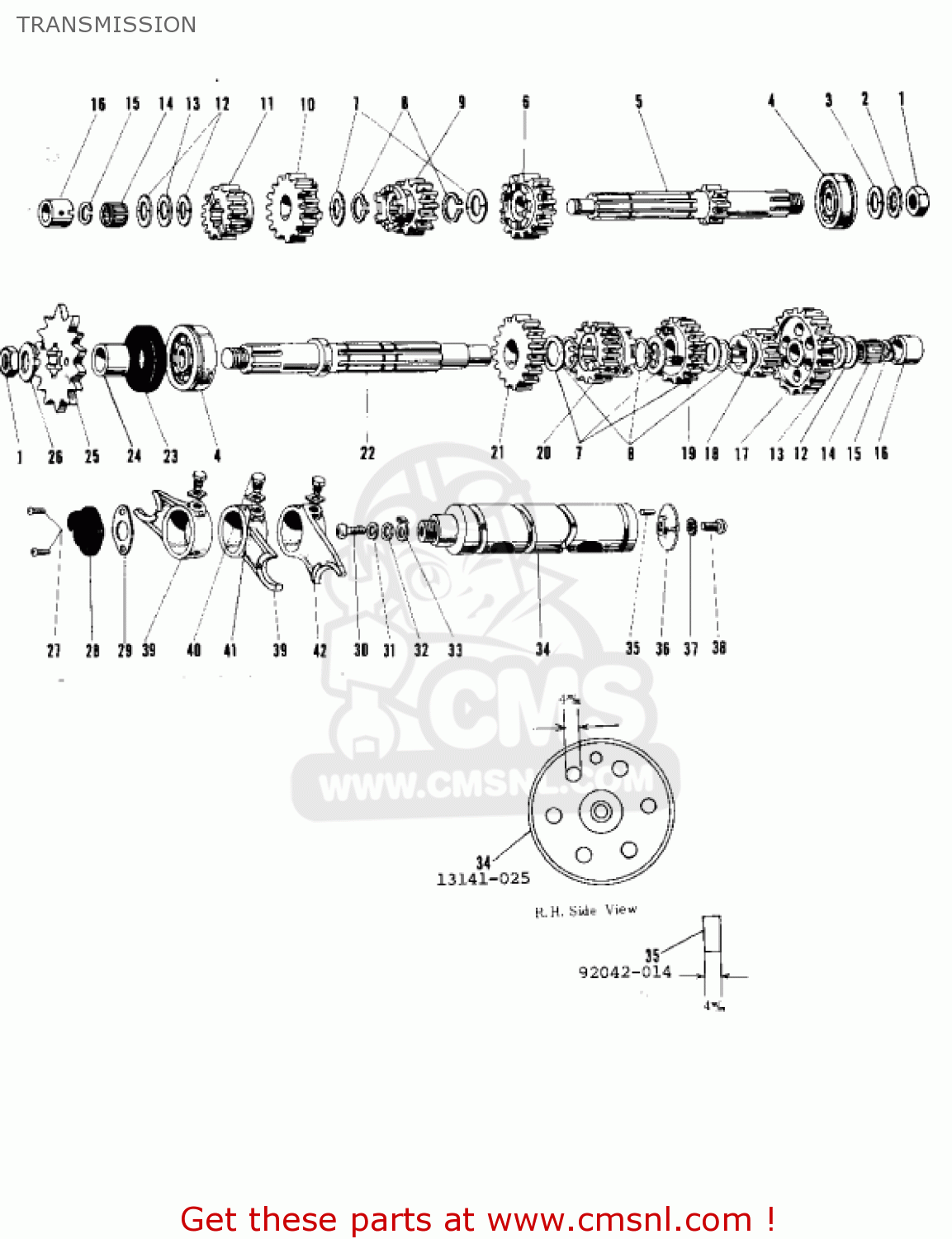

TRANSMISSION

ref

part #

description

quantity

1

92015019
ref: 1

NUT,18MM

€ 4.00

2

463G1800
ref: 2

WASHER-LOCK,18MM

€ 2.00

3

92022074
ref: 3

WASHER-PLAIN,18MM

€ 1.50

4

92045020
ref: 4

BEARING-BALL,#6305N

€ 29.00

5

13127012
ref: 5
14T

SHAFT-DRIVE

€ 92.00

6

13136017
ref: 6
27T

TOP GEAR-DRIVE SHAFT

€ 35.00

7

92022076
ref: 7

WASHER,25MM

€ 7.00

8

92033026
ref: 8

CIRCLIP

€ 6.00

9

13132009
ref: 9
23T

3RD GEAR-DRIVE SHAFT

€ 21.00

10

13134003
ref: 10
25T

4TH GEAR-DRIVE SHAFT

€ 62.00

11

13130008
ref: 11
19T

2ND GEAR-DRIVE SHAFT

€ 13.00

12

92022075
ref: 12

WASHER,17MM

€ 4.50

13

92026021
ref: 13

WASHER-THRUST

€ 9.00

14

92046005
ref: 14

BEARING,#KT172113

€ 13.00

15

92033009
ref: 15

CIRCLIP,17MM

€ 2.00

16

92028043
ref: 16

BUSH-TRANSMISSION

€ 18.00

17

13129014
ref: 17
35T

LOW GEAR-OUTPUT SHAFT

€ 20.50

18

13137007
ref: 18
21T

TOP GEAR-OUTPUT SHAFT

€ 36.00

19

13133007
ref: 19
26T

3RD GEAR-OUTPUT SHAFT

€ 17.50

20

13135003
ref: 20
23T

4TH GEAR-OUTPUT SHAFT

€ 40.50

21

13131010
ref: 21
29T

2ND GEAR-OUTPUT SHAFT

€ 33.00

22

13128013
ref: 22

SHAFT-OUTPUT

€ 75.00

23

92050016
ref: 23

OIL SEAL SC326210

€ 14.00

24

920261024
ref: 24

SPACER-ENG SPROCKET

€ 13.00

25

13144025
ref: 25
STD

ENGINE SPROCKET,15T

€ 23.00

25

13144017
ref: 25
A1, A1SS

SPROCKET-OUTPUT,14T

€ 35.50

25

13144018
ref: 25
(OPTION)

ENGINE SPROCKET,16T

€ 22.50

25

13144030
ref: 25
STD

SPROCKET-OUTPUT,15T

€ 29.50

25

13144035
ref: 25
A7, A7SS

ENGINE SPROCKET,14T

€ 29.50

25

13144036
ref: 25
(OPTION)

ENGINE SPROCKET,16T

€ 15.50

26

92024067
ref: 26

WASHER,LOCK

€ 2.00

27

220B0516
ref: 27

SCREW-PAN-CROS

€ 2.50

27

214B0516A
ref: 27
I.S.O. THREAD

UNAVAILABLE IN PRICE BOOK

€ 0.50

28

131511001
ref: 28

SWITCH-COMP,NEUTRAL

€ 9.50

29

13146002
ref: 29

GASKET,NEUTRAL SWITCH (NAS)

€ 2.50

30

92011003
ref: 30

SCREW PAN HEAD 6X16

€ 2.50

31

461F0600
ref: 31

WASHER-SPRING,6MM

€ 0.50

32

410B0600
ref: 32

WASHER-PLAIN-SMALL,6M

€ 0.50

33

210071003
ref: 33

ROTOR,TOP & NEUTRAL

€ 4.50

34

13141012
ref: 34
USE 13141-025

GEAR CHANGE DRUM

€ 67.50

34

13141025
ref: 34
USE W/92042-014

DRUM-GEAR CHANGE

€ 37.50

35

92043004
ref: 35

PIN-GEAR CHANGE DRUM

€ 2.00

35

92042014
ref: 35
USE W/13141-025

PIN-GEAR CHANGE DRUM

€ 0.50

36

13142004
ref: 36

PLATE-CHANGE DRUM PIN

€ 1.50

37

464H0600
ref: 37

WASHER-LOCK,6MM

€ 0.50

38

220B0612
ref: 38

SCREW-PAN HEAD,6X12

€ 1.00

39

13140013
ref: 39

FORK-SELECTOR,TOP

€ 56.00

40

92043016
ref: 40

PIN,SELECT FORK GUIDE

€ 12.50

41

92031001
ref: 41

WASHER,LOCK,10MM

€ 7.00

42

13140014
ref: 42

FORK-SELECTOR,LOW

€ 40.50

?

13140004
ref: ?

SELECTOR FORK LOW

€ 0.00
