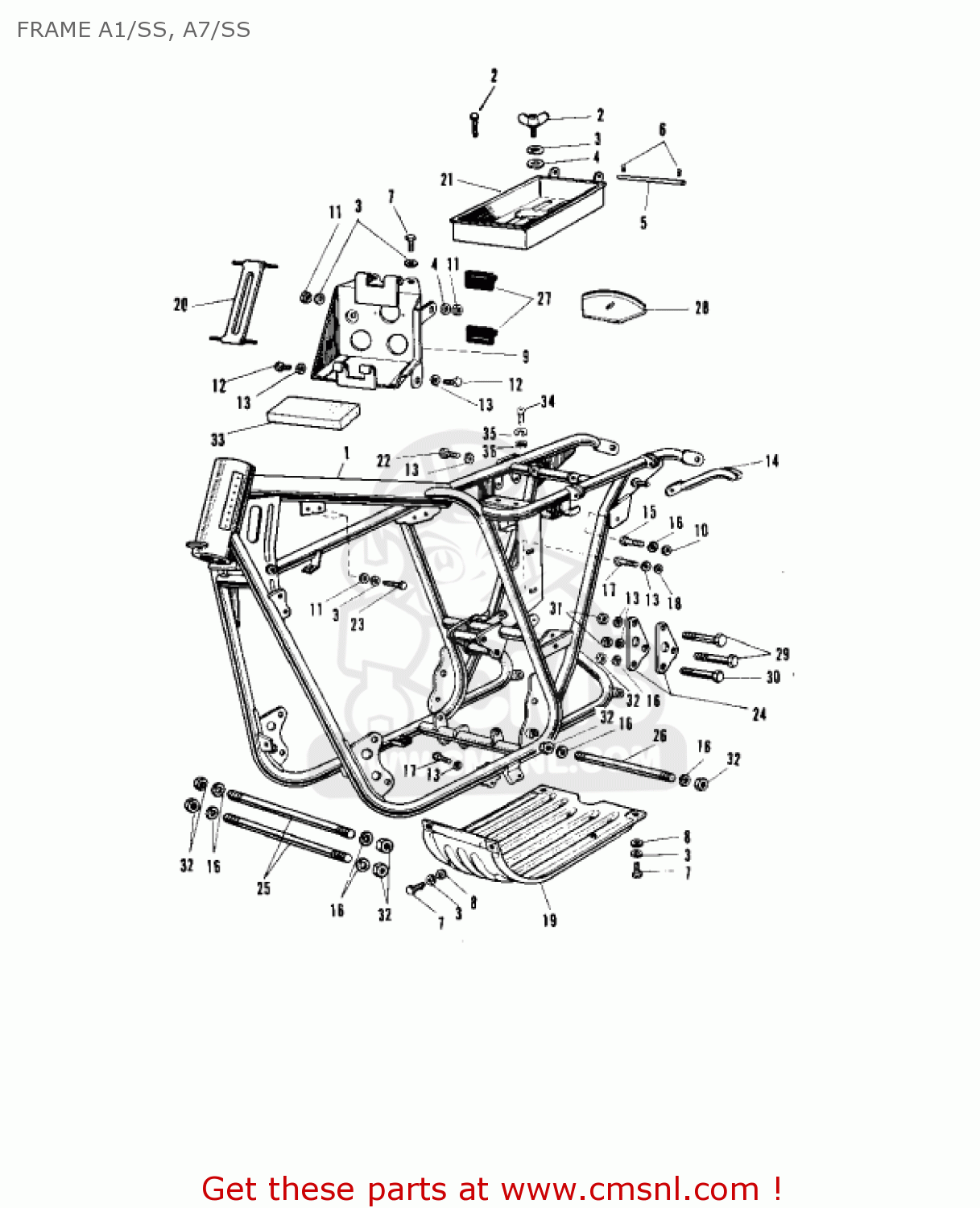

FRAME A1/SS, A7/SS

ref

part #

description

quantity

1

32002028
ref: 1

FRAME

€ 409.00

2

220B0612
ref: 2

SCREW-PAN HEAD,6X12

€ 1.00

3

461F0600
ref: 3

WASHER-SPRING,6MM

€ 0.50

3

461F0600
ref: 3

WASHER-SPRING,6MM

€ 0.50

4

411B0600
ref: 4

WASHER-PLAIN,6MM

€ 0.50

5

92043020
ref: 5

PIN-OIL TANK FITTING

€ 10.00

6

550D1610
ref: 6

PIN-COTTER,1.6X10

€ 2.00

7

112G0612
ref: 7

BOLT-UPSET

€ 2.50

7

112G0612
ref: 7

BOLT-UPSET

€ 2.50

8

411B0600
ref: 8

WASHER-PLAIN,6MM

€ 0.50

9

32097004
ref: 9

BOX-BATTERY

€ 16.00

10

410B1000
ref: 10

WASHER-PLAIN-SMALL,10

€ 0.50

11

311B0600
ref: 11

NUT,6MM

€ 0.50

12

116B0816
ref: 12

BOLT-HEX HEAD,8X16

€ 0.50

13

461F0800
ref: 13

WASHER-SPRING,8MM

€ 0.50

14

32109004
ref: 14

GRIP-FRAME

€ 16.00

15

113G1025
ref: 15

BOLT-SMALL-FINE,10X25

€ 2.50

16

461F1000
ref: 16

WASHER-SPRING,10MM

€ 0.50

16

461F1000
ref: 16

WASHER-SPRING,10MM

€ 0.50

17

115G0818
ref: 17

BOLT SMALL-UPSET

€ 2.50

18

411B0800
ref: 18

WASHER-PLAIN,8MM

€ 0.50

19

55011005
ref: 19

ENGINE GUARD

€ 59.50

20

92072015
ref: 20

BAND-BATTERY

€ 3.00

21

32098002
ref: 21

BOX-TOOL

€ 9.00

22

115G0816
ref: 22

BOLT-HEX,HEAD 8X16

€ 0.50

23

112G0635
ref: 23

BOLT-UPSET,6X35

€ 2.50

24

32030006
ref: 24

PLATE-ENG REAR HOLDER

€ 2.50

25

92003181
ref: 25

BOLT,10X225

€ 8.50

26

92091003
ref: 26

BOLT-ENG LOWER MOUNT

€ 1.50

27

32103003
ref: 27

DAMPER,RECTIFIER RUBB

€ 3.50

28

32104002
ref: 28

COVER-AIR CLEANER

€ 3.50

29

920011583
ref: 29

BOLT,FLANGED,8X70

€ 6.00

30

920011618
ref: 30
USE 113B1070

BOLT,FLANGED,10X70

€ 7.00

30

920011618
ref: 30

BOLT,FLANGED,10X70

€ 7.00

31

311B0800
ref: 31

NUT,8MM

€ 0.50

32

314B1000
ref: 32

NUT,10MM

€ 0.50

33

32103006
ref: 33

MAT-BATTERY

€ 3.00

34

220B0610
ref: 34

SCREW-PAN HEAD,6X10

€ 2.00

35

461F0600
ref: 35

WASHER-SPRING,6MM

€ 0.50

36

410B0600
ref: 36

WASHER-PLAIN-SMALL,6M

€ 0.50

all assemblies
