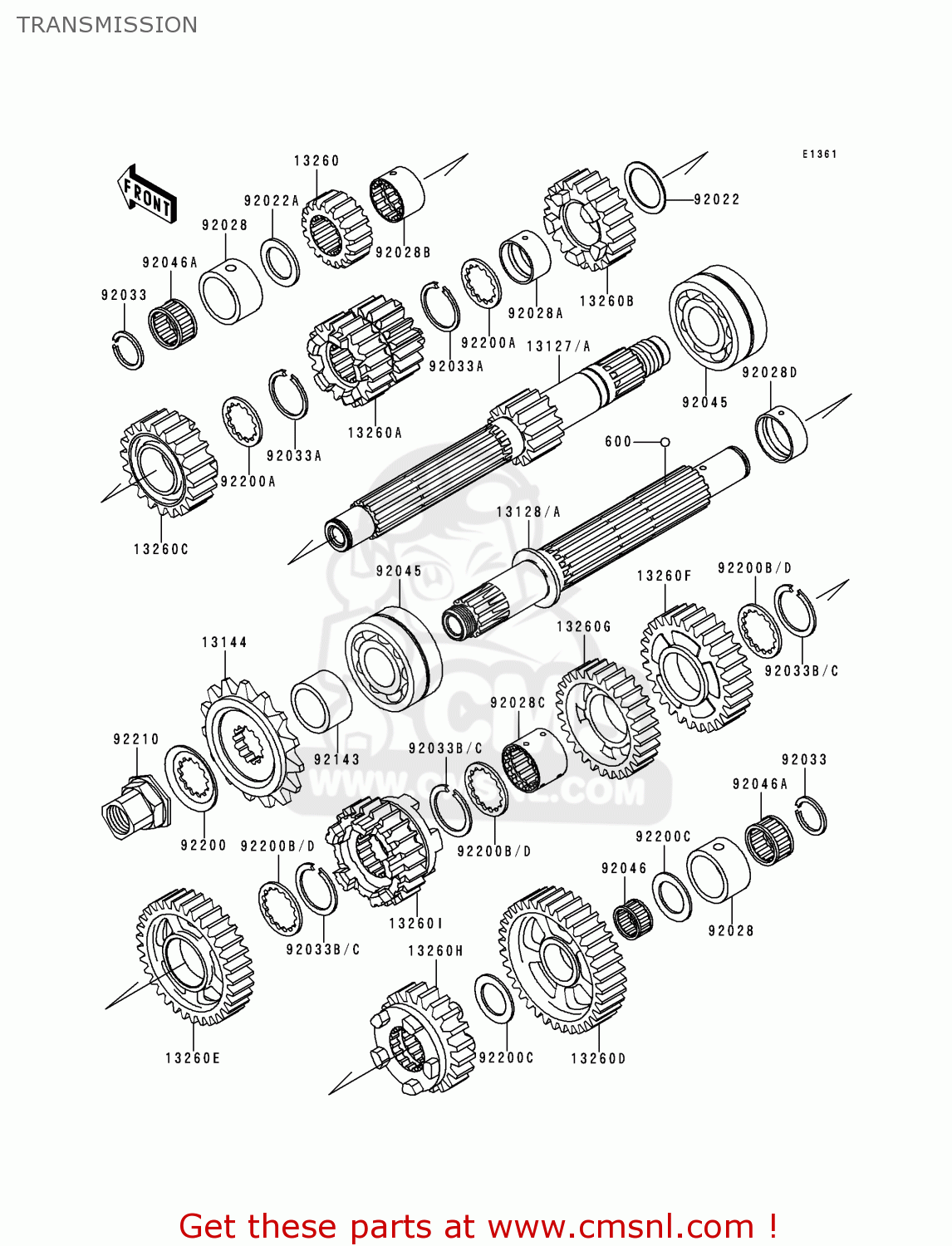

TRANSMISSION

ref

part #

description

quantity

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271262
ref: 13127

SHAFT-TRANSMISSION IN

€ 189.00

13128

131281230
ref: 13128

SHAFT-TRANSMISSION OU

€ 215.00

13144

131441275
ref: 13144

SPROCKET-OUTPUT,16T

€ 31.50

13260

132601681
ref: 13260

GEAR,INPUT 2ND,17T

€ 110.00

13260A

132601682
ref: 13260A

GEAR,INPUT 3RD&4TH,18

€ 160.00

13260B

132601683
ref: 13260B

GEAR,INPUT 5TH,20T

€ 148.00

13260C

132601684
ref: 13260C

GEAR,INPUT TOP,21T

€ 88.00

13260D

132601685
ref: 13260D

GEAR,OUTPUT LOW,36T

€ 150.50

13260E

132601686
ref: 13260E

GEAR,OUTPUT 2ND,33T

€ 145.50

13260F

132601687
ref: 13260F

GEAR,OUTPUT 3RD,28T

€ 132.50

13260G

132601688
ref: 13260G

GEAR,OUTPUT 4TH,28T

€ 129.00

13260H

132601689
ref: 13260H

GEAR,OUTPUT 5TH,24T

€ 157.00

13260I

132601690
ref: 13260I

GEAR,OUTPUT TOP,23T

€ 132.50

92022

920221109
ref: 92022

WASHER,25.3X33X1

€ 4.00

92022A

92022112
ref: 92022A

WASHER,20.5X30X1,STEE

€ 6.00

92028

920281151
ref: 92028

BUSHING,27X34X18.6

€ 19.00

92028A

920281735
ref: 92028A

BUSHING,INPUT 5TH GEA

€ 17.00

92028B

920281736
ref: 92028B

BUSHING,INPUT TOP GEA

€ 26.50

92028C

920281738
ref: 92028C

BUSHING,OUTPUT,3RD&4T

€ 26.50

92028D

920281739
ref: 92028D

BUSHING,OUTPUT,2ND

€ 17.00

92033

92033015
ref: 92033

CIRCLIP

€ 2.50

92033A

92033026
ref: 92033A

CIRCLIP

€ 6.00

92033B

920331037
ref: 92033B

SNAP RING,25.9X1.2T

€ 3.00

92045

920451357
ref: 92045

BEARING-BALL,DAC2557N

€ 118.00

92046

920461219
ref: 92046

BEARING-NEEDLE,K20X24

€ 13.00

92046A

920461246
ref: 92046A

BEARING-NEEDLE

€ 22.00

92143

921431968
ref: 92143

COLLAR,SPROCKET

€ 15.00

92200

922001065
ref: 92200

WASHER

€ 4.50

92200A

922001239
ref: 92200A

WASHER,INPUT TOP&5TH

€ 5.00

92200B

922001240
ref: 92200B

WASHER,2ND,3RD,4TH

€ 7.00

92200C

922001375
ref: 92200C

WASHER,20.5X31X1.5

€ 3.00

92210

922101098
ref: 92210

NUT,SPROCKET

€ 24.50

all assemblies
