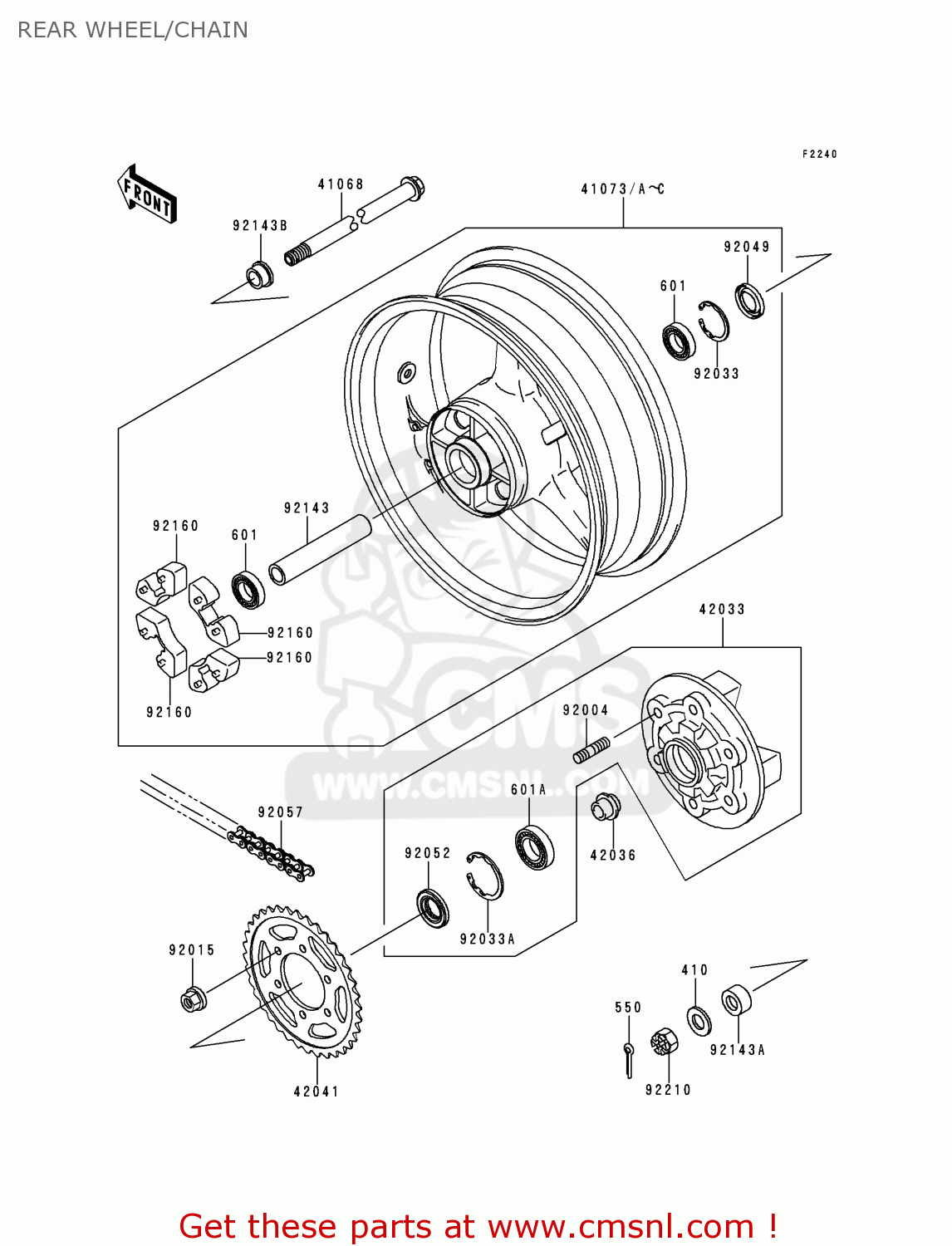

REAR WHEEL/CHAIN

ref

part #

description

quantity

410

410D1800
ref: 410

W-PLAIN-S,18MM

€ 1.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6204UU
ref: 601

BEARING-BALL,6204UUC3

€ 28.00

601A

601B6205G
ref: 601A

BEARING BALL

€ 14.00

41068

410681403
ref: 41068

AXLE,RR

€ 60.50

41073A

410731626DH
ref: 41073A

WHEEL-ASSY,RR,C.GRAY

€ 740.00

41073B

410731626E7
ref: 41073B
CN

WHEEL-ASSY,RR,L.BLUE

€ 740.00

42033

420331146
ref: 42033

COUPLING-ASSY,RR HUB

€ 204.00

42036

420361251
ref: 42036

SLEEVE,RR HUB,L=23

€ 18.00

42041

420411499
ref: 42041

SPROCKET-HUB,41T

€ 41.50

92004

920041151
ref: 92004

STUD,10X19.5

€ 6.50

92015

920151720
ref: 92015

NUT,10MM

€ 3.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920571455
ref: 92057

CHAIN,DRIVE,EK50UVXLX

€ 128.00

92143

921431976
ref: 92143

COLLAR,RR HUB,L=157

€ 20.50

92143A

921431977
ref: 92143A

COLLAR,RR AXLE,LH,L=1

€ 24.00

92143B

921431978
ref: 92143B

COLLAR,RR AXLE,RH,L=1

€ 15.00

92160

921601485
ref: 92160

DAMPER,SHOCK,RR HUB

€ 16.00

92210

922101134
ref: 92210

NUT

€ 4.50

all assemblies
