CRANKCASE

ZX900C1 NINJA ZX9R 1998 USA CALIFORNIA CANADA

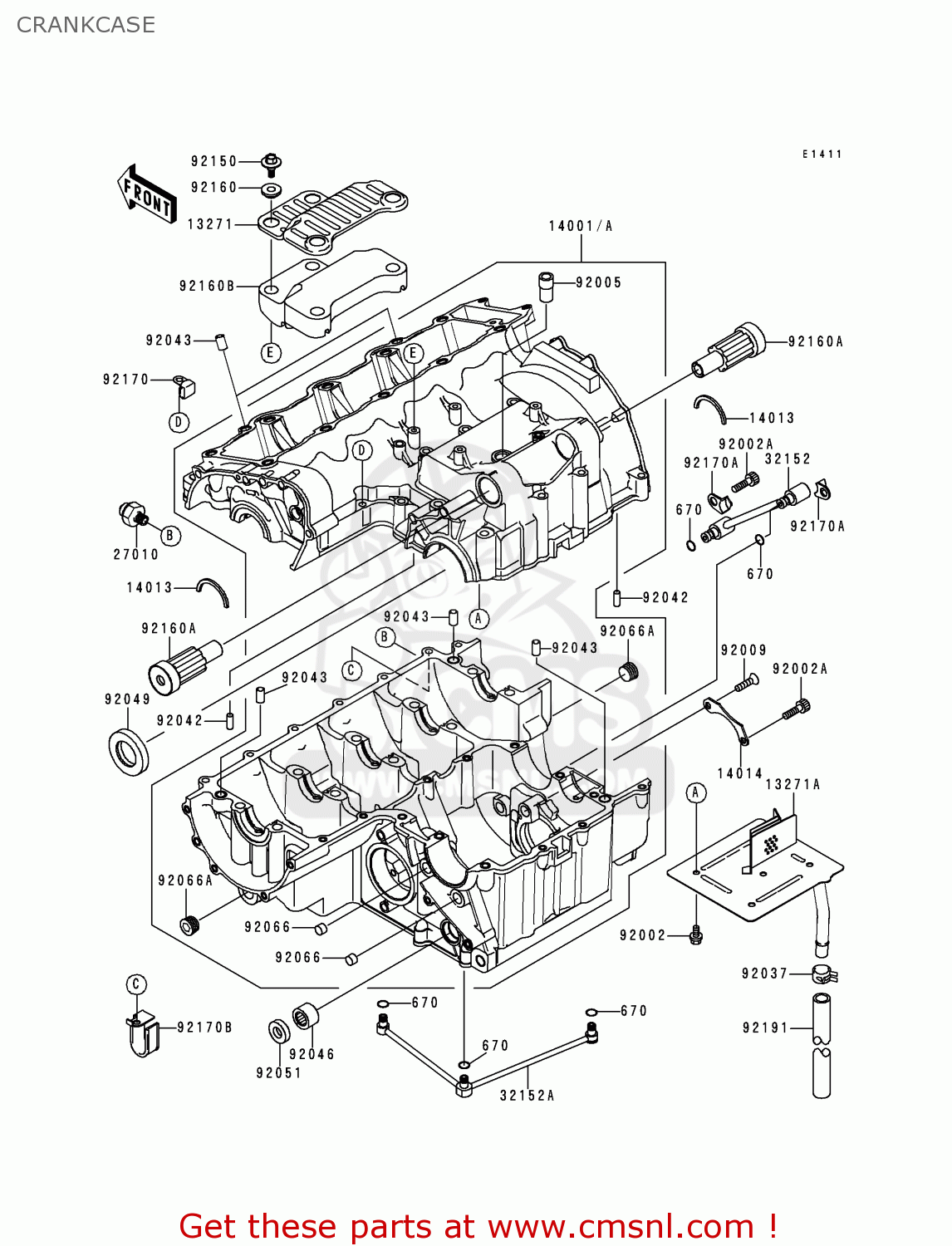

Crankcase diagram ZX900C1 NINJA ZX9R 1998 USA CALIFORNIA CANADA

CRANKCASE ZX900C1 NINJA ZX9R 1998 USA CALIFORNIA CANADA
CRANKCASE ZX900C1 NINJA ZX9R 1998 USA CALIFORNIA CANADA
CRANKCASE ZX900C1 NINJA ZX9R 1998 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
670
670D1505
ref: 670
O RING
670D1505
€ 2.50
13271
132711058
ref: 13271
PLATE
€ 24.00
13271A
132711085
ref: 13271A
PLATE,BREATHER
€ 47.50
14001
140011247
ref: 14001
SET-CRANKCASE
€ 2,307.00
14013
140131051
ref: 14013
RING-POSITION
140131051
€ 1.50
14014
140141140
ref: 14014
PLATE-POSITION
€ 5.50
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
270101313
€ 28.00
32152
321521545
ref: 32152
PIPE,RH,L=76.8
€ 21.00
32152A
321521546
ref: 32152A
PIPE,L=137.2
€ 34.00
92002
920021449
ref: 92002
BOLT,6X10
920021449
€ 2.50
92002A
920021778
ref: 92002A
BOLT,SOCKET,6X16
920021778
€ 3.00
92005
920051238
ref: 92005
FITTING,BREATHER
920051238
€ 7.50
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92037
920371181
ref: 92037
CLAMP
920371181
€ 1.00
92042
92042016
ref: 92042
PIN,DOWEL,6X16
92042016
€ 3.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
920461148
€ 19.50
92049
920491474
ref: 92049
SEAL-OIL,TC32578
920491474
€ 12.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92066
920661110
ref: 92066
PLUG
920661110
€ 4.00
92066A
920661262
ref: 92066A
PLUG
920661262
€ 2.50
92150
921501981
ref: 92150
BOLT
921501981
€ 2.50
92160
921601681
ref: 92160
DAMPER
921601681
€ 2.50
92160A
921601868
ref: 92160A
DAMPER
€ 17.00
92160B
921601925
ref: 92160B
DAMPER
€ 34.50
92170
921701577
ref: 92170
CLAMP
921701577
€ 3.00
92170A
921701578
ref: 92170A
CLAMP
921701578
€ 2.50
92170B
921701911
ref: 92170B
CLAMP
€ 7.00
92191
921911167
ref: 92191
TUBE,BREATHER
€ 14.00
