GEAR CHANGE MECHANISM

ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST

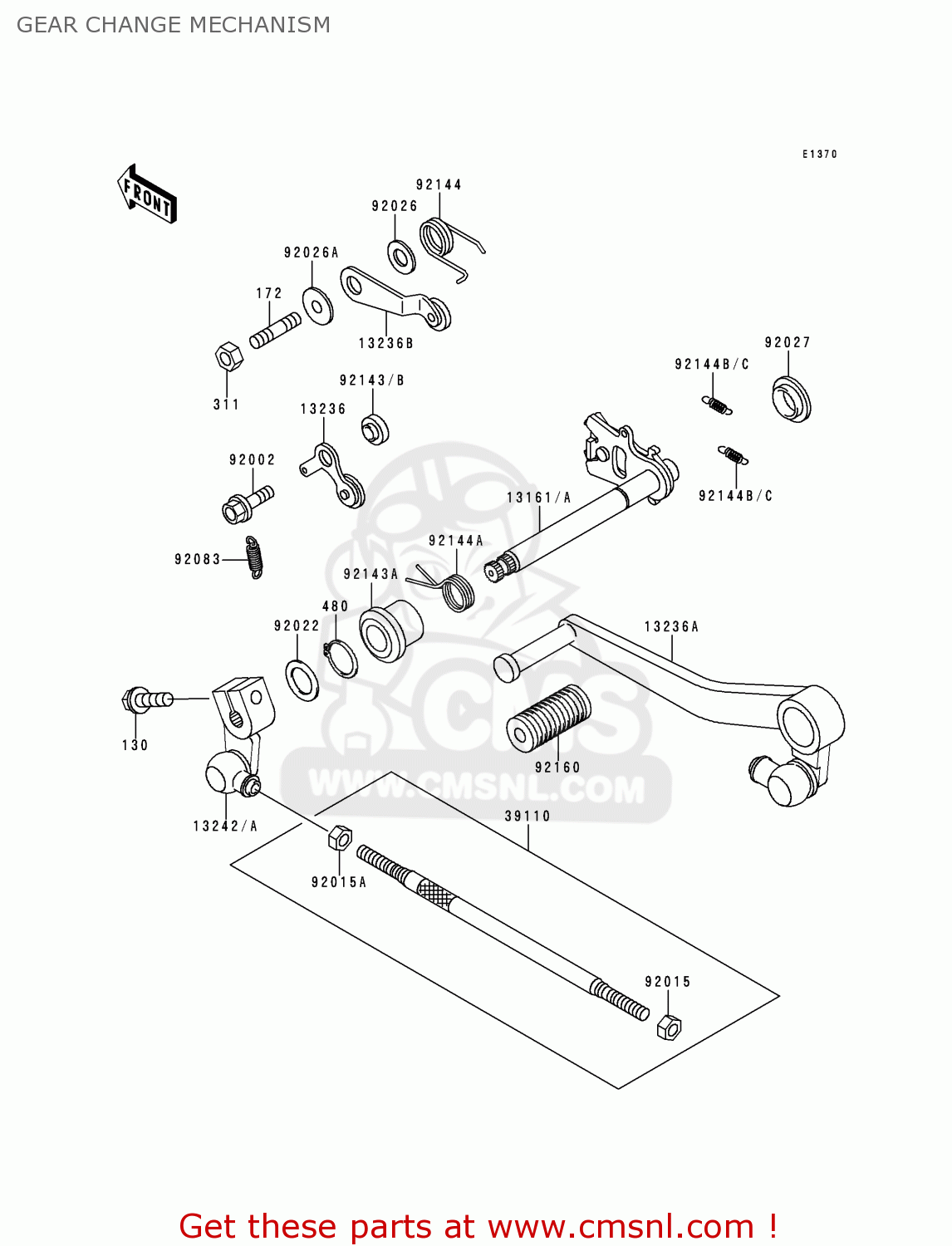

Gear change mechanism diagram ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611193
ref: 13161

LEVER-COMP-CHANGE SHA

€ 42.00

13236

132361189
ref: 13236

LEVER-COMP,POSITION

€ 7.50

13236A

132361254
ref: 13236A

LEVER-COMP,CHANGE PED

€ 76.50

13242A

132421326
ref: 13242A

LEVER-ASSY-CHANGE

€ 25.50

39110

391101105
ref: 39110

ROD-ASSY-TIE

€ 18.50

92002

920021571
ref: 92002

BOLT,6X16

€ 4.00

92015

920151443
ref: 92015

NUT

€ 2.50

92015A

920151444
ref: 92015A

NUT

€ 3.00

92022

920221496
ref: 92022

WASHER,13.3X20X1

€ 2.50

92027

920271512
ref: 92027

COLLAR,CHANGE SHAFT,L

€ 8.00

92083

92083012
ref: 92083

SPRING,CHNG DRUM LEV

€ 3.00

92143

921431055
ref: 92143

COLLAR

€ 4.50

92143A

921431498
ref: 92143A

COLLAR,RETURN SPRING

€ 7.00

92144A

921441628
ref: 92144A

SPRING,CHANGE SHAFT R

€ 6.50

92144C

921441975
ref: 92144C

SPRING,CHANGE LEVER

€ 3.00

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
