CHASSIS ELECTRICAL EQUIPMENT

ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST

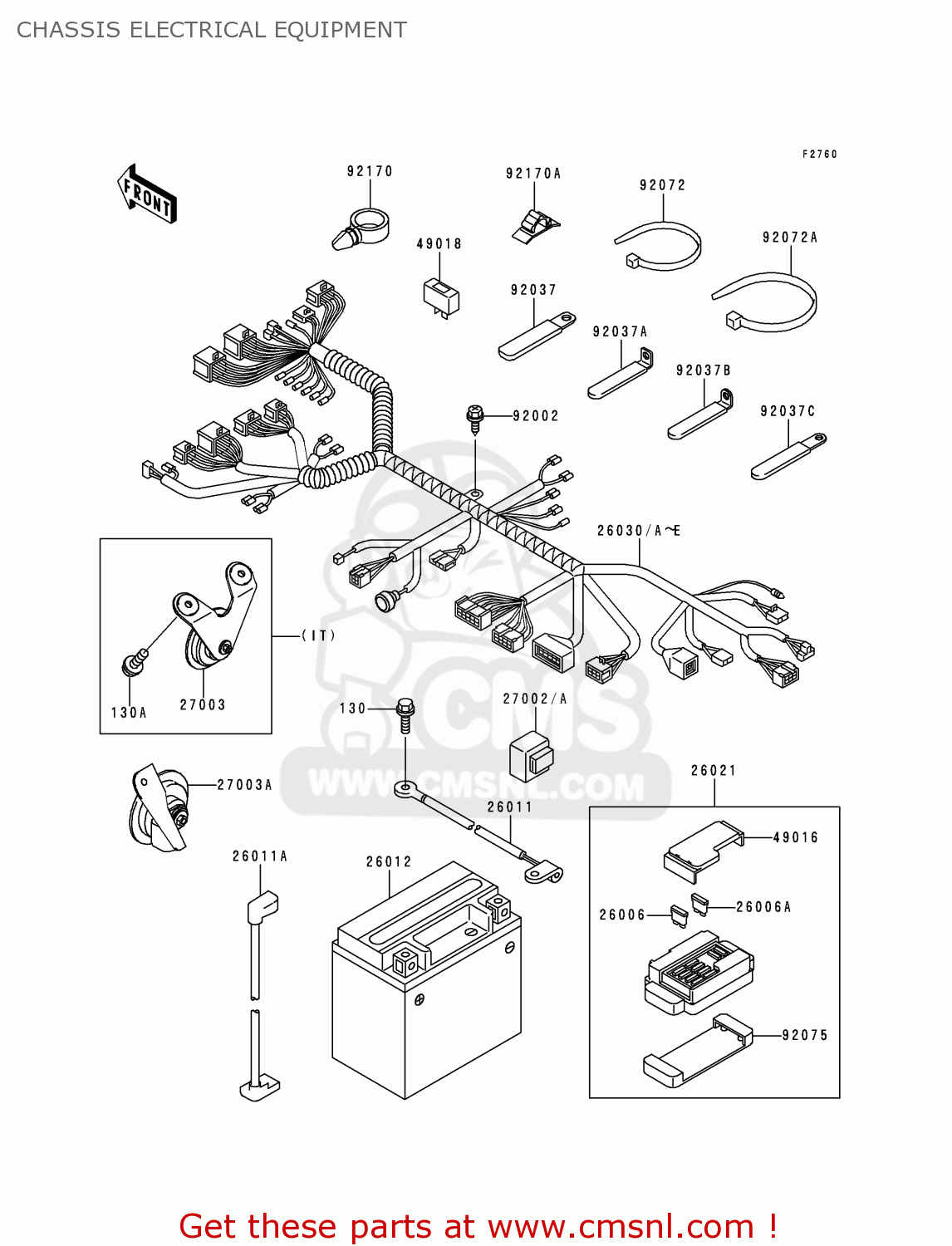

Chassis electrical equipment diagram ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST

CHASSIS ELECTRICAL EQUIPMENT ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130G0610
ref: 130
BOLT-FLANGED,6X10
130G0610
€ 0.50
130A
130J0616
ref: 130A
IT
BOLT-FLANGED,6X16
130J0616
€ 1.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111429
ref: 26011
WIRE-LEAD,BATTERY(-)
260111429
€ 16.50
26011A
260111584
ref: 26011A
WIRE-LEAD,BATTERY(+)
260111584
€ 27.00
26012
260121281
ref: 26012
BATTERY,YTX12-BS,12V
€ 120.50
26021
260211090
ref: 26021
JUNCTION BOX
260211090
€ 140.50
26030C
260301374
ref: 26030C
AREUFGFRGRNLNRSDSPST
HARNESS,MAIN
€ 295.00
26030D
260301376
ref: 26030D
IT
HARNESS,MAIN
€ 324.50
26030E
260301377
ref: 26030E
UK
HARNESS,MAIN
€ 286.50
27002
270021053
ref: 27002
AREUFRGRITNLNRSDSPST
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27002A
270021060
ref: 27002A
FG
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27003
270031345
ref: 27003
IT
HORN
€ 47.00
27003A
270031373
ref: 27003A
HORN
270031373
€ 42.00
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
49018
490181055
ref: 49018
AREUFGFRGRITNLNRSDSP
DIODE
490181055
€ 13.00
92002
920021472
ref: 92002
BOLT,TAPPING,5X16
€ 2.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371316
ref: 92037A
CLAMP
€ 1.50
92037B
920371679
ref: 92037B
CLAMP
920371679
€ 3.50
92037C
920371993
ref: 92037C
CLAMP
920371993
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92170
921701067
ref: 92170
CLAMP,HOSE
921701067
€ 5.00
92170A
921701494
ref: 92170A
CLAMP,HARNESS
€ 3.50
