CYLINDER/PISTON(S)

ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST

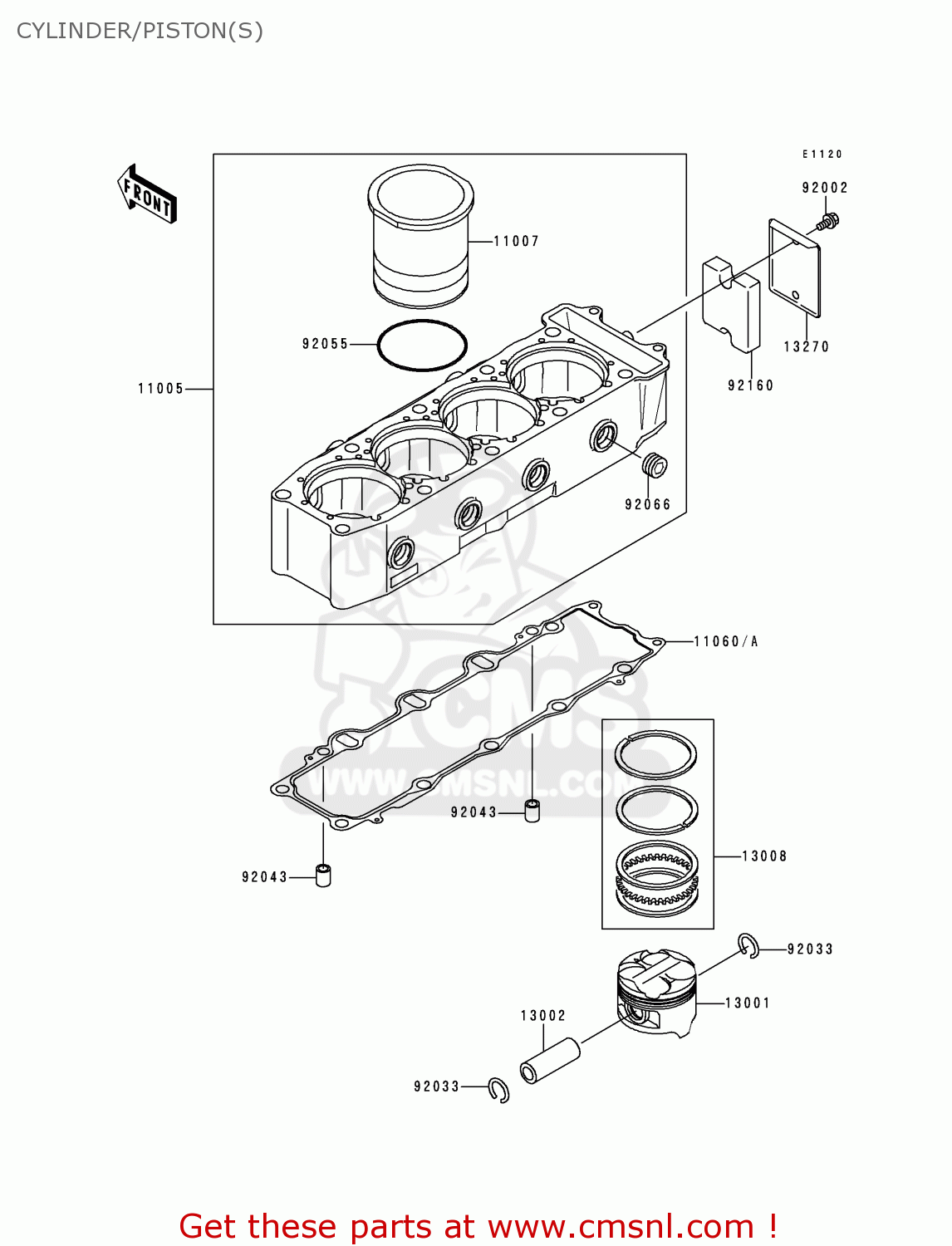

Cylinder/piston(s) diagram ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST

CYLINDER/PISTON(S) ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST
CYLINDER/PISTON(S) ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST
CYLINDER/PISTON(S) ZX900B3 NINJA ZX9R 1996 EU UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11005
110051778
ref: 11005
CYLINDER-ENGINE
110051778
€ 1,190.50
11007
110071136
ref: 11007
LINER-CYLINDER
110071136
€ 92.50
11060
110601093
ref: 11060
AREUFGGRITNLNRSDSPUK
GASKET,CYLINDER BASE (NAS)
110601093
€ 41.50
11060A
110601637
ref: 11060A
FRST
GASKET,CYLINDER BASE (NAS)
110601637
€ 25.50
13001
130011437
ref: 13001
PISTON-ENGINE,STD
130011437
€ 76.00
13002
130021086
ref: 13002
PIN-PISTON
130021086
€ 19.50
13008
130081158
ref: 13008
RING-SET-PISTON,STD
130081158
€ 63.00
13270
132701157
ref: 13270
PLATE
€ 6.50
92002
920021604
ref: 92002
BOLT
920021604
€ 3.00
92033
920331099
ref: 92033
RING-SNAP,18MM
920331099
€ 0.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92055
920551526
ref: 92055
RING-O,78.9X2.0
920551526
€ 3.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
920661253
€ 6.50
92160
921601488
ref: 92160
DAMPER
€ 15.50
