REAR MASTER CYLINDER

ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

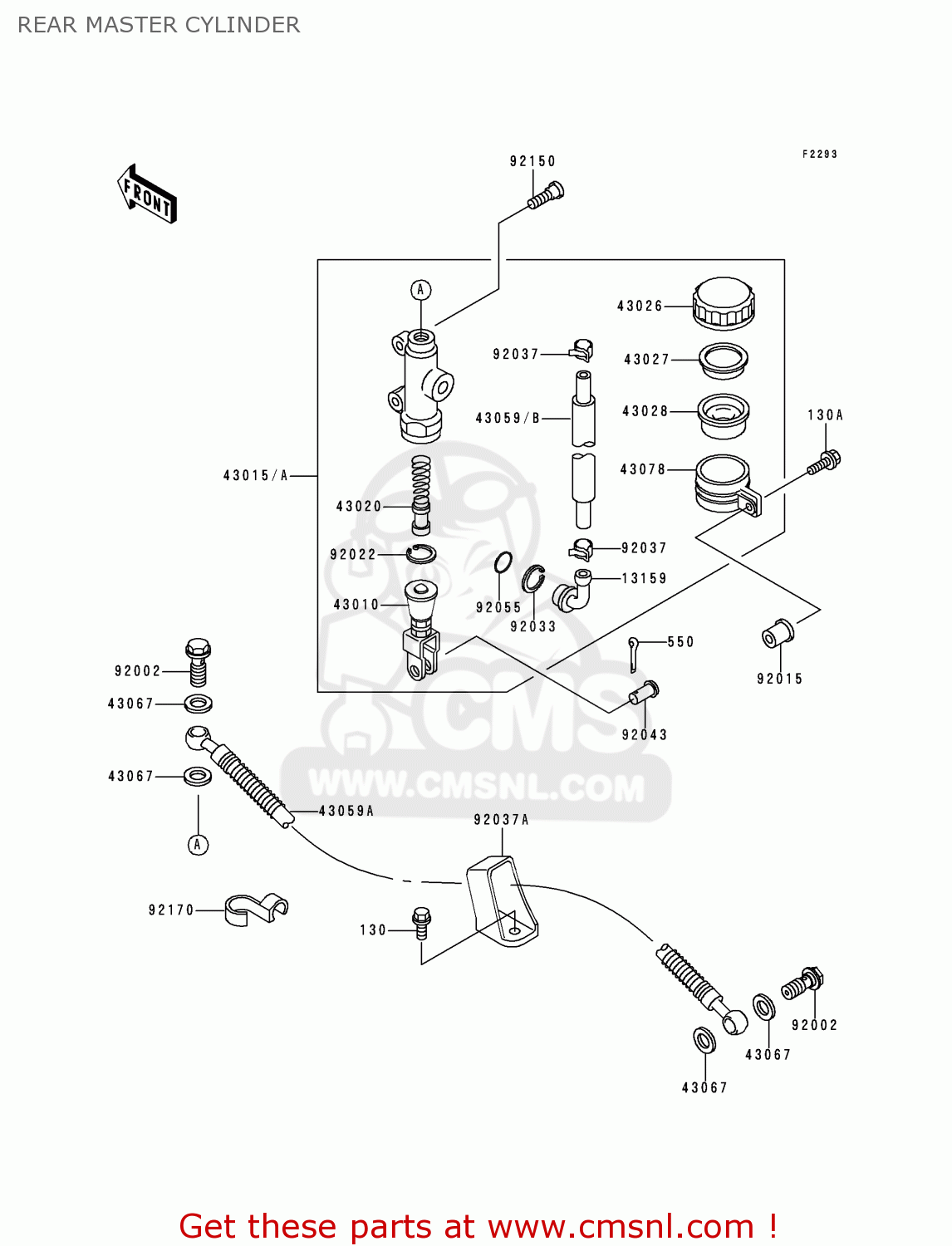

Rear master cylinder diagram ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

REAR MASTER CYLINDER ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

REAR MASTER CYLINDER ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

13159

131591052
ref: 13159

CONNECTOR RR MASTER C

€ 9.50

43010

430101062
ref: 43010

ROD-ASSY-BRAKE

€ 38.50

43015

430151554
ref: 43015

CYLINDER-ASSY-MASTER,

€ 280.50

43020

430201094
ref: 43020

PISTON-COMP, BRAKE

€ 47.50

43026

430261051
ref: 43026

CAP-BRAKE, RR

€ 25.00

43027

430271051
ref: 43027

PLATE-DIAPHRAGM

€ 4.00

43028

430281057
ref: 43028

DIAPHRAGM

€ 13.00

43059

430591551
ref: 43059

HOSE-BRAKE,RR MASTER

€ 22.50

43059A

430591774
ref: 43059A

HOSE-BRAKE,RR

€ 60.50

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

43078

430781082
ref: 43078

RESERVOIR, RR MASTER

€ 19.00

92002

920021888
ref: 92002

BOLT,OIL,L=23

€ 3.50

92015

920151700A
ref: 92015

NUT

€ 5.50

92022

920221601
ref: 92022

WASHER,CIRCRIP

€ 5.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92037

920371547
ref: 92037

CLAMP

€ 8.50

92037A

920371896
ref: 92037A

CLAMP,HOSE

€ 15.50

92043

920431303
ref: 92043

PIN,8MM

€ 2.50

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50

92150

921501843
ref: 92150

BOLT

€ 2.50

92170

921701097
ref: 92170

CLAMP,HOSE

€ 4.00
