Genuine ZX Kawasaki Parts delivered quickly!


CAMSHAFT(S)/TENSIONER

ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

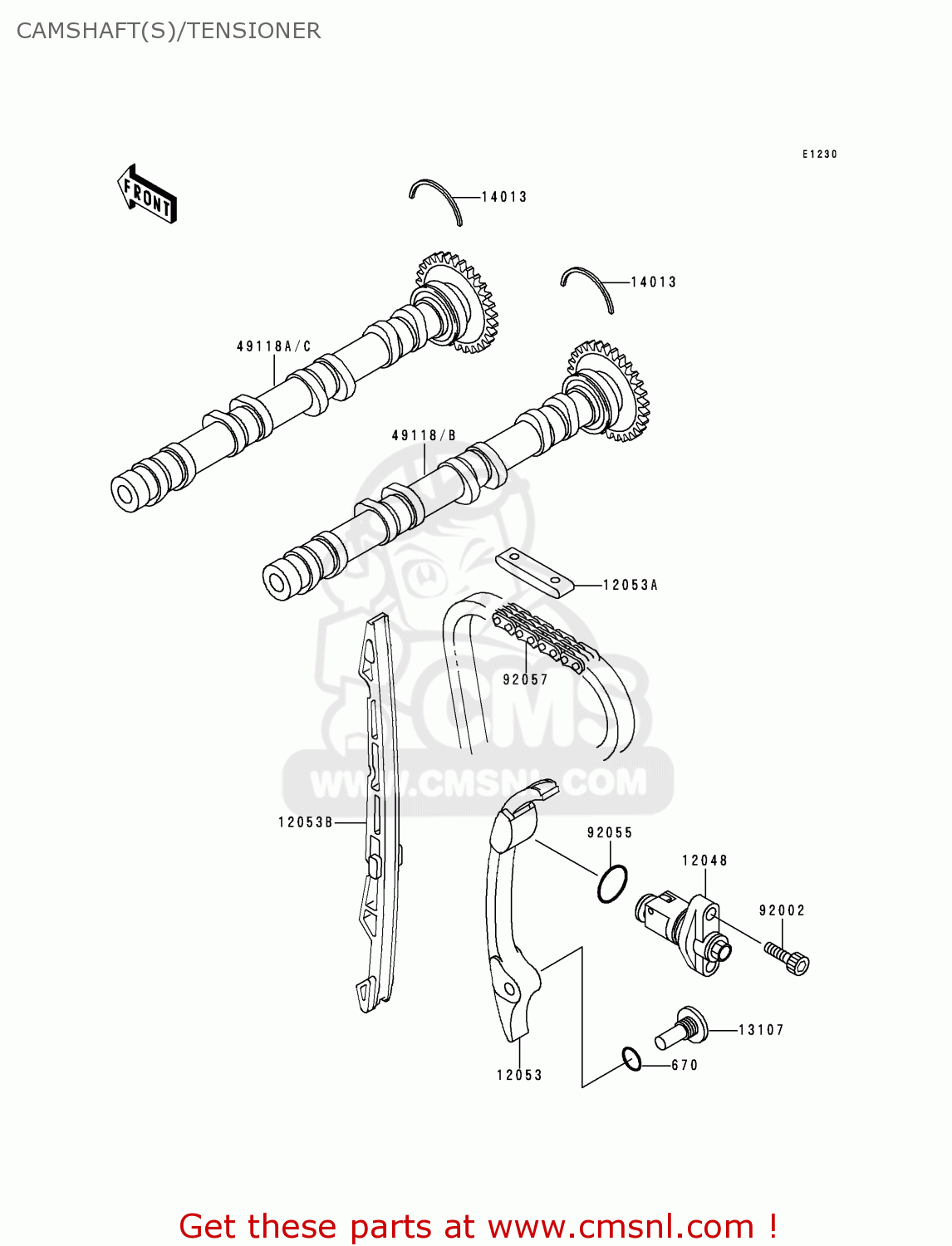

Camshaft(s)/tensioner diagram ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

CAMSHAFT(S)/TENSIONER ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST
CAMSHAFT(S)/TENSIONER ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST
CAMSHAFT(S)/TENSIONER ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
670
670D2014
ref: 670
O RING,14MM
670D2014
€ 3.50
12048
120481132
ref: 12048
TENSIONER-ASSY
120481132
€ 101.00
12053
120531338
ref: 12053
GUIDE-CHAIN,RR
120531338
€ 41.50
12053A
120531340
ref: 12053A
GUIDE-CHAIN,HEAD
120531340
€ 7.00
12053B
120531343
ref: 12053B
GUIDE-CHAIN,FR
120531343
€ 28.00
13107
131071280
ref: 13107
SHAFT
131071280
€ 17.50
14013
140131057
ref: 14013
RING-POSITION,CAMSHAF
140131057
€ 3.50
49118
491181119
ref: 49118
AREUFGGRITNLNRSDSPUK
CAMSHAFT-COMP,INTAKE
€ 316.50
49118A
491181120
ref: 49118A
AREUFGGRITNLNRSDSPUK
CAMSHAFT-COMP,EXHAUST
491181120
€ 301.00
49118B
491181122
ref: 49118B
FRST
CAMSHAFT-COMP,INTAKE
491181122
€ 332.00
49118C
491181123
ref: 49118C
FRST
CAMSHAFT-COMP,EXHAUST
€ 332.00
92002
920021696
ref: 92002
BOLT,SOCKET,6X25
920021696
€ 1.50
92055
92055086
ref: 92055
RING-O
92055086
€ 2.50
92057
920571384
ref: 92057
CHAIN,CAM,88RH2015
920571384
€ 50.00
