CRANKCASE BOLT PATTERN

ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

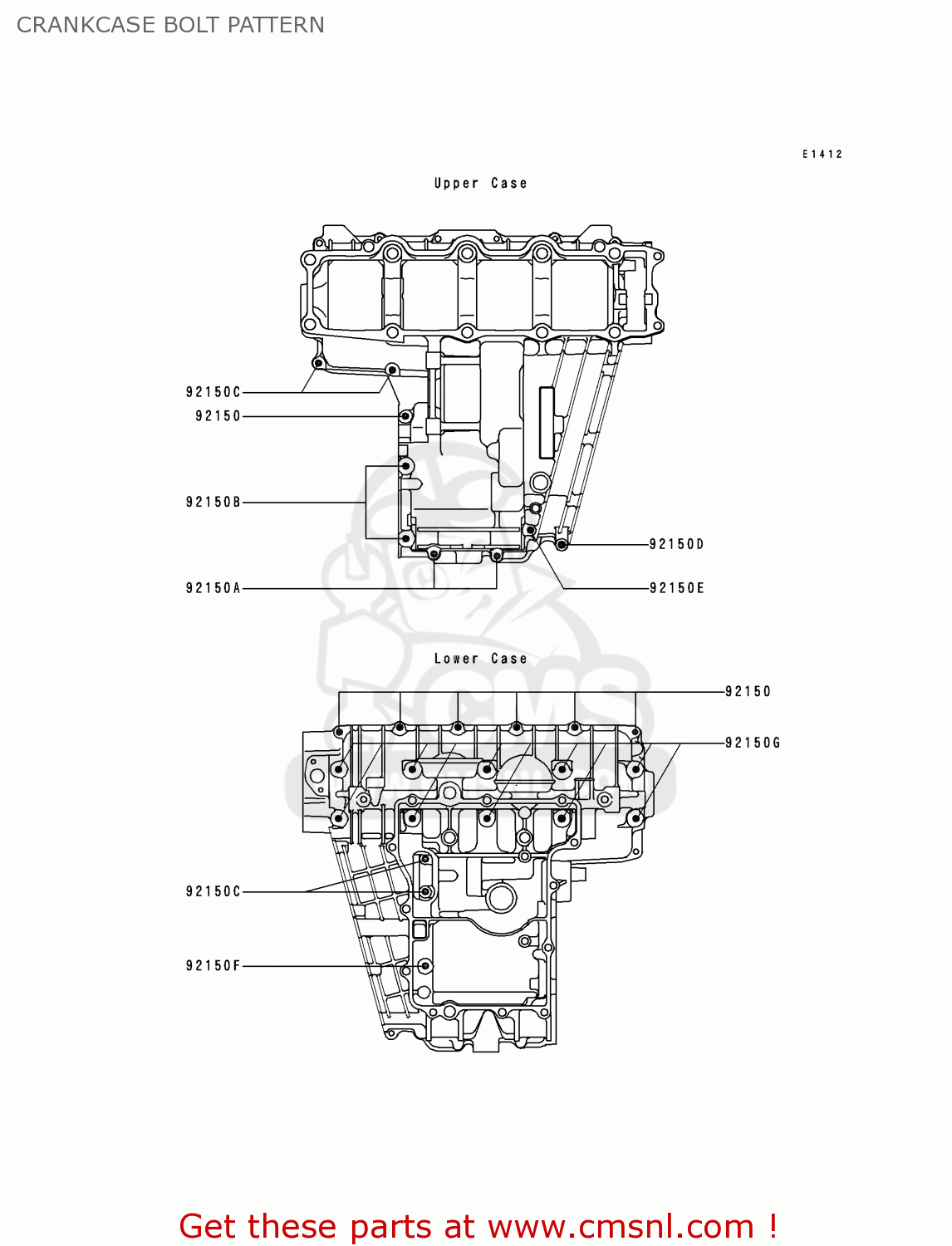

Crankcase bolt pattern diagram ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

CRANKCASE BOLT PATTERN ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

CRANKCASE BOLT PATTERN ZX900B1 NINJA ZX9R 1994 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

92150

921501301
ref: 92150

BOLT,6X38

€ 2.50

92150A

921501464
ref: 92150A

BOLT,6X105

€ 4.00

92150B

921501483
ref: 92150B

BOLT,8X70

€ 5.00

92150C

921501547
ref: 92150C

BOLT,6X35

€ 3.50

92150D

921501548
ref: 92150D

BOLT,6X60

€ 3.00

92150E

921501549
ref: 92150E

BOLT,6X70

€ 3.50

92150F

921501550
ref: 92150F

BOLT,8X115

€ 4.50

92150G

921501759
ref: 92150G

BOLT,9X95

€ 5.50
