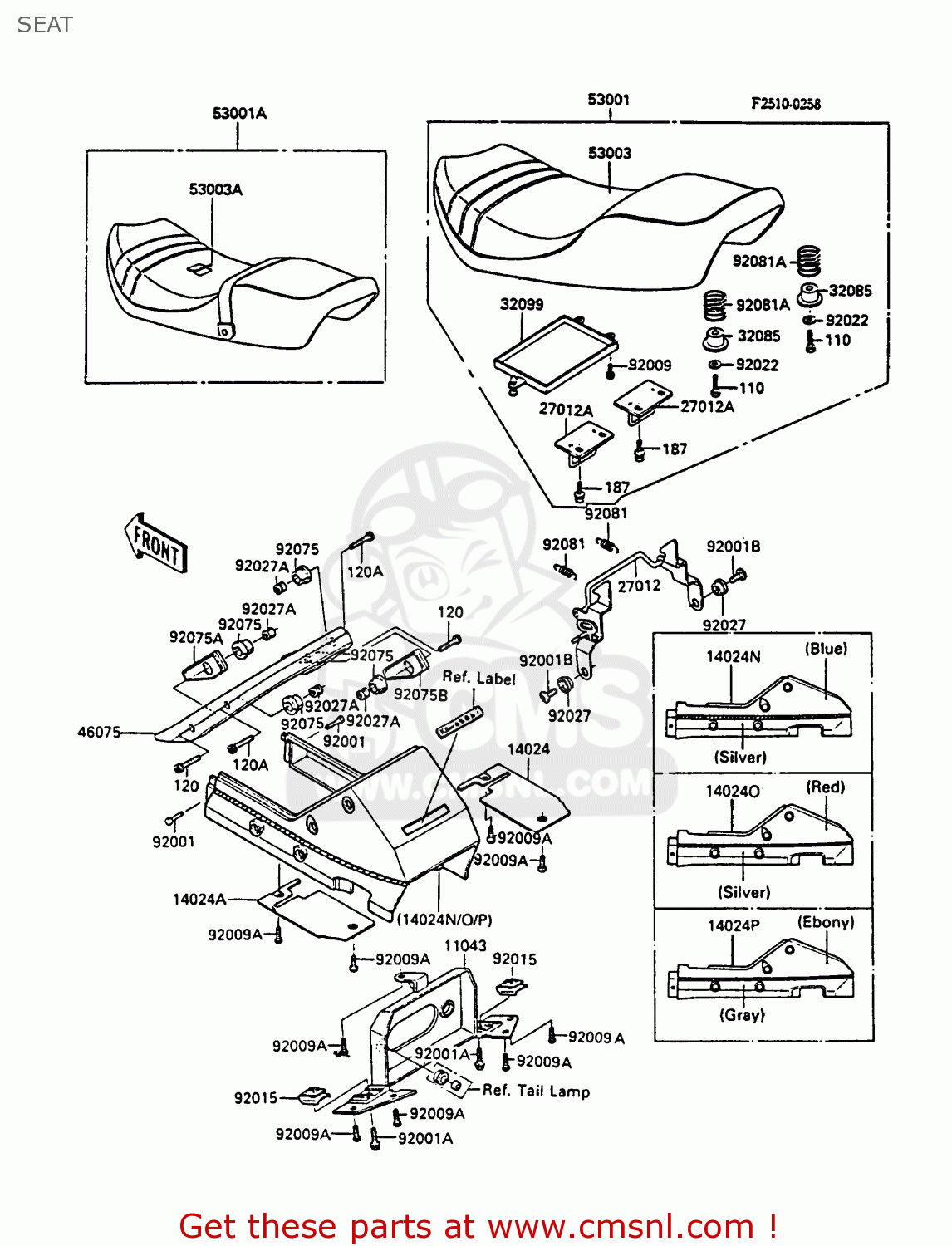

SEAT

ref

part #

description

quantity

11043

110431458
ref: 11043

BRACKET,TAIL LAMP

€ 13.00

14024

140251888
ref: 14024

COVER,SEAT LOCK,RH

€ 9.00

14024A

140251889
ref: 14024A

COVER,SEAT LOCK,LH

€ 11.00

14024N

140255254L8
ref: 14024N

COVER,SEAT,L.P.BLUE/G

€ 272.50

14024O

140255265M7
ref: 14024O
EUFGNRSDSPUK

COVER,SEAT,F.RED/G.SI

€ 258.50

14024P

140255276T4
ref: 14024P
AREUFGNRSDUK

COVER,SEAT,EBONY/GRAY

€ 258.50

27012

270121321
ref: 27012

HOOK,SEAT LOCK

€ 42.00

27012A

53008021
ref: 27012A

HOOK,SEAT

€ 7.50

32085

320851167
ref: 32085

STOPPER,SEAT

€ 8.00

32099

32099011
ref: 32099

CASE,MANUAL

€ 11.50

46075

460751054
ref: 46075

GRIP,FRAME

€ 235.00

53001

530011370
ref: 53001
FGNRSDSPSTUK

SEAT-ASSY,DUAL

€ 605.50

53001A

530011376
ref: 53001A
EUGR

SEAT-ASSY,DUAL,W/BAND

€ 534.50

53003

530031119
ref: 53003
FGNRSDSPSTUK

LEATHER,SEAT

€ 238.50

53003A

530031120
ref: 53003A
EUGR

LEATHER,SEAT

€ 275.50

92001

920011771
ref: 92001

BOLT,6X12

€ 2.50

92001A

920011826
ref: 92001A

BOLT,6X20

€ 2.50

92001B

920011841
ref: 92001B

BOLT,8X16

€ 2.50

110

110B0625
ref: 110

BOLT-HEX HEAD,6X25

€ 4.00

120

120S0835
ref: 120

BOLT-SOCKET,8X35,BLAC

€ 3.00

120A

120S0840
ref: 120A

BOLT-SOCKET,8X40,BLAC

€ 3.00

187

187B0614
ref: 187

BOLT-UPSET-WSP

€ 0.50

92009

920091043
ref: 92009

SCREW,TAPPING,5X8

€ 3.00

92009A

920091197
ref: 92009A

SCREW

€ 2.50

92015

920151346
ref: 92015

NUT,TAIL LAMP BRACKET

€ 7.00

92022

92022116
ref: 92022

WASHER-PLAIN

€ 2.50

92027

920271565
ref: 92027

COLLAR,8.2X13X6

€ 1.50

92027A

920271742
ref: 92027A

COLLAR,L=14

€ 3.50

92075

920751603
ref: 92075

DAMPER,FRAME GRIP

€ 4.00

92075A

920751604
ref: 92075A

DAMPER,FRAME GRIP,LH

€ 5.00

92075B

920751605
ref: 92075B

DAMPER,FRAME GRIP,RH

€ 4.50

92081

920811580
ref: 92081

SPRING,HOOK RETURN

€ 4.50

92081A

920811664
ref: 92081A

SPRING,SEAT

€ 4.50

all assemblies
