MUFFLER(S)

ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST

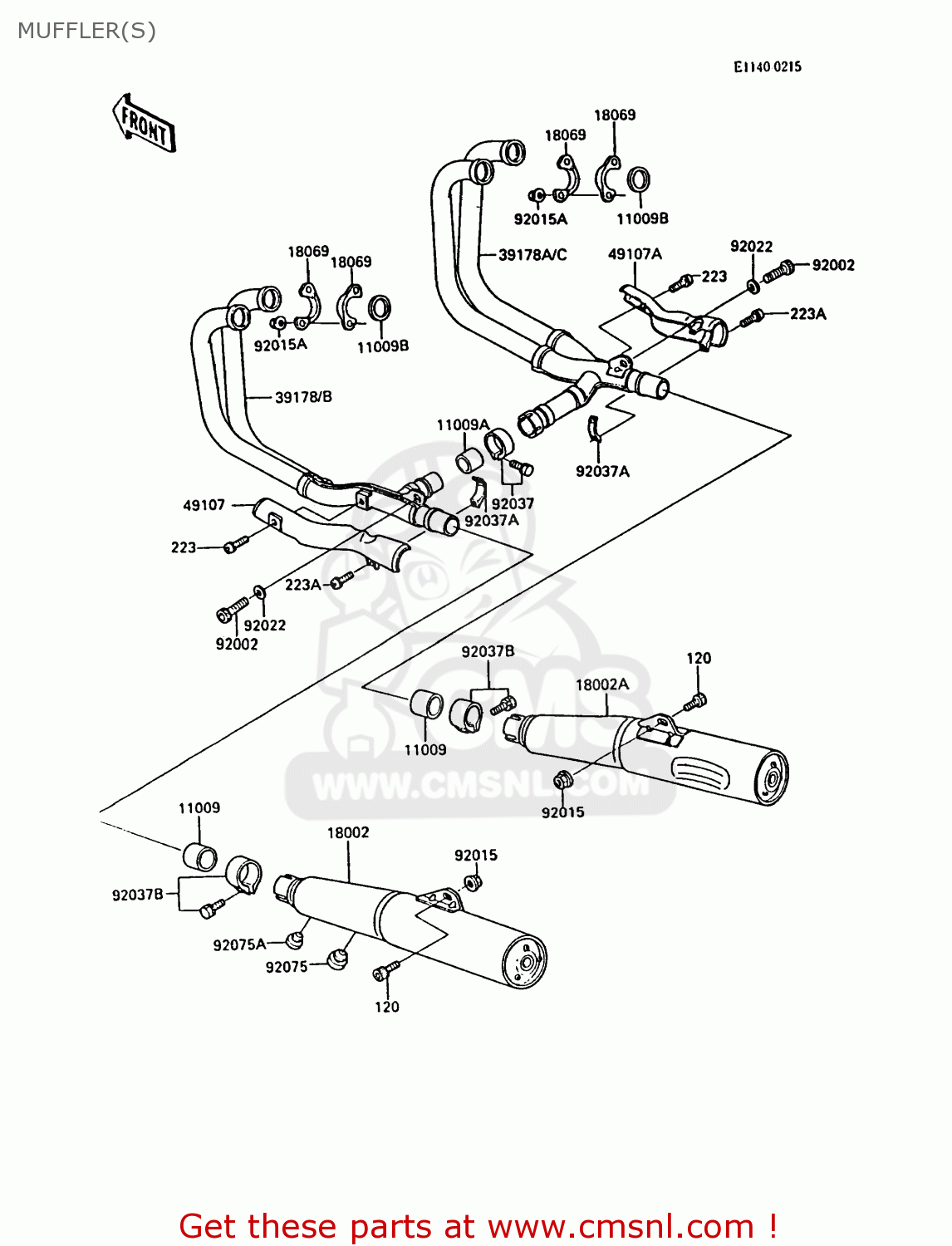

Muffler(s) diagram ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST

MUFFLER(S) ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST
MUFFLER(S) ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST
MUFFLER(S) ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120Z0820
ref: 120
BOLT-SOCKET,8X20
€ 2.50
223
223C0612
ref: 223
SCREW-PAN-WS-CROS
223C0612
€ 2.00
223A
223C0620
ref: 223A
SCREW-PAN-WS-CROS
223C0620
€ 2.50
11009
110091480
ref: 11009
GASKET,EXHAUST PIPE C (MCA)
110091480
€ 20.50
11009A
110091659
ref: 11009A
GASKET,EXHAUST MANIFO (MCA)
110091659
€ 20.00
11009B
18067013
ref: 11009B
GASKET-EXHAUST PIPE (NAS)
18067013
€ 7.00
18002
180021560
ref: 18002
BODY-COMP-MUFFLER,LH
180021560
€ 318.00
18002A
180021561
ref: 18002A
BODY-COMP-MUFFLER,RH
180021561
€ 318.00
18069
180691054
ref: 18069
HOLDER-EXHAUST PIPE
180691054
€ 16.50
39178
391781067
ref: 39178
EUFGGRNRSDSPUK
MANIFOLD-COMP-EXHAUST
391781067
€ 418.50
39178A
391781068
ref: 39178A
EUFGGRNRSDSPUK
MANIFOLD-COMP-EXHAUST
391781068
€ 370.00
39178B
391781071
ref: 39178B
ST
MANIFOLD-COMP-EXHAUST
€ 329.50
39178C
391781072
ref: 39178C
ST
MANIFOLD-COMP-EXHAUST
€ 298.50
49107
491071053
ref: 49107
COVER-EXHAUST PIPE,LH
491071053
€ 73.00
49107A
491071058
ref: 49107A
COVER-EXHAUST PIPE,RH
491071058
€ 73.00
92002
920021371
ref: 92002
BOLT
€ 2.50
92015
920151014
ref: 92015
NUT,8MM
920151014
€ 0.50
92015A
920151380
ref: 92015A
NUT,LOCK,8MM
920151380
€ 3.00
92022
920221594
ref: 92022
WASHER,PLAIN
920221594
€ 2.50
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
920371270
€ 13.50
92037A
920371506
ref: 92037A
CLAMP,EXHAUST PIPE CO
920371506
€ 10.50
92037B
920371537
ref: 92037B
CLAMP,POWER CHAMBER
920371537
€ 14.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
92075A
92075281
ref: 92075A
DAMPER,9X24X14
92075281
€ 4.00
