Genuine ZX Kawasaki Parts delivered quickly!


OIL PUMP

ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST

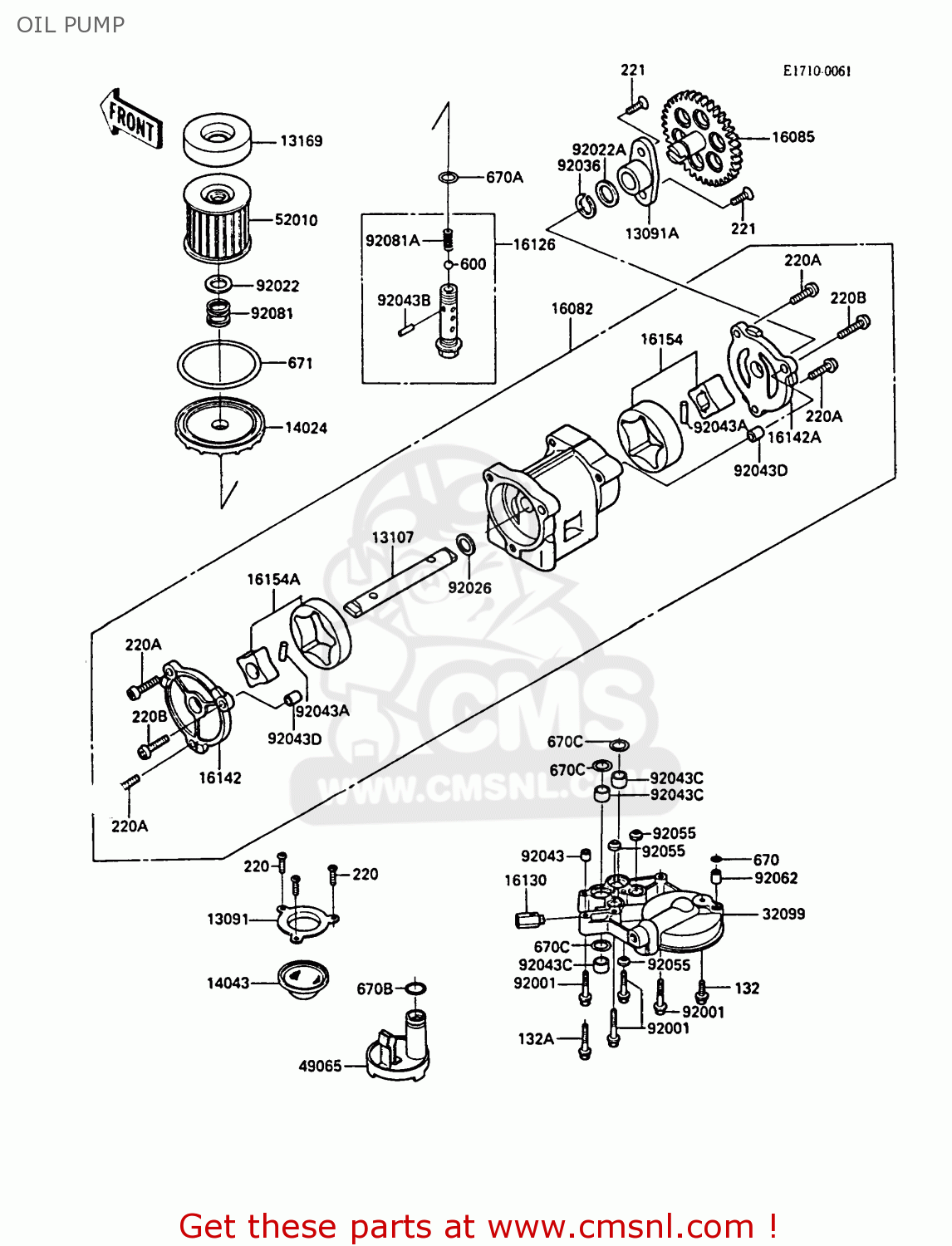

Oil pump diagram ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST

OIL PUMP ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST
OIL PUMP ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST
OIL PUMP ZX900A4 GPZ900R 1987 EUROPE UK FG GR NR SD SP ST
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132A
132G0645
ref: 132A
BOLT-FLANGED-SMALL
132G0645
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
220A
220B0614
ref: 220A
SCREW-PAN HEAD,6X14
220B0614
€ 2.00
220B
220B0620
ref: 220B
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
221
221B0616
ref: 221
SCREW-CNTSNK HD,6X16
221B0616
€ 0.50
600
600A1200
ref: 600
BALL-STEEL,3/8
600A1200
€ 0.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
670A
670B2016
ref: 670A
O RING,16MM
670B2016
€ 1.00
13091
130911274
ref: 13091
HOLDER,OIL FILTER
130911274
€ 9.50
13091A
130911333
ref: 13091A
HOLDER,PUMP GEAR
130911333
€ 21.00
13107
131071105
ref: 13107
SHAFT,OIL PUMP
131071105
€ 60.50
13169
131691313
ref: 13169
PLATE,OIL FILTER
131691313
€ 7.00
14024
140251422
ref: 14024
COVER,OIL FILTER,F.BL
140251422
€ 31.00
14043
16111003
ref: 14043
STRAINER,OIL
16111003
€ 10.00
16082
160821060
ref: 16082
PUMP-ASSY-OIL
160821060
€ 189.00
16085
160851103
ref: 16085
GEAR,OIL PUMP,35T
160851103
€ 84.00
16126
161261108
ref: 16126
VALVE,OIL FILTER
161261108
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
16142
161421052
ref: 16142
COVER-PUMP,LH
€ 31.50
16142A
161421054
ref: 16142A
COVER-PUMP,RH
161421054
€ 30.00
16154
161541007
ref: 16154
ROTOR ASSY,OIL PUMP
161541007
€ 51.50
16154A
161541053
ref: 16154A
ROTOR-PUMP
161541053
€ 42.00
32099
320991083
ref: 32099
CASE,OIL FILTER
320991083
€ 89.00
49065
490651053
ref: 49065
FILTER-OIL
€ 22.50
52010
16099003
ref: 52010
FILTER,OIL
16099003
€ 6.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92022
920221012
ref: 92022
WASHER,20.5X30X1
920221012
€ 3.00
92022A
920221495
ref: 92022A
WASHER,14X20X1
920221495
€ 2.50
92026
920261230
ref: 92026
SPACER,OIL PUMP
€ 2.50
92036
920361052
ref: 92036
RING-SNAP,PUMP GEAR
920361052
€ 4.00
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92043A
920431061
ref: 92043A
PIN,DOWEL,5X17.8
920431061
€ 3.00
92043B
92043111
ref: 92043B
SPRING PIN
92043111
€ 4.00
92043C
920431213
ref: 92043C
PIN,18X20X12
920431213
€ 4.00
92043D
920431302
ref: 92043D
PIN,DOWEL,8X10
920431302
€ 1.00
92055
92055077
ref: 92055
O RING
92055077
€ 4.00
92062
920621055
ref: 92062
NOZZLE
920621055
€ 6.50
92081
920811018
ref: 92081
SPRING,OIL FILTER
920811018
€ 3.00
92081A
92081109
ref: 92081A
SPRING
92081109
€ 7.50
670B
670B2018
ref: 670B
O RING,18MM
670B2018
€ 1.00
670C
670D2020
ref: 670C
O RING,20MM
670D2020
€ 4.00
671
671B2590
ref: 671
O RING,90MM
671B2590
€ 6.50
