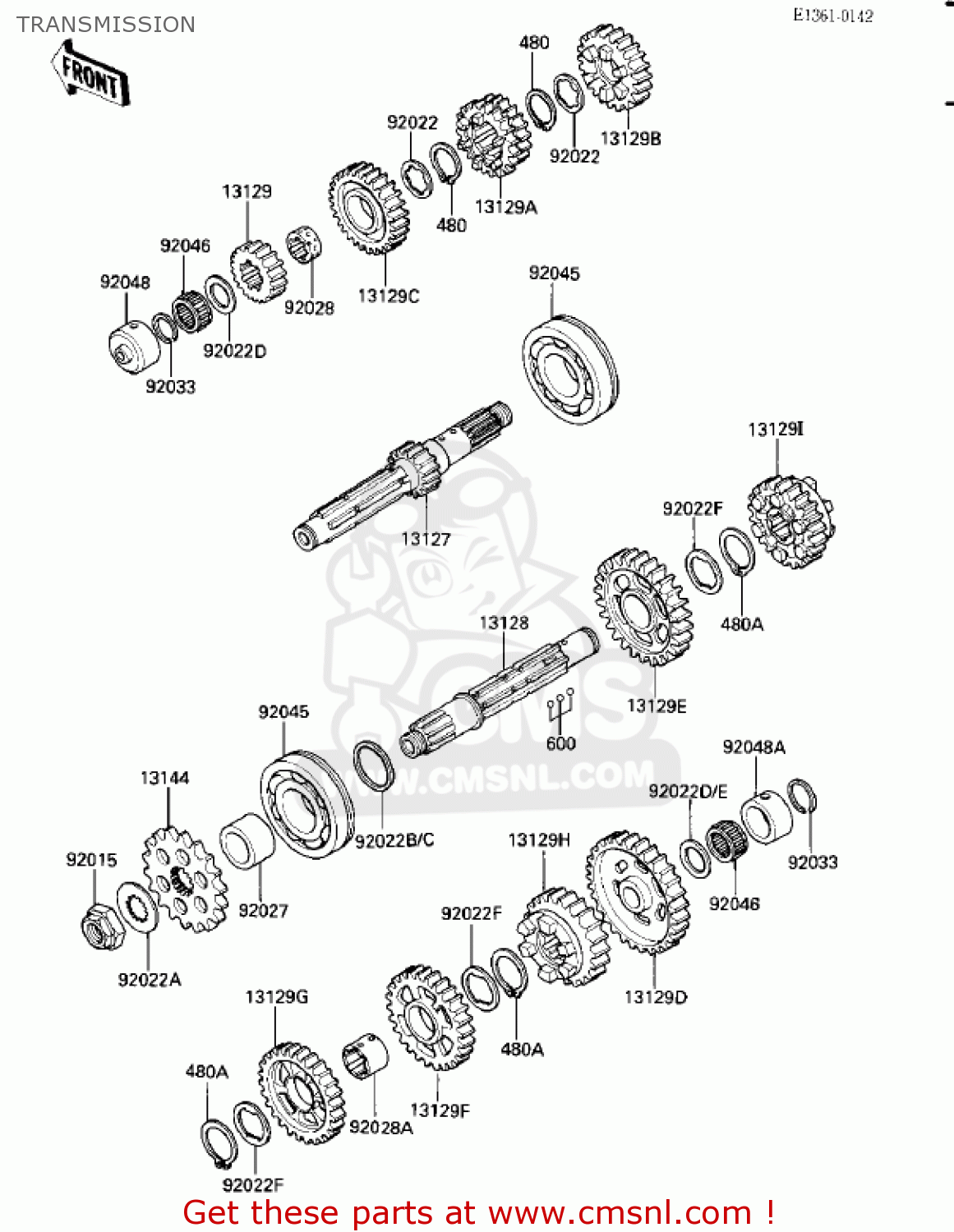

TRANSMISSION

ref

part #

description

quantity

13127

131271108
ref: 13127

SHAFT-TRANSMISSION IN

€ 241.00

13128

131281113
ref: 13128

SHAFT-TRANSMISSION

€ 173.00

13129

131291530
ref: 13129

GEAR,INPUT 2ND,19T

€ 116.50

13129A

131291531
ref: 13129A

GEAR,INPUT 3RD&4TH,22

€ 157.50

13129B

131291532
ref: 13129B

GEAR,INPUT 5TH,26T

€ 150.00

13129C

131291533
ref: 13129C

GEAR,INPUT TOP,28T

€ 128.00

13129D

131291534
ref: 13129D

GEAR,OUTPUT LOW,42T

€ 170.00

13129E

131291535
ref: 13129E

GEAR,OUTPUT 2ND,38T

€ 127.50

13129F

131291536
ref: 13129F

GEAR,OUTPUT 3RD,35T

€ 77.50

13129G

131291537
ref: 13129G

GEAR,OUTPUT 4TH,32T

€ 79.50

13129H

131291538
ref: 13129H

GEAR,OUTPUT 5TH,30T

€ 169.50

13129I

131291539
ref: 13129I

GEAR,OUTPUT TOP,29T

€ 148.50

13144

131441106
ref: 13144

SPROCKET-OUTPUT,17T

€ 28.50

92015

920151210
ref: 92015

NUT,20MM

€ 12.00

92022

920221077
ref: 92022

WASHER,LOCK (O.D=35O)

€ 7.50

92022A

922001060
ref: 92022A

WASHER

€ 4.00

92022B

920221572
ref: 92022B

WASHER,28.3X34X0.5

€ 4.50

92022C

920221626
ref: 92022C

WASHER,28.3X34X0.3

€ 14.00

92022D

92022212
ref: 92022D

WASHER-PLAIN,22MM

€ 6.50

92022E

92022213
ref: 92022E

WASHER,22.3X35X1.2

€ 7.00

92022F

92024069
ref: 92022F

WASHER,TOOTHED,30.5X3

€ 3.50

92027

921431431
ref: 92027

COLLAR

€ 14.50

92028

920281124
ref: 92028

BUSHING,TOP GEAR

€ 31.00

92028A

920281271
ref: 92028A

BUSHING,OUTPUT GEAR

€ 24.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92045

920451186
ref: 92045

BEARING-BALL

€ 73.00

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92048

920481052
ref: 92048

RACE,INPUT SHAFT

€ 59.50

92048A

920481053
ref: 92048A

RACE,30X38X15

€ 27.50

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J2900
ref: 480A

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50
