FRAME
ZX900A3 NINJA 1986 USA CALIFORNIA CANADA

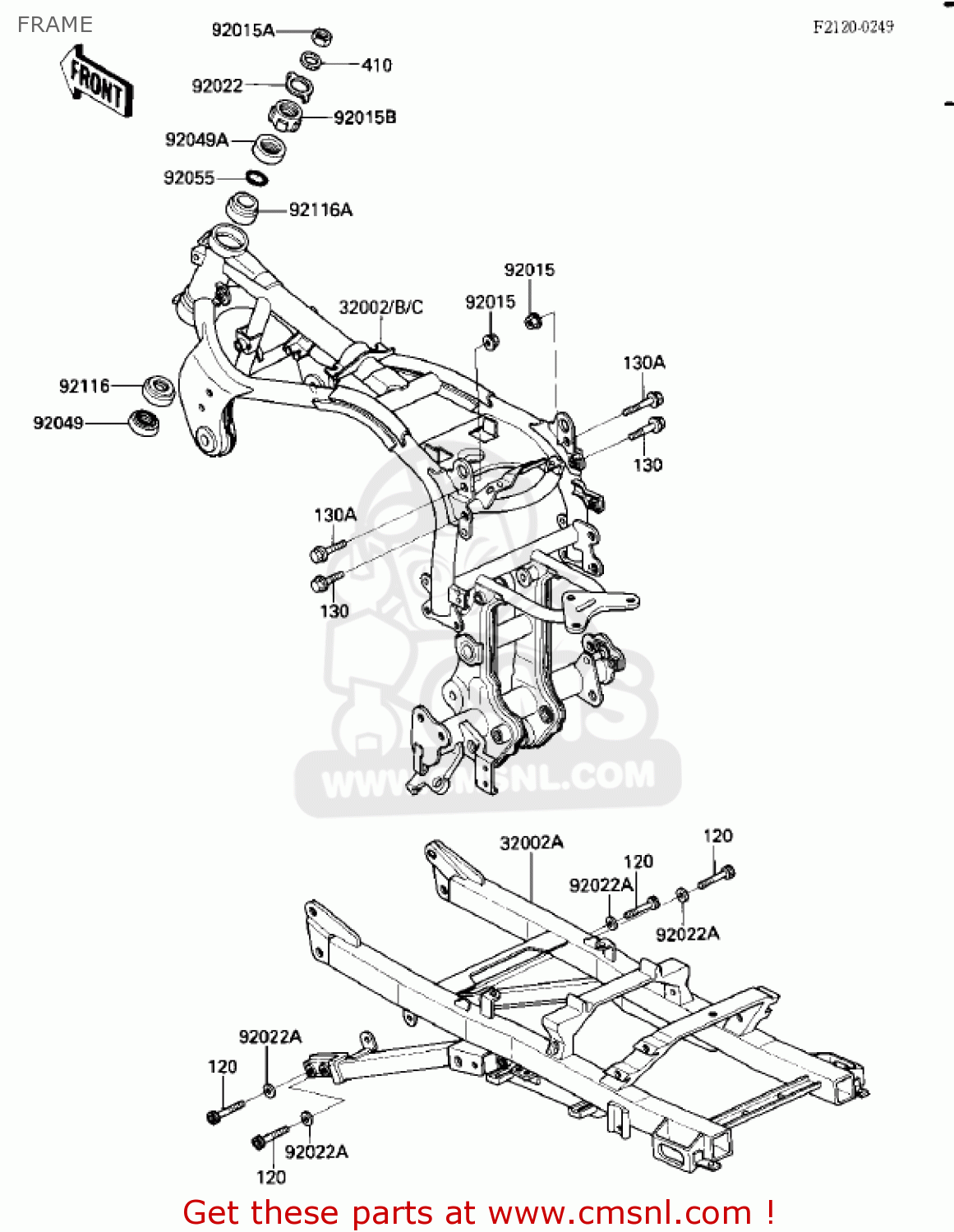

Frame diagram ZX900A3 NINJA 1986 USA CALIFORNIA CANADA
FRAME ZX900A3 NINJA 1986 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
32002
320021686
ref: 32002
FRAME-COMP,FR
€ 875.50
32002A
32002171210
ref: 32002A
FRAME-COMP,AL,RR
€ 826.00
32002B
320021842
ref: 32002B
(SUBSTITUTES 32002-1
FRAME-COMP,FR
€ 1,039.50
32002C
320021842
ref: 32002C
FRAME-COMP,FR
€ 1,039.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151404
ref: 92015A
NUT,18MM
€ 15.50
92015B
920151546
ref: 92015B
NUT,25MM,T=12
€ 14.50
92022
920221555
ref: 92022
WASHER,CLAW,18.5X30X2
€ 4.50
92022A
920221595
ref: 92022A
WASHER,8.5X16X2.5
€ 1.00
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92049A
920491214
ref: 92049A
SEAL-OIL,STEERING STE
€ 11.00
92055
920551160
ref: 92055
RING-0,24.7MM
€ 3.00
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92116A
921161056
ref: 92116A
BEARING-ROLLER
€ 48.50
120
120P0825
ref: 120
BOLT,SOCKET,8X25
€ 1.50
130
130G0820
ref: 130
BOLT,FLANGED,8X20
€ 0.50
130A
130G0825
ref: 130A
BOLT,FLANGED,8X25
€ 0.50
410
410F1800
ref: 410
W-PLAIN-S
€ 3.00
