CYLINDER/PISTONS (-E/NO. 030893)

ZX900A3 NINJA 1986 USA CALIFORNIA CANADA

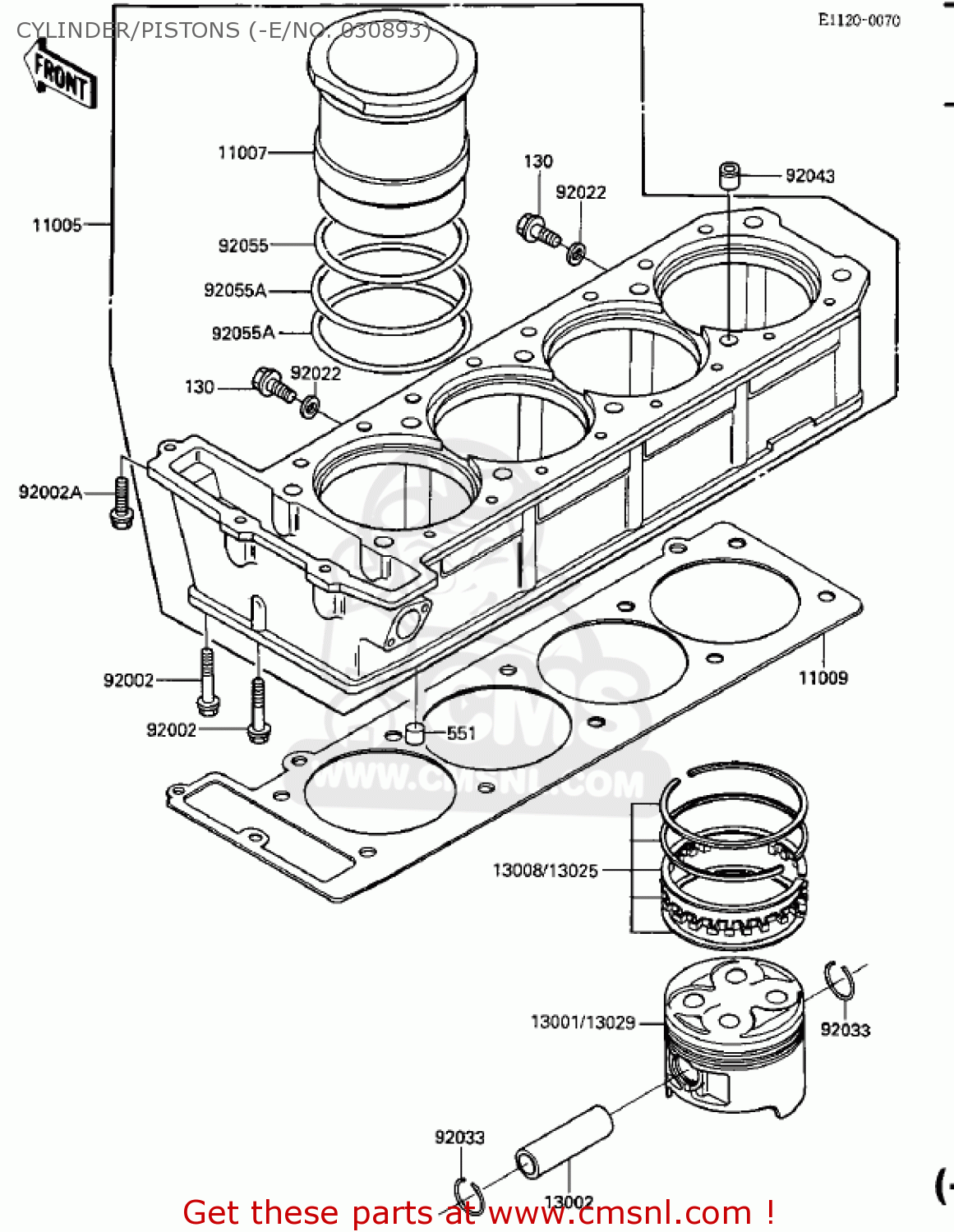

Cylinder/pistons (-e/no. 030893) diagram ZX900A3 NINJA 1986 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11005

110051352
ref: 11005

CYLINDER-ENGINE

€ 906.50

11007

110071063
ref: 11007

LINER-CYLINDER

€ 105.00

11009

110091386
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 24.50

13001

130011205
ref: 13001

PISTON-ENGINE,STD

€ 55.00

13002

130021023
ref: 13002

PIN-PISTON,12X18X57.2

€ 20.00

13008

130081053
ref: 13008

RING-SET-PISTON,STD

€ 63.50

13025

130251053
ref: 13025

RING-SET-PISTON L,O/S

€ 68.00

13029

130291142
ref: 13029

PISTON-ENGINE L,O/S 0

€ 72.00

92002

920011899
ref: 92002

BOLT,6X38

€ 2.50

92002A

920021138
ref: 92002A

BOLT,6X30

€ 3.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331099
ref: 92033

RING-SNAP,18MM

€ 0.50

92043

92042032
ref: 92043

PIN,DOWEL,14MM

€ 3.00

92055

920551229
ref: 92055

RING-O,78MM

€ 13.50

92055A

920551230
ref: 92055A

RING-O,79.5MM

€ 5.00

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

551

551A1012
ref: 551

PIN-DOWEL

€ 2.50

CYLINDER/PISTONS (-E/NO. 030893)
