FRAME
ZX900A2 1985 EUROPE UK FR GR IT NR SD

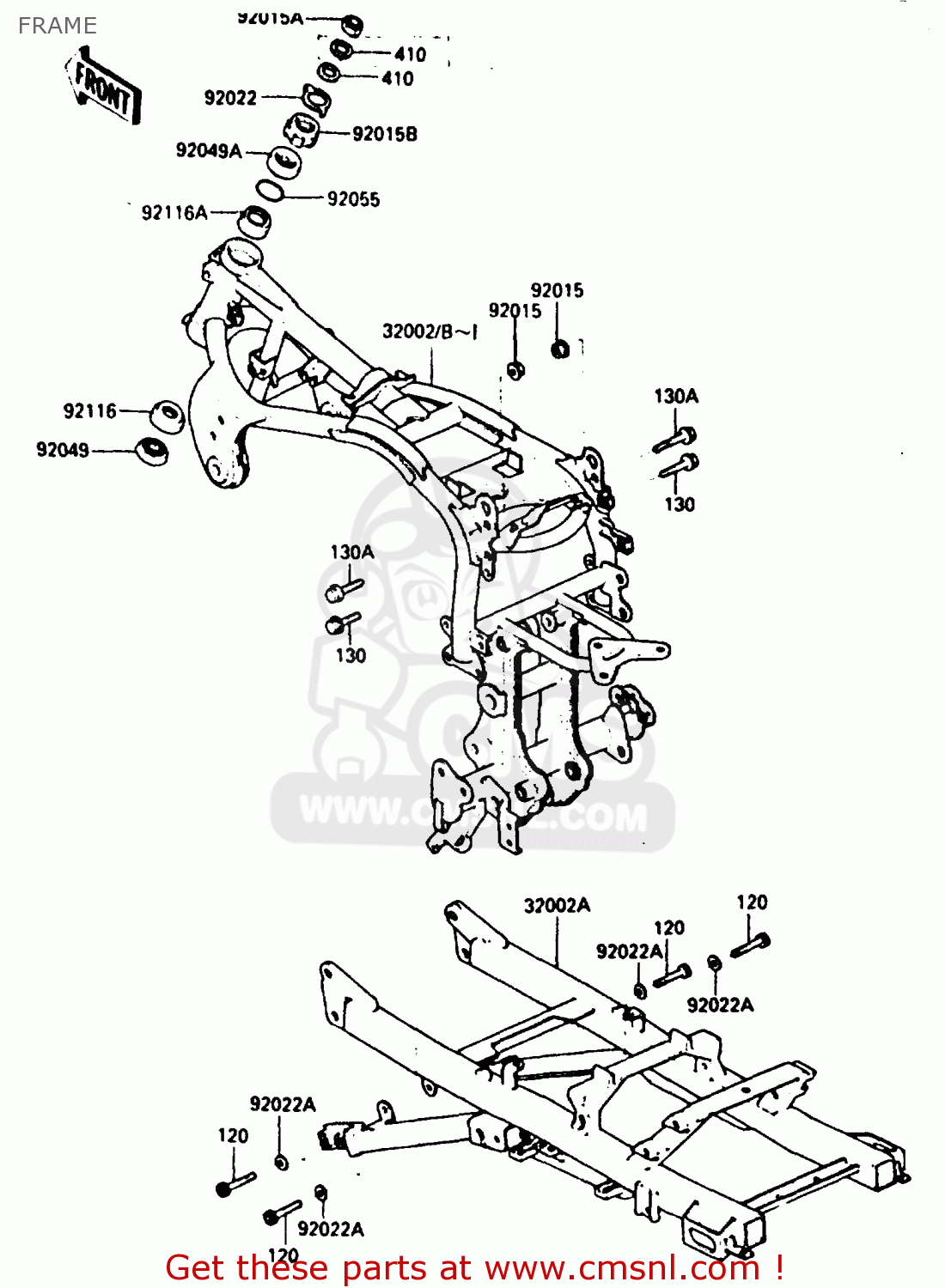

Frame diagram ZX900A2 1985 EUROPE UK FR GR IT NR SD
FRAME ZX900A2 1985 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
32002A
32002171210
ref: 32002A
FRAME-COMP,AL,RR
€ 826.00
32002D
320021771
ref: 32002D
EU, FR, GR, IT, ST,
FRAME-COMP,FR
€ 1,039.50
32002E
320021773
ref: 32002E
NR, WG
FRAME-COMP,FR
€ 717.00
32002F
320021773
ref: 32002F
SD
FRAME-COMP,FR
€ 717.00
32002G
320021842
ref: 32002G
EU, FR, GR, IT, ST,
FRAME-COMP,FR
€ 1,039.50
32002H
320021843
ref: 32002H
NR, SD
FRAME-COMP,FR
€ 972.00
32002I
320021845
ref: 32002I
SD
FRAME-COMP,FR
€ 872.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151404
ref: 92015A
NUT,18MM
€ 15.50
92015B
920151546
ref: 92015B
NUT,25MM,T=12
€ 14.50
92022
920221555
ref: 92022
WASHER,CLAW,18.5X30X2
€ 4.50
92022A
920221595
ref: 92022A
WASHER,8.5X16X2.5
€ 1.00
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92049A
920491214
ref: 92049A
SEAL-OIL,STEERING STE
€ 11.00
92055
920551160
ref: 92055
RING-0,24.7MM
€ 3.00
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92116A
921161056
ref: 92116A
BEARING-ROLLER
€ 48.50
120
120P0825
ref: 120
BOLT,SOCKET,8X25
€ 1.50
130
130G0820
ref: 130
BOLT,FLANGED,8X20
€ 0.50
130A
130G0825
ref: 130A
BOLT,FLANGED,8X25
€ 0.50
410
410F1800
ref: 410
EU, FR, GR, IT, SD,
W-PLAIN-S
€ 3.00
410
410F1800
ref: 410
NR, WG
W-PLAIN-S
€ 3.00
