CLUTCH
ZX900A2 1985 EUROPE UK FR GR IT NR SD

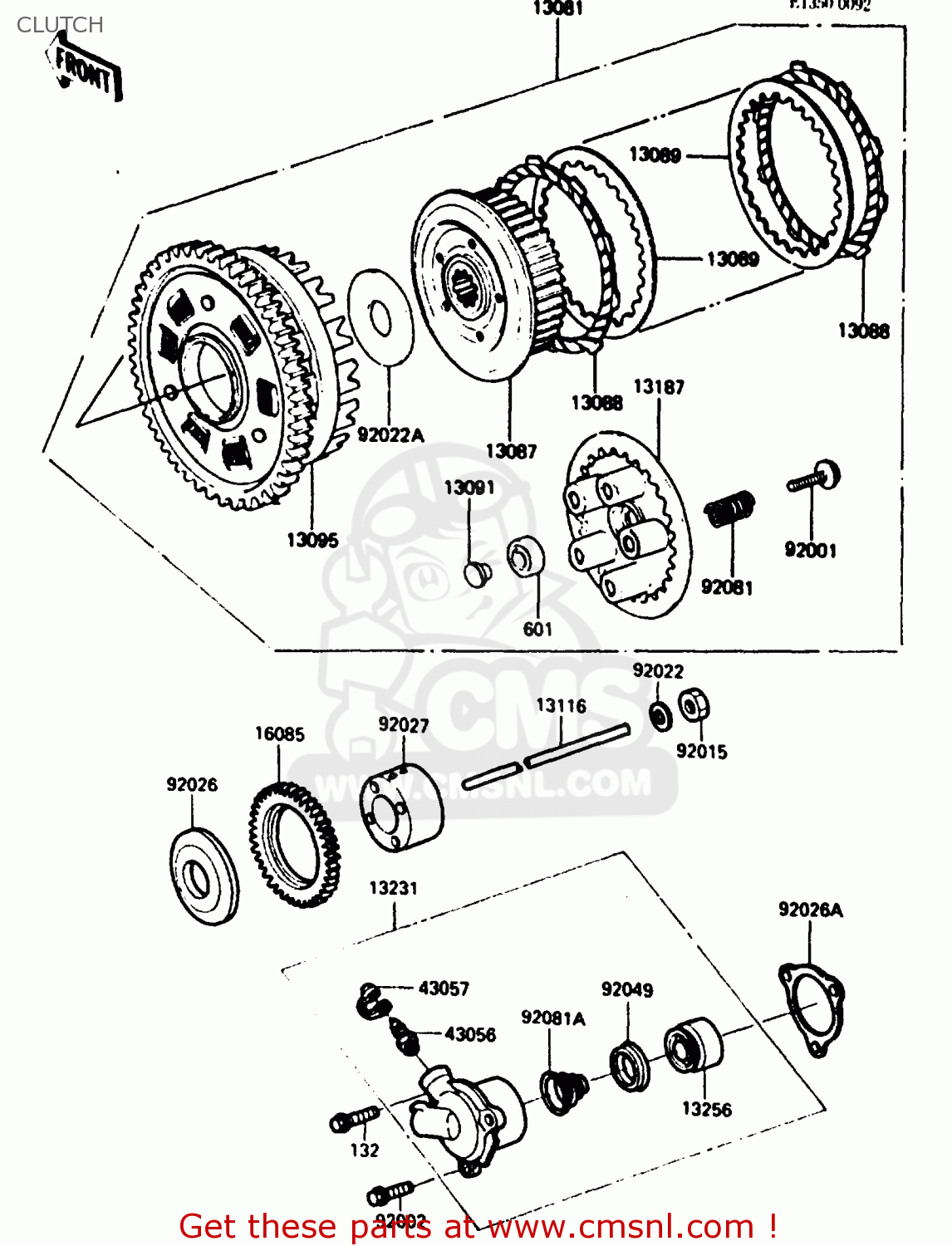

Clutch diagram ZX900A2 1985 EUROPE UK FR GR IT NR SD
CLUTCH ZX900A2 1985 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
13081
130811175
ref: 13081
CLUTCH-ASSY
€ 356.50
13087
13087042
ref: 13087
HUB,CLUTCH
€ 133.00
13088
130881013
ref: 13088
PLATE-FRICTION (NAS)
€ 12.50
13089
13089027
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 7.50
13091
130911089
ref: 13091
HOLDER,HD LAMP SCKT,N
€ 10.50
13095
130951121
ref: 13095
HOUSING-COMP-CLUTCH
€ 413.50
13116
131161104
ref: 13116
ROD-PUSH,CLUTCH
€ 22.50
13187
131871006
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 58.00
13231
132311055
ref: 13231
RELEASE-ASSY-CLUTCH
€ 124.50
13256
132561051
ref: 13256
PISTON,CLUTCH RELEASE
€ 38.50
16085
160851108
ref: 16085
GEAR,OIL PUMP
€ 117.00
43056
430561052
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92002
920021613
ref: 92002
BOLT
€ 1.50
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
920221116
ref: 92022
WASHER,20.3X36X2.3
€ 5.50
92022A
920221592
ref: 92022A
WASHER,CLUTCH THRUST
€ 24.00
92026
920261215
ref: 92026
SPACER
€ 18.00
92026A
920261263
ref: 92026A
SPACER,CLUTCH RELEASE
€ 11.50
92027
920271710
ref: 92027
COLLAR
€ 61.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
€ 13.00
92081
920811033
ref: 92081
SPRING,CLUTCH
€ 6.50
92081A
920811644
ref: 92081A
SPRING,CLUTCH RELEASE
€ 5.50
132
132W0680
ref: 132
BOLT-FLANGED-SMALL
€ 4.00
601
601B6001
ref: 601
BALL BEARING,#6001C3
€ 15.50
