CRANKCASE BOLT PATTERN

ZX900A2 1985 EUROPE UK FR GR IT NR SD

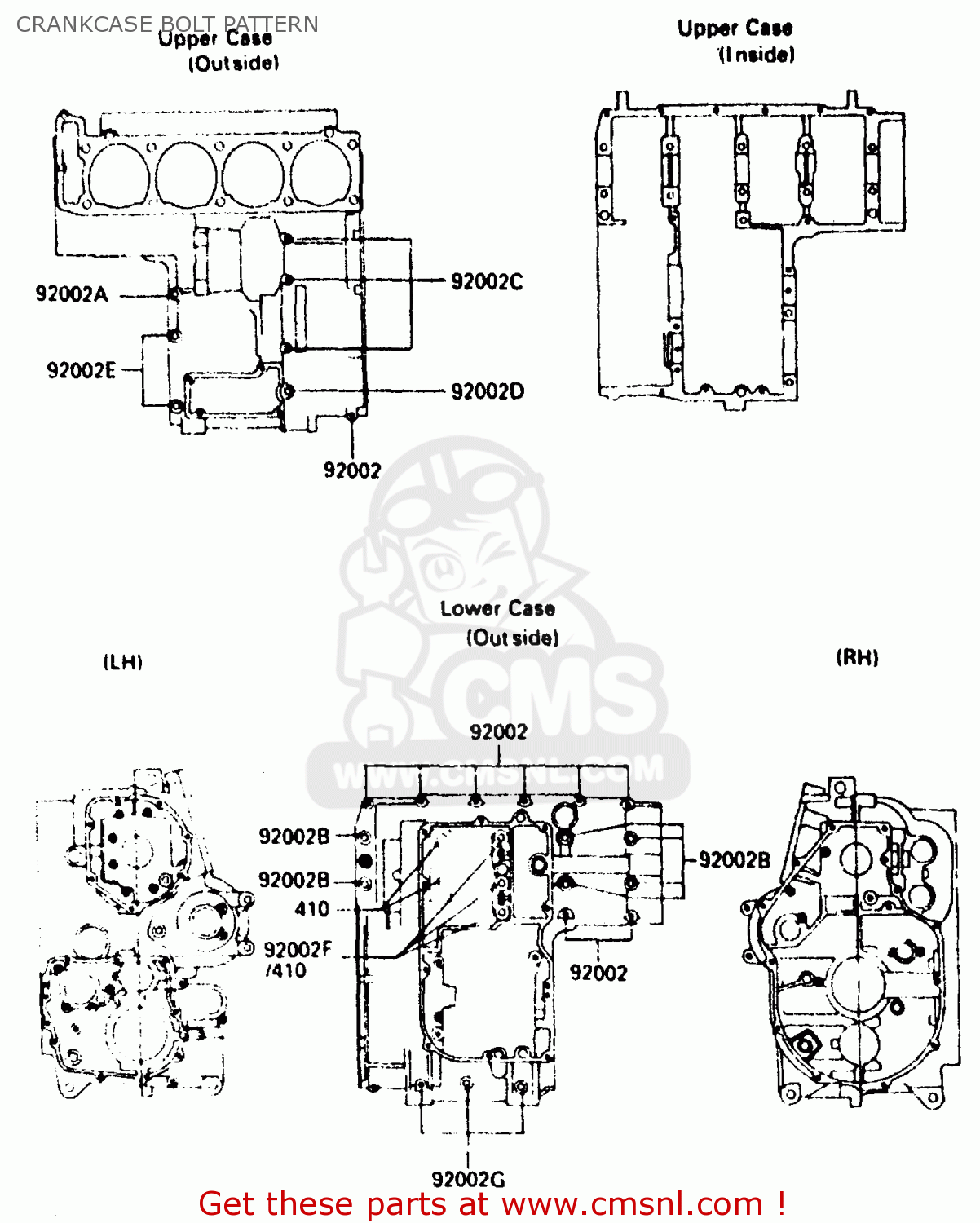

Crankcase bolt pattern diagram ZX900A2 1985 EUROPE UK FR GR IT NR SD

CRANKCASE BOLT PATTERN ZX900A2 1985 EUROPE UK FR GR IT NR SD

CRANKCASE BOLT PATTERN ZX900A2 1985 EUROPE UK FR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

92002

920011899
ref: 92002

BOLT,6X38

€ 2.50

92502A

920021054
ref: 92502A

BOLT,6X55

€ 3.00

92002B

920021057
ref: 92002B

BOLT,8X90

€ 6.50

92022C

920021081
ref: 92022C

BOLT,6X115

€ 4.00

92002D

920021306
ref: 92002D

BOLT

€ 3.50

92002E

920021308
ref: 92002E

BOLT

€ 5.50

92002F

920021402
ref: 92002F

BOLT,8X140

€ 6.50

92002G

920021654
ref: 92002G

BOLT

€ 4.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

all assemblies
