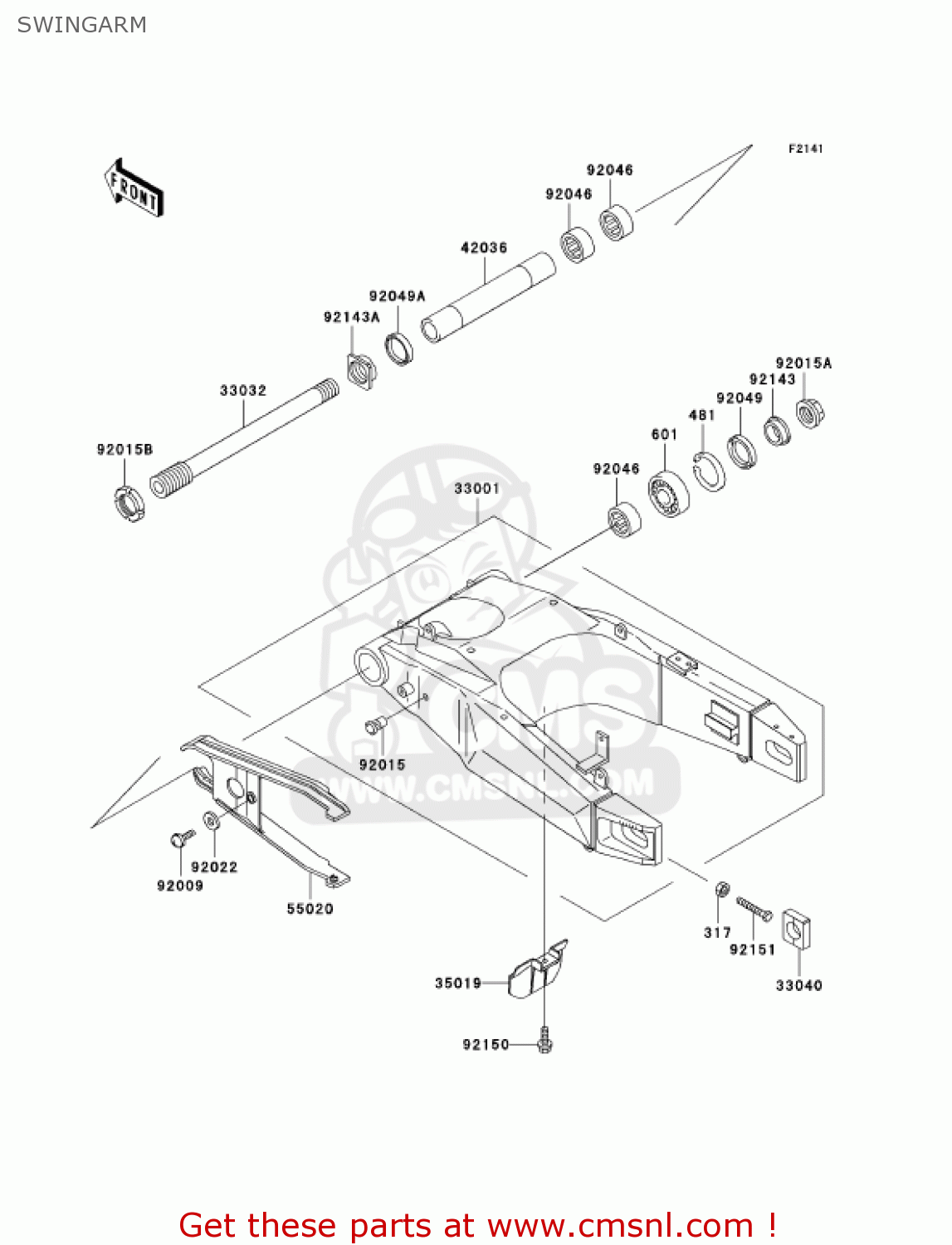

SWINGARM

ref

part #

description

quantity

317

317G0800
ref: 317

NUT-HEX-SMALL,8MM

€ 0.50

481

481J4700
ref: 481

CIRCLIP,47MM

€ 4.00

601

601B6005U
ref: 601

BEARING-BALL,#6005U

€ 25.00

33001

330011494EZ
ref: 33001

ARM-COMP-SWING,C.GRAY

€ 1,606.00

33032

330321173
ref: 33032

SHAFT-SWING ARM

€ 104.00

33040

330401114
ref: 33040

ADJUSTER-CHAIN

€ 13.50

35019

350191333
ref: 35019

FLAP

€ 7.50

42036

420361312
ref: 42036

SLEEVE,SWING ARM,L=22

€ 72.00

55020

550201535
ref: 55020

GUARD,CHAIN

€ 44.50

92009

920091663
ref: 92009

SCREW

€ 2.50

92015

920151792
ref: 92015

NUT,POP,6MM,L=16.5

€ 3.00

92015A

920151845
ref: 92015A

NUT,FLANGED,25MM

€ 17.00

92015B

920151930
ref: 92015B

NUT,FRAME PIVOT,32MM

€ 23.00

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92046

920461205
ref: 92046

BEARING-NEEDLE,BM3520

€ 29.00

92049

920491381
ref: 92049

SEAL-OIL,MHA 35 47 5

€ 8.50

92049A

920491419
ref: 92049A

SEAL-OIL,KC 38 45 6

€ 10.50

92143

921431481
ref: 92143

COLLAR,SWING ARM,L=12

€ 20.50

92143A

921431681
ref: 92143A

COLLAR,SWING ARM,L=15

€ 20.00

92150

921501689
ref: 92150

BOLT,FLANGED,6X14

€ 2.00

92151

921511578
ref: 92151

BOLT,8X55

€ 1.50
