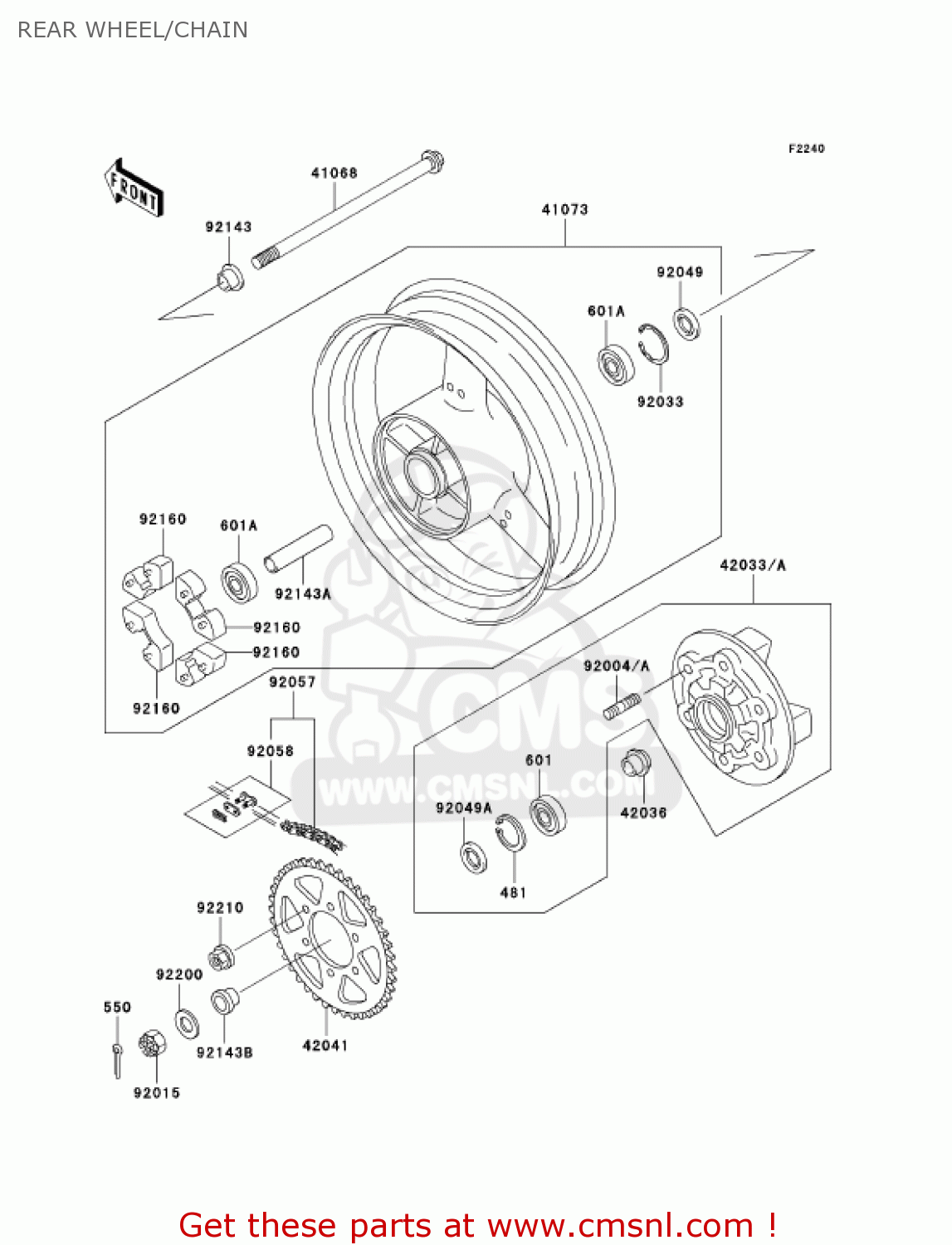

REAR WHEEL/CHAIN

ref

part #

description

quantity

481

481J5500
ref: 481

CIRCLIP

€ 6.50

550

550D4040
ref: 550

PIN-COTTER,4.0X40

€ 1.00

601

601B6006G
ref: 601

BEARING-BALL,#6006G

€ 27.50

601A

601B6205UU
ref: 601A

BEARING-BALL

€ 27.50

41068

410681326
ref: 41068

AXLE,RR

€ 73.00

41073

410731597DH
ref: 41073

WHEEL-ASSY,RR,C.GRAY

€ 875.00

42033A

420331213
ref: 42033A

COUPLING-ASSY,RR HUB

€ 208.50

42036

420361279
ref: 42036

SLEEVE,RR HUB,L=22

€ 21.50

42041

420411467
ref: 42041

SPROCKET-HUB,43T

€ 56.00

92004A

920041275
ref: 92004A

STUD

€ 6.50

92015

920151844
ref: 92015

NUT,CASTLE,24MM

€ 10.00

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92049

920491375
ref: 92049

SEAL-OIL,RR HUB

€ 13.00

92049A

920491376
ref: 92049A

SEAL-OIL,PJN 40 55 8

€ 12.50

92057

920570013
ref: 92057

CHAIN,DRIVE,RKGB525RO

€ 215.00

92058

920581109
ref: 92058

JOINT-CHAIN,DRIVE

€ 8.50

92143

921431475
ref: 92143

COLLAR,RR AXLE,RH,L=2

€ 32.50

92143A

921431783
ref: 92143A

COLLAR,RR HUB,L=136

€ 23.50

92143B

921431784
ref: 92143B

COLLAR,RR AXLE,LH,L=1

€ 34.00

92160

921601485
ref: 92160

DAMPER,SHOCK,RR HUB

€ 16.00

92200

922001081
ref: 92200

WASHER,25.5X38X4.5

€ 3.50

92210

922101258
ref: 92210

NUT,10MM

€ 3.50

all assemblies
