HEADLIGHT(S)

ZX750P7 NINJA ZX7R 2002 USA CALIFORNIA CANADA

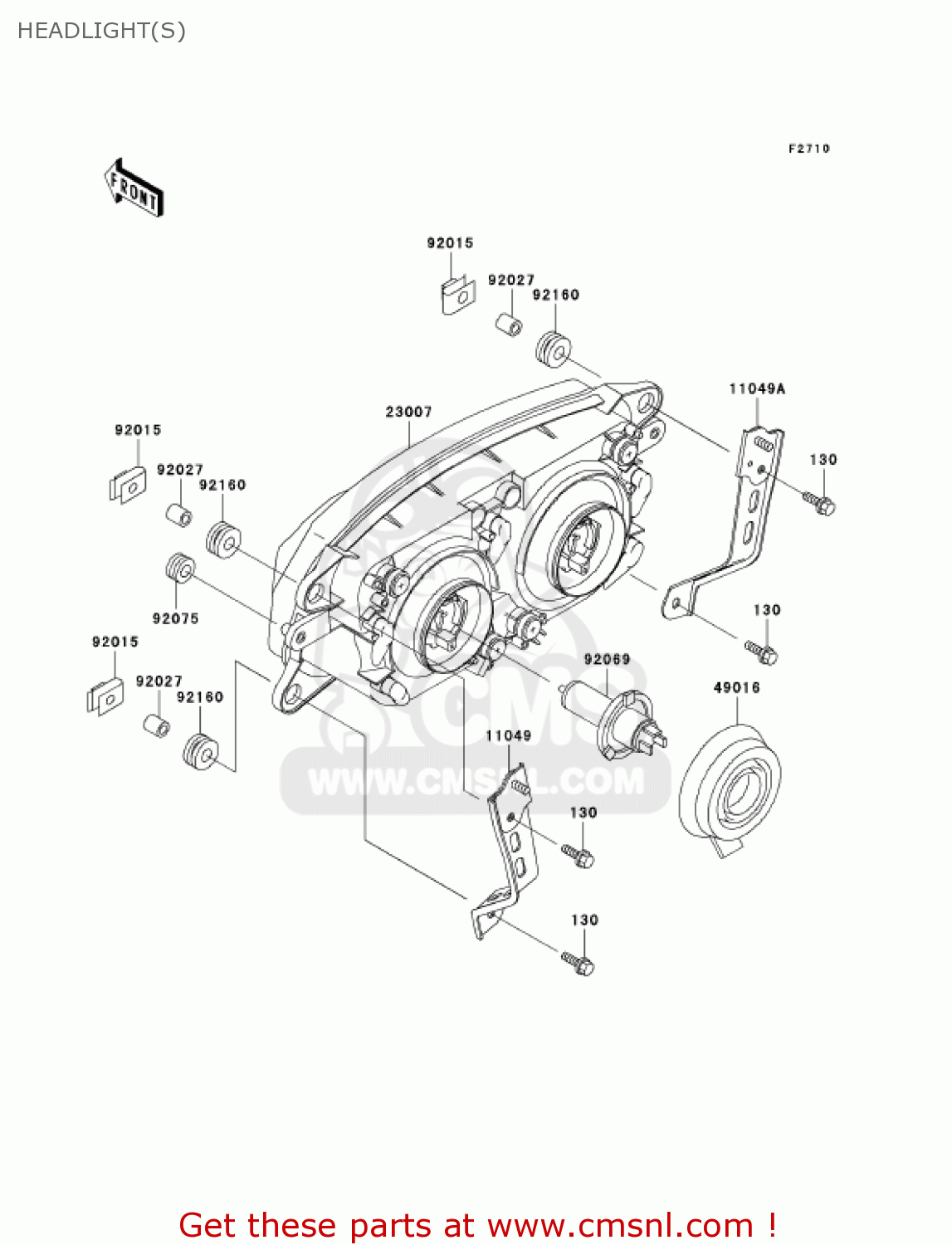

Headlight(s) diagram ZX750P7 NINJA ZX7R 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

11049

110491340
ref: 11049

BRACKET,HEAD LAMP,LH

€ 16.00

11049A

110491341
ref: 11049A

BRACKET,HEAD LAMP,RH

€ 19.00

23007

230071376
ref: 23007

LENS-COMP,HEAD LAMP

€ 442.50

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

920691104
ref: 92069

BULB,12V 45/45W,H4

€ 33.00

92075

920751912
ref: 92075

DAMPER

€ 3.50

92160

921601162
ref: 92160

DAMPER

€ 3.00
