SEAT

ZX750P3 NINJA ZX7R 1998 USA CALIFORNIA CANADA

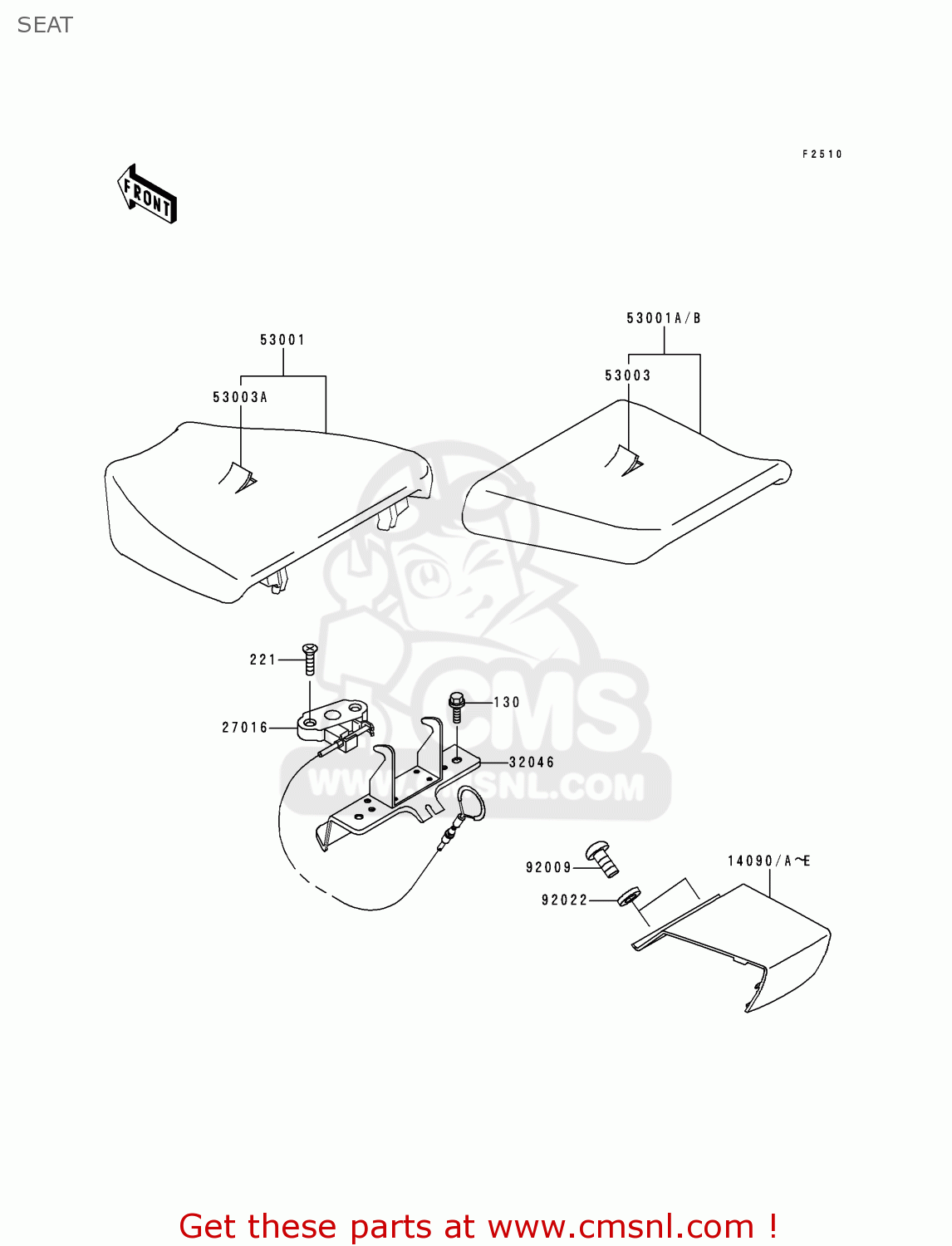

Seat diagram ZX750P3 NINJA ZX7R 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0616
ref: 130

BOLT-FLANGED,6X16

€ 1.50

221

221B0620
ref: 221

SCREW-CNTSNK HD,6X20

€ 0.50

14090C

14090163320
ref: 14090C

COVER,TAIL,CNT,P.P.BL

€ 30.00

14090E

1409016337F
ref: 14090E

COVER,TAIL,CNT,L.GREE

€ 34.50

27016

270161107
ref: 27016

LOCK-ASSY,SEAT

€ 59.00

32046

320461420
ref: 32046

BRACKET-SEAT

€ 33.50

53001

530011792MA
ref: 53001

SEAT-ASSY,FR,BLACK

€ 248.50

53001B

530011833MA
ref: 53001B

SEAT-ASSY,RR,BLACK

€ 256.00

53003

530031245MA
ref: 53003

LEATHER,REAR SEAT,BLA

€ 71.00

53003A

530031345MA
ref: 53003A

LEATHER,FRONT SEAT,BL

€ 99.50

92009

920091654
ref: 92009

SCREW

€ 0.50

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50
